Insulated Wire Making Machine Plastic Extruder

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, UL, RoHS, ISO, CE
  • Warranty：12 Months
  • Screw：Single-Screw
  • Usage：Use for Conductor Single-Layer Insulation Extruder

Base Info

  • Model NO.：XJ30,40,50,60
  • Wire Size：AWG38-24
  • Highest Output：20kg-50kg,H
  • Highest Wire Speed：350-600m,Min
  • Capstan Power：3HP
  • Length of U Water Tank：9m
  • Precision：High Precision
  • Demoulding：Automatic
  • Heating System：Electric
  • Function：High Temperature Resistance
  • Automatic Grade：Automatic
  • Customized：Customized
  • Transport Package：PE Film + Wooden Pallet
  • Specification：XJ-30,50,60
  • Trademark：NEWTOPP
  • Origin：Dongguan City, Guangdong Province, China
  • HS Code：8479400000
  • Production Capacity：6 Sets,Month

Description

Basic Info.

Model NO. XJ30/40/50/60 Wire Size AWG38-24 Highest Output 20kg-50kg/H Highest Wire Speed 350-600m/Min Capstan Power 3HP Length of U Water Tank 9m Precision High Precision Demoulding Automatic Heating System Electric Function High Temperature Resistance Automatic Grade Automatic Customized Customized Transport Package PE Film + Wooden Pallet Specification XJ-30/50/60 Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

Insulated Wire Making Machine Plastic Extruder:

Widely Usage: Use for conductor single-layer insulation/Chemical foam-skin double-layer/striping extrusion.

Large capacity: Optimzing screw design, srew durable, non cohesive glue, non take off chrome, color change quickly, high wire speed, high output.

High quality: Extrusion concentricity: over 93% OD tolerance:+/-0.005mm, capacitance value:+/-0.5PF

Temperature control precise: Adopt SCR power control machine with imported high quality temperature control table, the machine temperature controlled with+/-1°C.

Easy control: Intelligent control, capacitance and wire diameter auto-feedback and adjustment, the first company in China which can do that. Hommization machine design combined with NewTopp specialized touch screen. Make machine operation easier and convenient.

Save place: Change traditional accumulator, capstan, take-up, meter-counter, Sparker and other auxiliary equuipment into overall structure, layout compact, overall length will be reduce more than 5m.

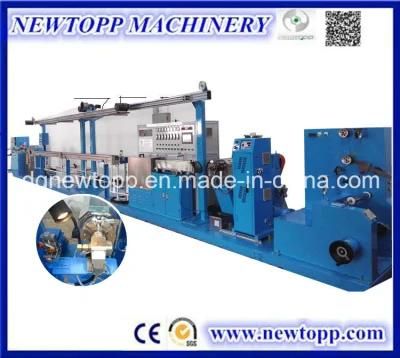

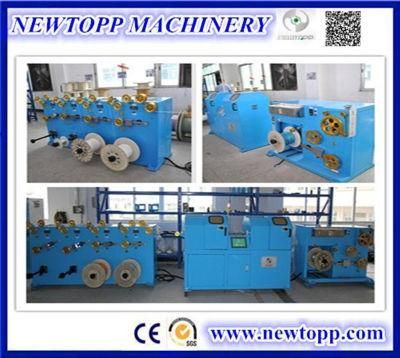

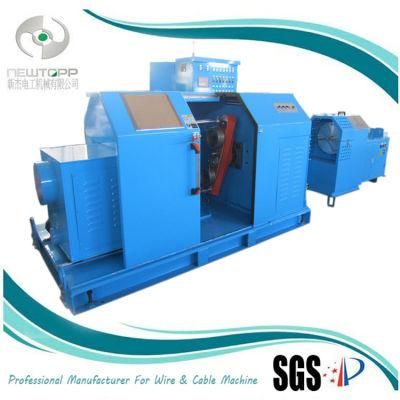

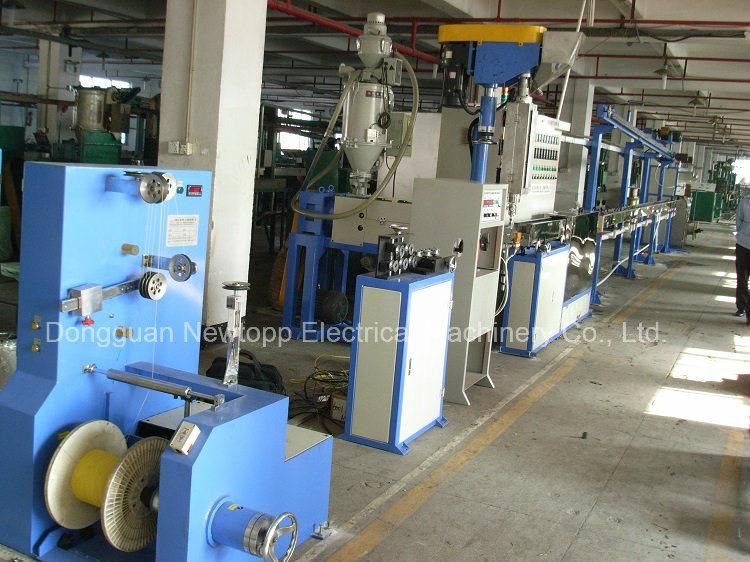

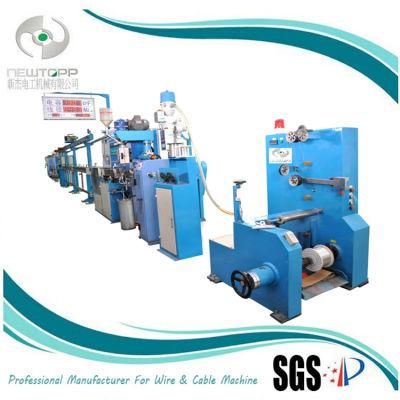

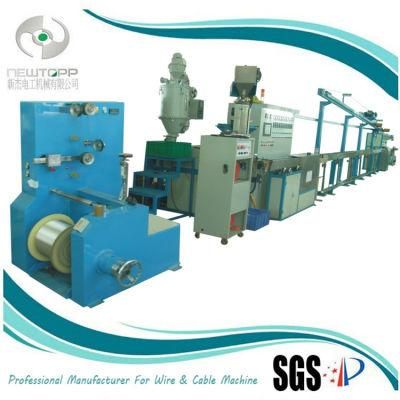

Products Show As below:      Insulated Wire Making Machine Plastic Extruder
