• Model NO.：WIND-90-CWI
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-90-CWI Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

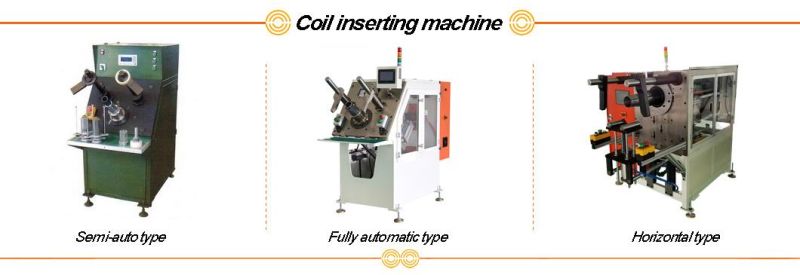

AC Motor Stator Coil Winding Inserting Machine

This winding inserting machine is used to do stator coil and wedge inserting.All the parameter of feeding length, cutting, forming, inserting slot number can be programmed on touch screen. The primary qualification rate for copper wire should reach 98.5%, up to 99.5% after rework.

(1) Application
This type of machine is suitable for various types of AC motor, induction motor stators.

(2) Specification

Stack length	Max 120mm
Stator ID	20~100mm
Stator OD	Max 160mm
Tooling stroke	Max 70mm
Suitable wire material	Copper/Aluminium wire
Slot number	8~48slots
Power supply	380V 50/60HZ
Weight	850KG
Dimension	1850x650x1700mm

(3) Feature
Wide application
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required
