• Model NO.：XJ40+30
• Specification：XJ40+30
• Trademark：Newtopp
• Origin：China
• HS Code：8477209000
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ40+30 Specification XJ40+30 Trademark Newtopp Origin China HS Code 8477209000 Production Capacity 200sets/Year

Product Description

Application field:
Used for conductor single-layer insulation extrusion/chemical foam-skin double-layer/striping insulation extrusion.

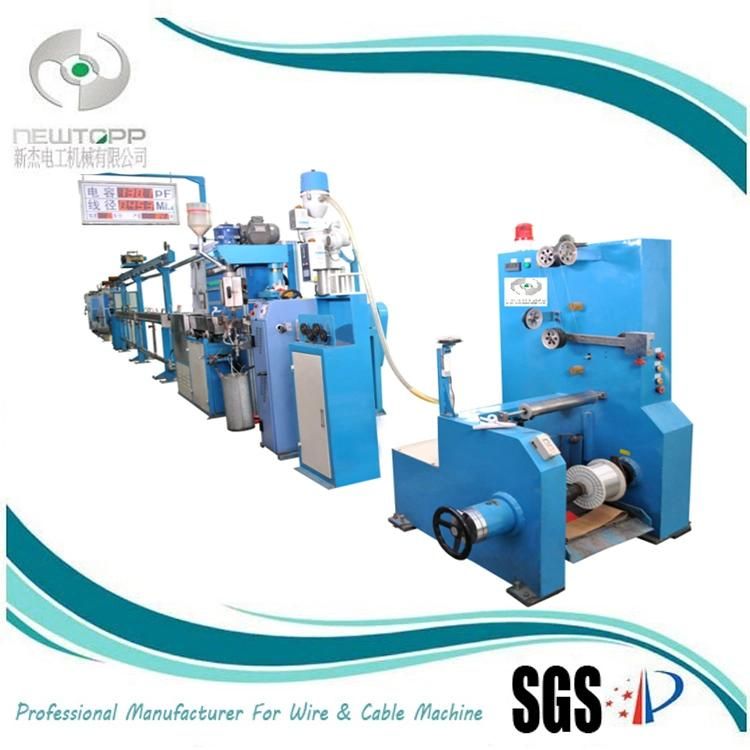

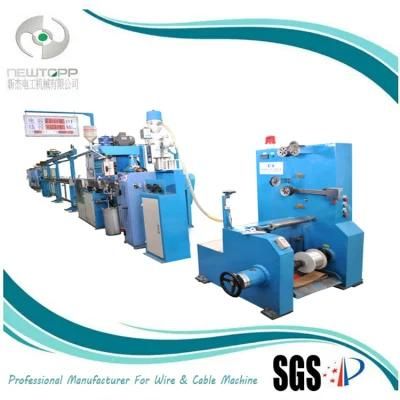

Machine technical feature
Used widely:Used for conductor single-layer insulation/Chemical foam-skin double-layer/striping extrusion.

High output:Optimizing screw design,screw durable,non cohesive gel,non take off a chrome,color change quickly,high wire speed,high output.

High quality:Extrusion concentricity:over 93% OD tolerance:+/-0.005mm,capacitance value:+/-0.5PF

Temperature control precise:adopted SCR power control machine with imported high quality temperature control table,the machine temperature controlled within +/-1ºC

Easy control:Intelligent control,capacitance and wire diameter auto-feedback and adjustment,the first company in China which can did that.hommization machine design combined with NEWTOPP specialized touch screen,make machine operation more easier and convenient.

Save place:Change the traditional accumulator,capstan,take-up,meter-counter,sparker and other auxiliary equipment into overall structure,layout compact,overall length will be reduce more than 5m.



Machine parts

No.	Parts name&Specs.	Qty
1	ø300-500mm precise active pay off	1set
2	Fully automatic high frequency copper wire preheater	1set
3	Straightening tool box	1set
4	Ø40mm host extruder+ø30mm auxiliary extruder	1set
5	Electrical control cabinet	1set
6	U7 skin-foam double layer extrusion crosshead	1set
7	4M movable cooling water tank	1set
8	18M single layer cooling water tank	1set
9	12M high precision horizontal accumulator	1set
10	ø318 dual wheel capstan +500 double-axis take-up machine	1set
11	Laser diameter tester (Online)	1set
12	BETA water capacitance measure instrument	1set
13	Taiwan Tontek high frequence spark tester	1set

Main parts brand
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens



Our Service
 Pre-Sales Service                          After-Sales Service
* Inquiry and consulting support.     * Training how to install and how to use the machine
* Customized design support.          * Engineers available to service machinery overseas.
* View our Factory.


About us
Company introduction


Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.


Our products

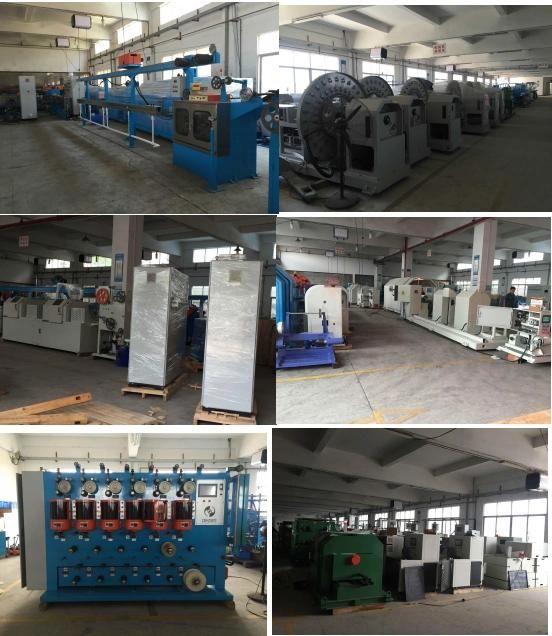

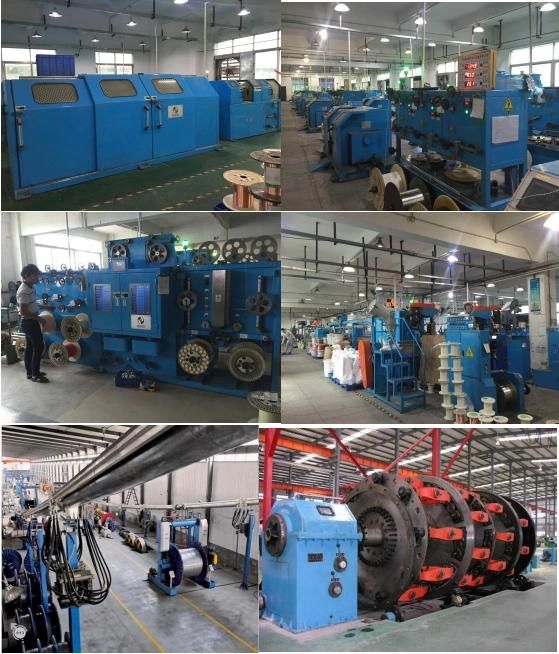

Products in client site






Certification and Patent






Contact us

Contact person: Owen Zeng
Mob:+86-17390410655



DongGuan Newtopp Electrical Machinery Co.,Ltd.
http://dgnewtopp.en.made-in-china.com
Tel.:+86-769-85372062   Fax:+86-769-85340833
Add.:No.286, Huaide Road, Humen Town,Dongguan City, Guangdong Province.
