1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：380V
  • Warranty：1 Year
  • After-sales Service：Overseas Service Center Available
  • Name：Stator Coil Winding Machine
  • Winding Speed：50-1100rpm
  • Power：380V

Base Info

  • Model NO.：ND-SW03
  • Weight：350kg
  • Dimension：700X900X1650mm
  • Machine Color：Ral9010 or as Per Customer Requirement
  • Automatic：Automatic
  • Certification：CE
  • Transport Package：Wooden Case
  • Specification：ISO9001
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description

Wire dia.:0.15-0.7mm(can be customized)Winding speed:50-1100  r/minWinding method:three needle windingStack- length:5-60mmStator ID:10-50mmStator OD:30-80mmAir pressure:0.5MPa~0.7 MPaPower:380V/50HZ,  three phase four wiresTotal power: 8.5 KWDimension:700*900*1650mm Wegit: ≈ 350 Kg

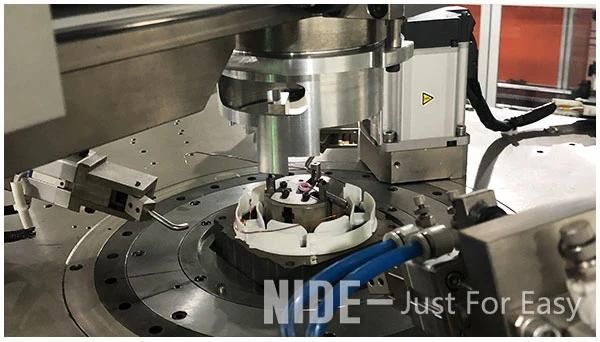

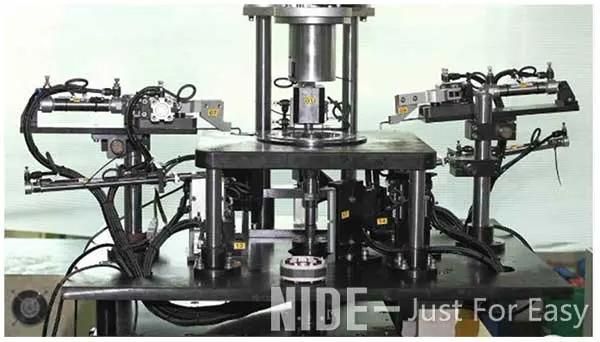

1.BLDC needle winding machine Picture show
1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine

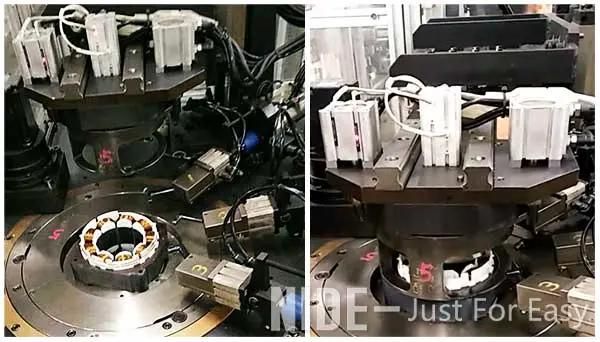

2.The bldc winding machine show
1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine
3.The bldc stator winding machine show
1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine

1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine
1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine
1100 Rpm BLDC Motor Stator Three Needles Coil Winding Machine
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
