• Model NO.：TOP350
• Voltage：220V
• Lead Time：15days
• Melting Time：80min
• Power Supply：3pH 380V 50Hz
• Transport Package：Vacuum Packed in Wooden Cases
• Specification：4500*1420*1750mm
• Trademark：JAGUAR
• Origin：Shenzhen, China
• HS Code：8515190000
• Production Capacity：100PCS,Mounth

Basic Info.

Model NO. TOP350 Voltage 220V Lead Time 15days Melting Time 80min Power Supply 3pH 380V 50Hz Transport Package Vacuum Packed in Wooden Cases Specification 4500*1420*1750mm Trademark JAGUAR Origin Shenzhen, China HS Code 8515190000 Production Capacity 100PCS/Mounth

Product Description

Product Description

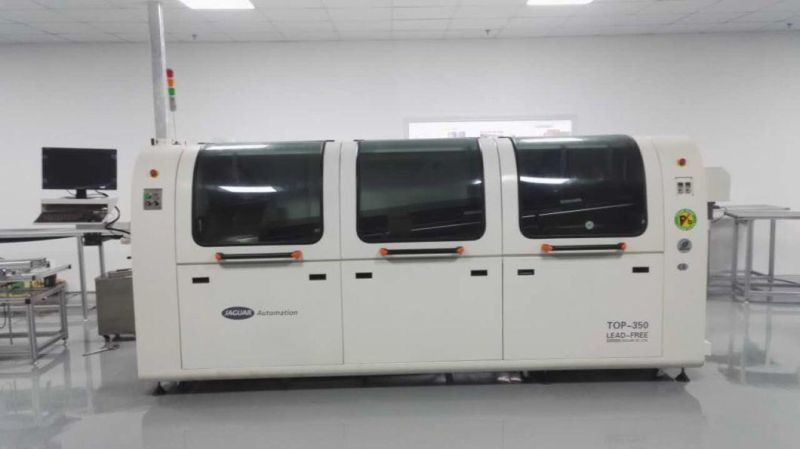

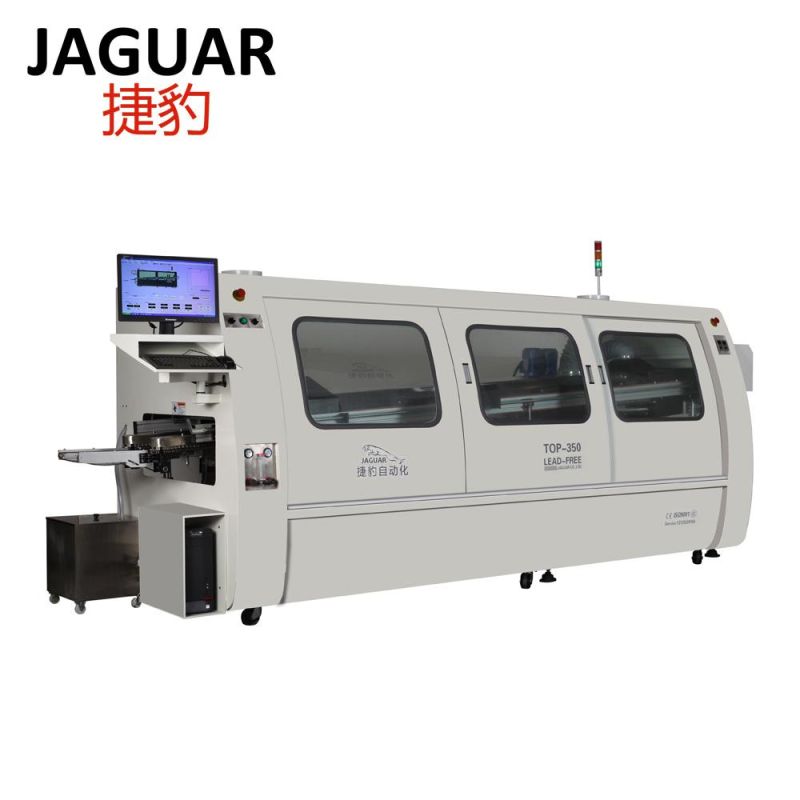

 Best price/used/second hand SMT wave soldering machine



INTRODUCTION:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by step motor. PLC controlled, accurate and reliable.
4. Preheating system uses four independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
5. Titanium solder fingers, high strengthened double v-groove with tin resistant
6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.
8. PID close loop controlled hot air pre-heaters
9. Timer startup feature for solder pot, solder melted in within 90 minutes.
10. With black box memory function, the machine can always store the SPC data, improve work efficiency.
11. Automatic finger cleaner equipped.
12. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.
13. Nitrogen Structure (optional): High accuracy Oxygen analyzer, Nitrogen consumption of 16m3/hr based on 1000ppm.
Specification:


Model No.	JAGUAR Top-350
Number of heating zones	4
Length of heating zones	2000mm
Total/steady consumption	30KW/8-11KW
Air supply	0.5MPa
Preheating style	Hot air
Preheating consumption	220V 8KW
Control method	PC +PLC
Range of temp. set-point	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder Application	Lead-free
Solder pot capacity	400KG
Solder pot temperature	300ºC
Solder pot material	Cast Iron Ceramic Coating
Heater consumption	380V 8KW
Solder temp. control method	PID+SSR
Wave motor consumption	1KW 220V
Wave height Control	Inverter
Solder melting time	About 180mins for setting 250ºC
PCB width	60-450mm
Product clearance	Top 120mm(option 160mm) Bottom 15mm
Conveyor  speed	0-2000mm/min
Process height	750+/-20mm
Conveyor  direction	L→R (R→L optional)
Conveyor Inclination	4-7 º
Process width adjustment	Auto
UPS	Option
Nitrogen structure	Option
Flux pressure/capacity	3-5 bar/6.5L
Weight	1100KG
Power Requirement	3P5W,380/220V 50Hz 63A
Dimensions	4300(L)*1400(W)*1560(H)

Certification:


FAQ:

 1) This is the first time I use this kind of machine, is it easy to operate?
 There is english manual or guide video that show you how to use machine.
  If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

 2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
  If it exceeds 0.5KG, you need to pay the postage.

 3) MOQ ?
 1 set machine, mixed order is also welcomed.

 4) How can I buy this machine from you? ( Very easy and flexible !)
  A. Consult us about this product on line or by e-mail.
 B. Negotiate and confirm the final price , shipping , payment methods and other terms.
 C. Send you the proforma invoice and confirm your order.
 D. Make the payment according to the method put on proforma invoice.
 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
 And 100% quality check before shipping.
 F.Send your order by air or by sea.

 5)Why choose us ?
 A. Gold supplier on Alibaba !
 B. Trade assurance to US$54,000 !
 C. Best price & Best shipping & Best service !
