• Model NO.：TP38v
• Type：Medium-speed Chip Mounter
• Max Size of The PCB：300 200mm
• Speed of Mounting：300-700cph
• Component：Above 0603
• Short with Feeder：8mm, 12mm, 16mm, 24mm Feeder
• Quantity of IC Dick：2 PCS
• Weight：126kg
• Size：1000 *1160 *720mm
• Power：220V 50Hz
• Transport Package：Wooden Package, 1 Set,Package, About 650kg
• Specification：710 610 *475mm
• Trademark：Torch
• Origin：China
• HS Code：8479896200
• Production Capacity：20,Month

Basic Info.

Model NO. TP38v Type Medium-speed Chip Mounter Max Size of The PCB 300 200mm Speed of Mounting 300-700cph Component Above 0603 Short with Feeder 8mm, 12mm, 16mm, 24mm Feeder Quantity of IC Dick 2 PCS Weight 126kg Size 1000 *1160 *720mm Power 220V 50Hz Transport Package Wooden Package, 1 Set/Package, About 650kg Specification 710 610 *475mm Trademark Torch Origin China HS Code 8479896200 Production Capacity 20/Month

Product Description

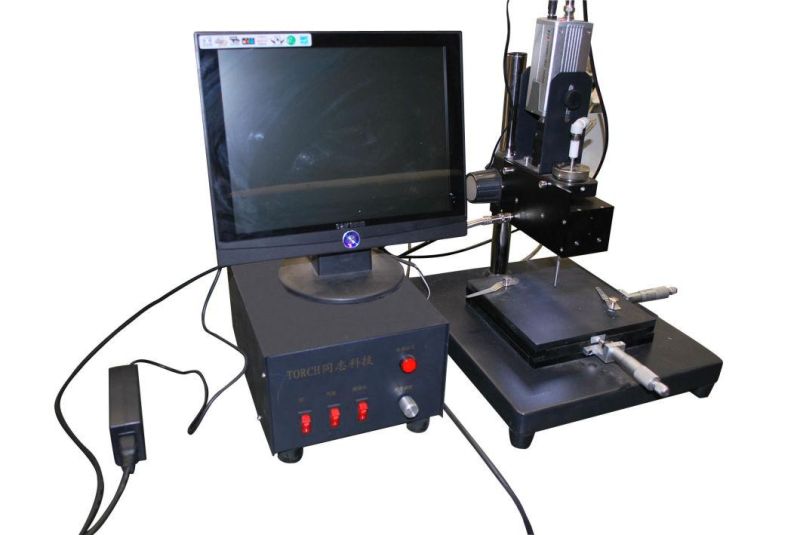

Torch Medium Speed Manual Chip Mounter for Torch TP38V





1. The main feature:Adopted high precision guide ,can make sure the mounting precision.Adopted vision program, easy to finish component position.Configured with industrial computer and professional software.Can change the nozzle according to different component by hand.TP210+ is suit for small electronics company, scientific research and personnel usage. Specially for small and middle production .The main feature of software :
   1. Can input the CAD data of PCB as the mounting data to automatic program , no need input the component coordination by hand. It very convenient for anyone to operate.Can finish the programming and mounting of panel-PCB stably and easily.Can display the all coordination of panel-PCB and make micro adjusting to realize the precision mounting. Can set up the space between panel-PCB and display all placing coordination according the spaces ,also can choose the panel-PCB ,which not mount .If there are some process quality problem ,the software can correct it through overall migration improved to make sure the repeated precision.The software can inspect the move limit of X,Y,Z axis .The software have 6 type of speed , can find out the best speed in the movement diagram and set up the speed, which can improve the stability in long time usage.
   Standard accessories:

1. industrial computer ----1 set mount heat---- 1 setvacuum nozzle----2 pcsDiaphragm pumps---- 1 pc

1. Optional accessories :

1. CF electronic smart feeders : 8mm ,12mm,16mm Vacuum nozzle.Air pump UPS

Technology Parameters:

Item	TP210+
Max size of the PCB	300× 200mm
Max size of the moving	380× 350mm
Max range of z-axi moving	10mm
Speed of mounting	300-700cph
Expected max speed of mounting	700cph
precision	± 0.15mm
Position way	Vision position
component	Above 0603
program	Automatic data import / video learning / keyboard input
Transmission	XY-axis high precision ball screw with precision guide
Tape feeder	Optional 8mm, 12mm, 16mm, 24mm feeder
Short with feeder	8mm, 12mm, 16mm, 24mm feeder
Quantity of feeder
Quantity of IC dick	2 pcs
Operation system	WINDOWS XP
Compressed air	80psi(0.5Mpa), flue no more than100L/min
Power supply	220V, 50Hz,
weight	126Kg
size	1000 *1160 720mm
