High Speed Wire Cable Extrusion Line

Golden Technologies Wire & Cable Equipment Company Limited
  • Driven Type:Electric
  • Condition:New
  • Certification:UL, ISO, CE
  • Warranty:12 Months
  • Screw:Single-Screw
  • Motor:Siemens

Base Info

  • Model NO.:GT-90+60MM
  • Bearing:Japan-NSK
  • Inverter:Siemens
  • Control System:PLC Control
  • Screw Material:38crmoala with Nitrided Surface
  • Electric Element:Siemens and Omron
  • Line Speed:1200m
  • Transport Package:Wooden Packing or PE Film Simple Packing
  • Specification:International Standard
  • Trademark:GOLDEN TECHNOLOGIES
  • Origin:China
  • HS Code:84772090
  • Production Capacity:4sets, Month

Description

Basic Info.

Model NO. GT-90+60MM Bearing Japan-NSK Inverter Siemens Control System PLC Control Screw Material 38crmoala with Nitrided Surface Electric Element Siemens and Omron Line Speed 1200m Transport Package Wooden Packing or PE Film Simple Packing Specification International Standard Trademark GOLDEN TECHNOLOGIES Origin China HS Code 84772090 Production Capacity 4sets/ Month

Product Description

(1)APPLICATION:
Extruders are mostly used for various wire & cable high speed insulation sheathing stripping; single color, skin, single Color stripping and layer extruded together, double stripe,color stripping or skin coating available by using different crossheads.

It is mainly for the extrusion of PVC, PP, PE, XLPE,HFFR, material;It's used for the solid wire (0.22-4mm) and stranded wire (0.22-10mm),mainly applied in building wire, electronic wire, etc.

- Line axis height: 1000mm
- Machine color: Based on customer's requirement
- Machine direction: Based on customer's requirement
- Power: 3P/ 400V / 50Hz( based on customer's requirement )

(2)FEATURES:
- BIG CAPACITY
- Max.Speed:1200M/S
- Color stripping and layer extruded together
- European crosshead, concentricity guaranteed
- Equipped with sealed circulation control system
- Auto-adjust insulation thickness.
- Dual flyer pay off, non-stop
- CNC software+IPC,PLC control
- Optional: fast color change system
High Speed Wire Cable Extrusion Line

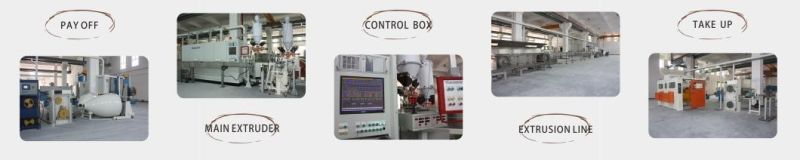

(3)COMPONENTS:
DescriptionQuantityNote
Pay off stand1630mm
Dancer1
Main extruder190mm
Co-extruder160mm
loader & dryer2
Crosshead1
Moving trough + single layer1
Main cooling trough1
Water wiper1
Diameter controller2
Mark printer1
capstan1
Spark tester115KV
Meter counter1
Take up1800mm
Control box1PLC + touch screen; Master control possible;


(4)ABOUT US
1. We produce all kinds of cable / wire making / processing equipment and accessories.
2. We are the leading manufacturer of  any kinds of complete wire and cable extrusion line in China since 2004.
3. We supply Site service: Install / debug / repair
4. Our machine has exported to over 60 different countries,like Germany,Poland,Italy,Russia,etc.
5. We electrical parts are used the international qualified brand, like Siemens, ABB, etc.
High Speed Wire Cable Extrusion Line

(5)HOW TO REACH OUR FACTORY:
1.Only 35 minutes from Guangzhou city to Dongguan city by high speed train.
2.Just 40 minutes from Shenzhen city to Dongguan city by high speed train.
3.Total 1.5 hours by car from Guangzhou airport to our factory .
4.Only 1 hour by car from Shenzhen airport to our factory.
