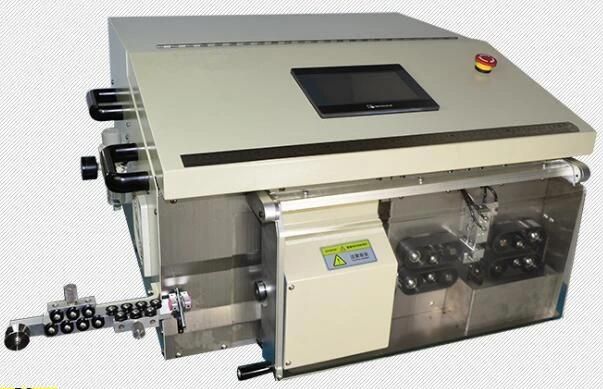

Semi-Flexible Coaxial Cables Cutting and Stripping Machine
Kunshan Yuanhan Electronic Equipment Co., Ltd.- After-sales Service：24th
- Driven Type：Electric
- Condition：New
- Certification：RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：YH-9600S
- Function：Stripping
- Application：Coaxial Cable
- Cutting Length：65~999mm
- Voltage：AC110,220V,50,60Hz
- Air Pressure：3-7kg,Cm2 (0.4-0.6MPa)
- Processing Cable Diameter：1.0-5.5mm
- Maximum Skinning Length：20mm
- Cutting Depth Unit：0.01mm
- Peeling Precision：Left Side: 40mm, Right Side: 92mm
- Transport Package：Double-Layer Export Carton
- Specification：920*220*400mm
- Origin：China
- HS Code：8479819000
- Production Capacity：L=100mm, 700-1000PCS,H
Description
Features:
1. Chinese and English switching display
2. The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3. Make both ends semi-stripping and twisting.
4. Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.
Processing Capabilities: Cutting to length, Full strip,
Half strip, precision cut

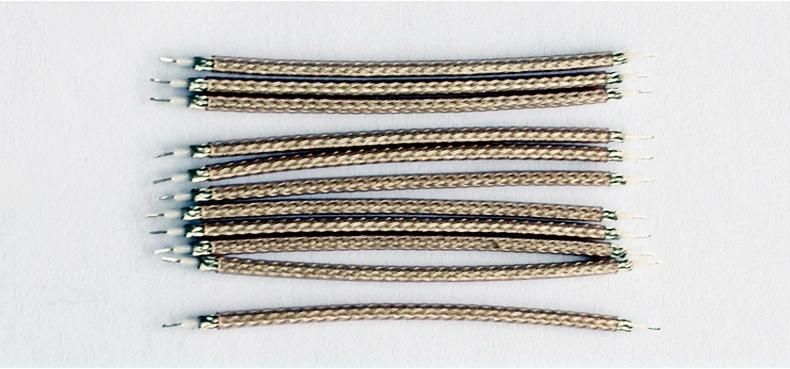

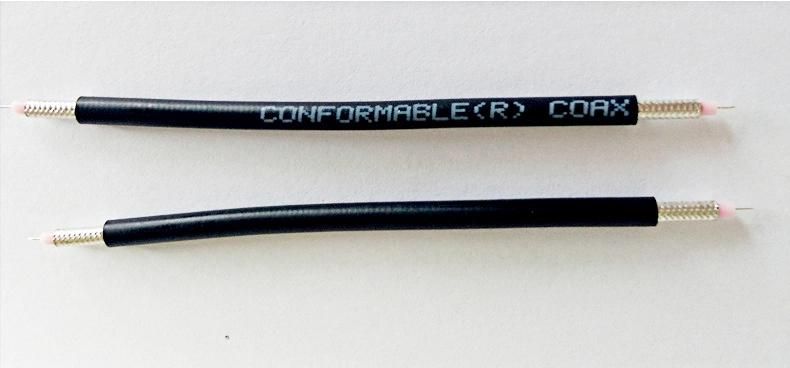

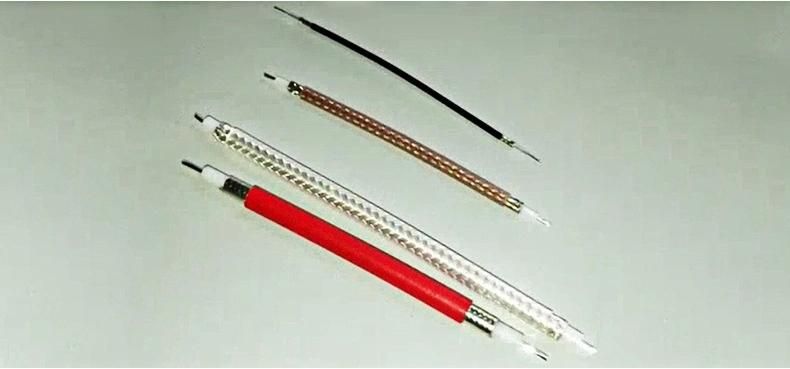

Sample: cut and strip wire automatically
Other Model
If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden
Any questions, please feel free to contact us ! Thank you !
