Manufacturing Equipment for Electrical & Electronic Product

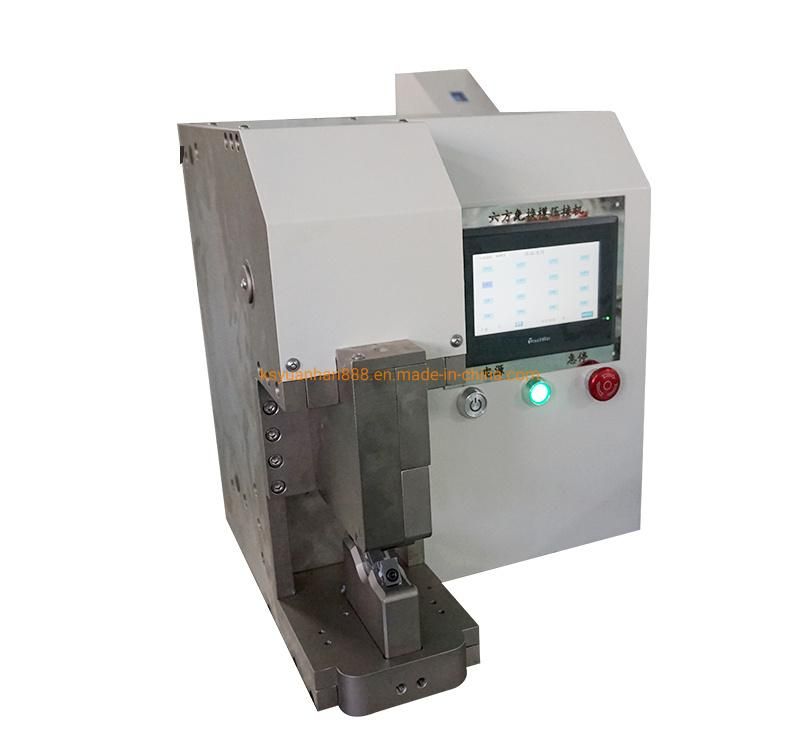

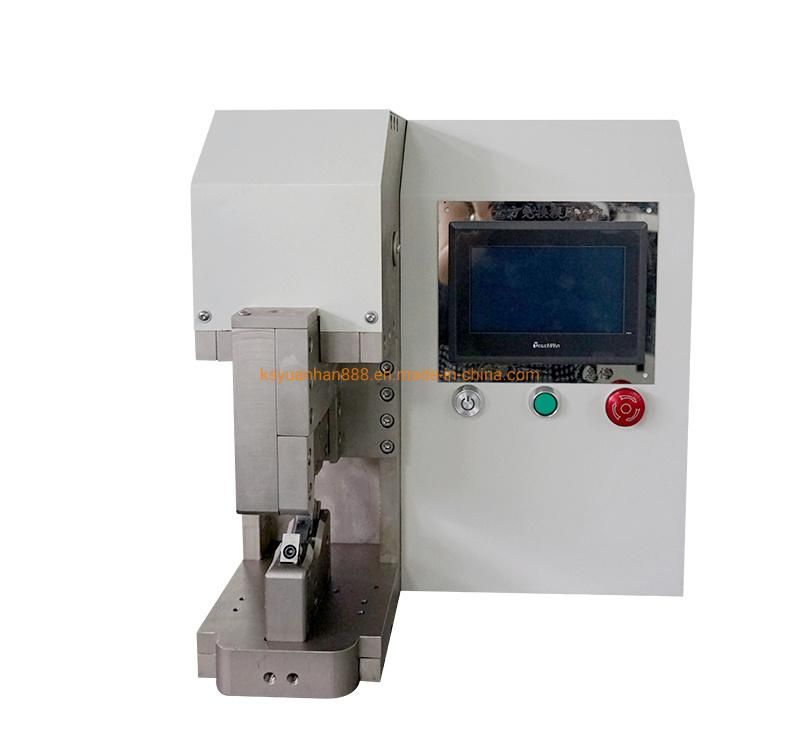

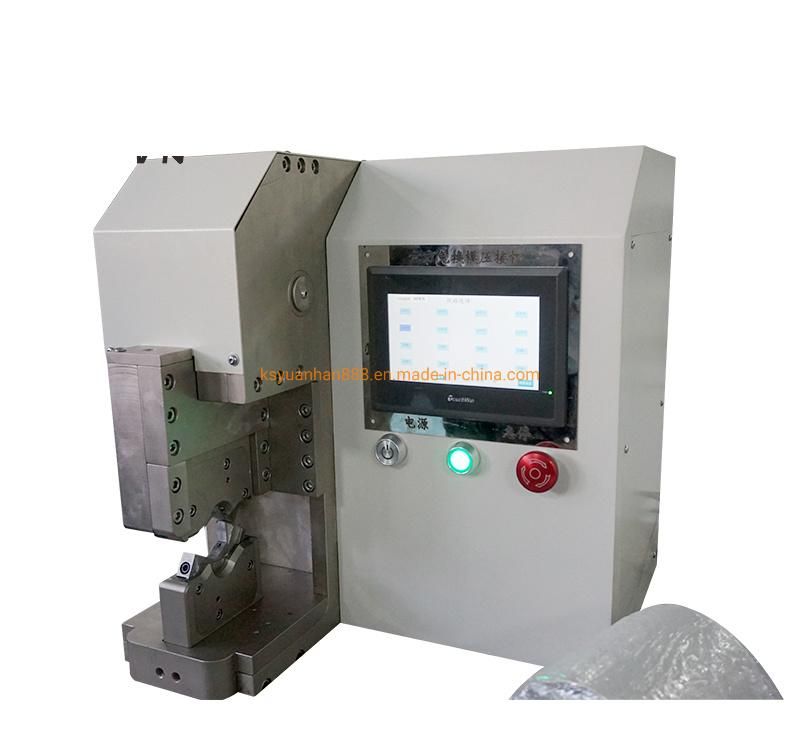

Yh-6wc Hexagon Edge Cable Crimping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • Driven Type:Pneumatic
  • Condition:New
  • Certification:CE
  • Warranty:12 Months
  • Automatic Grade:Semiautomatic
  • Model No:Yh-6wc

Base Info

  • Model NO.:YH-6WC
  • Crimping Force:200kn
  • Power:2.3kw
  • Max. Wire Diameter:38mm
  • Wire Size:10-120mm2
  • Dimension:70*86*126cm
  • Weight:160kg
  • Transport Package:Wooden Case
  • Specification:56*52*52cm
  • Trademark:YH
  • Origin:China, Kunshan
  • HS Code:8479819000
  • Production Capacity:100PCS,Month

Description

Basic Info.

Model NO. YH-6WC Crimping Force 200kn Power 2.3kw Max. Wire Diameter 38mm Wire Size 10-120mm2 Dimension 70*86*126cm Weight 160kg Transport Package Wooden Case Specification 56*52*52cm Trademark YH Origin China, Kunshan HS Code 8479819000 Production Capacity 100PCS/Month

Product Description

Servo Motor Cable Connector Crimping Machine


This hexagon edge cable crimping machine is suitable for crimping of non-standardized terminals and compression type terminals with no need to change die set. Applicable wire range: 10-120mm².
  • Suitable for non-standardized terminals and compression type terminals

  • No need to change die set, servo control system, high accuracy

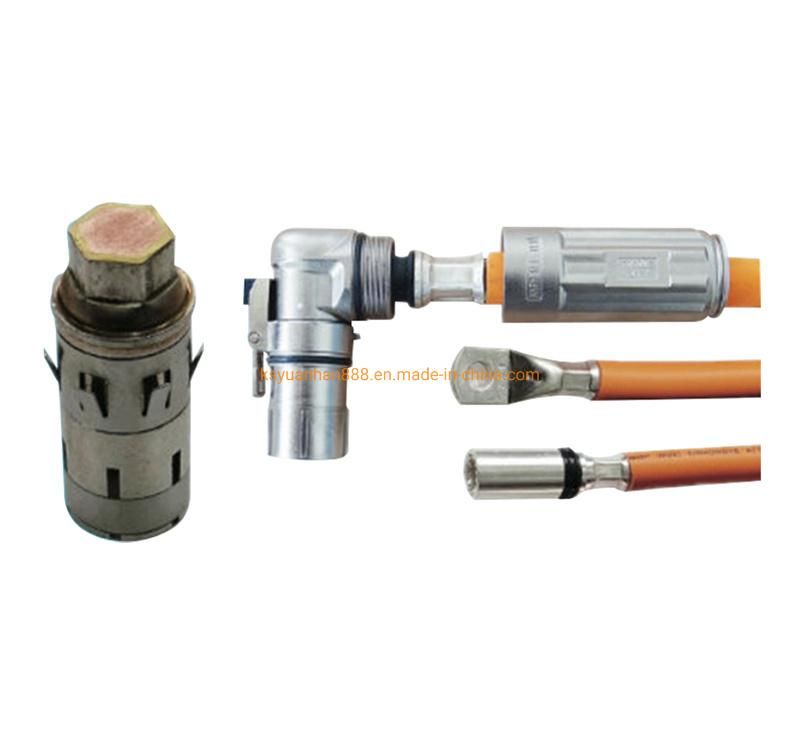

  • Separated crimping interface, suitable for intermediate junction, and new energy right angle terminal crimping

  • Position adjustment is possible, and the field of view is clearer

  • Compact structure, space saving and low noise

  • ModelYH-6WC
    Wire range10-120mm²
    Crimping force200KN
    Max. diameter38mm
    Crimping width12.5mm (Customizable)
    Weight160kg
    Dimension700×860×1260mm
    Power220v50Hz
    Motor2300w

Yh-6wc Hexagon Edge Cable Crimping MachineYh-6wc Hexagon Edge Cable Crimping MachineYh-6wc Hexagon Edge Cable Crimping MachineYh-6wc Hexagon Edge Cable Crimping MachineYh-6wc Hexagon Edge Cable Crimping Machine
Our company show
Yh-6wc Hexagon Edge Cable Crimping Machine
Any inquirys please contact Yuanhan for more details!
