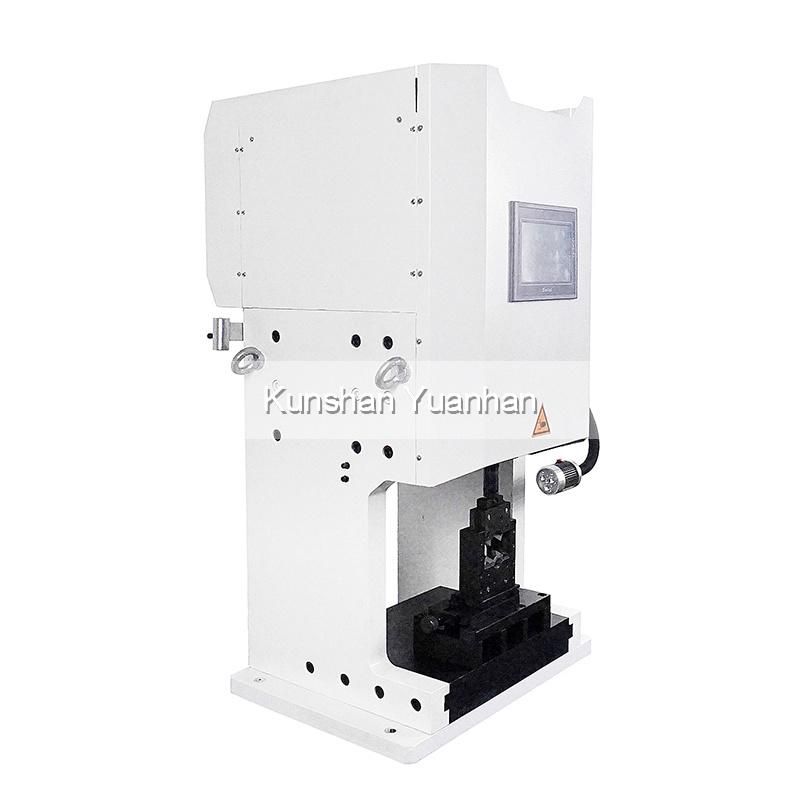

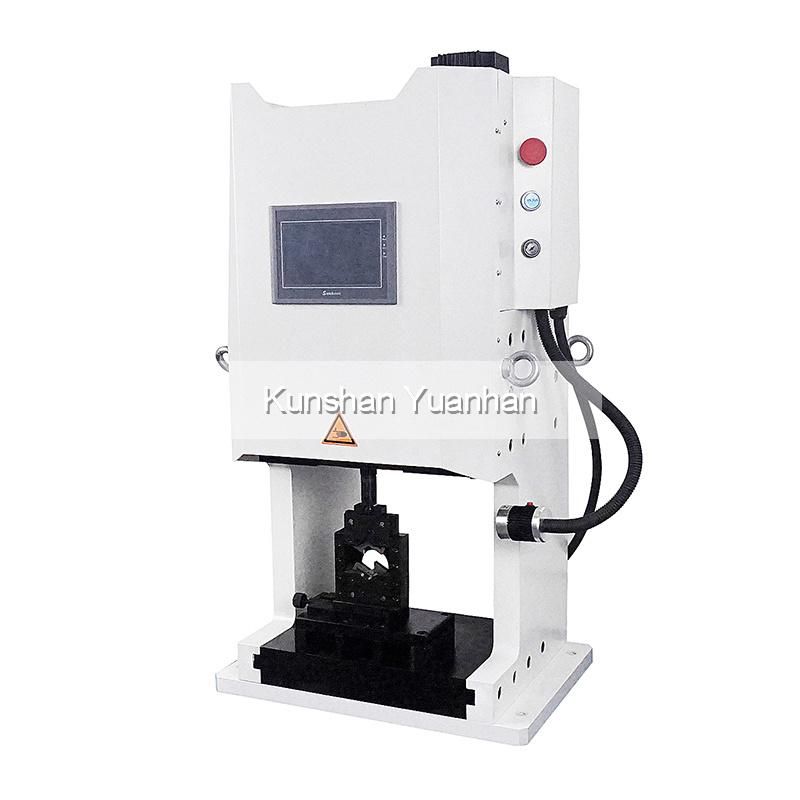

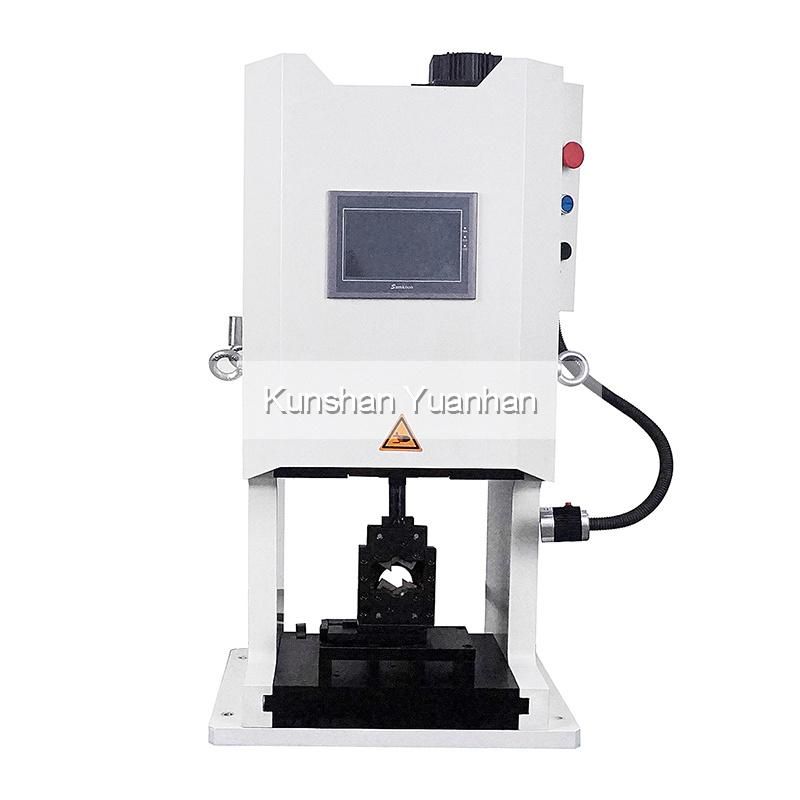

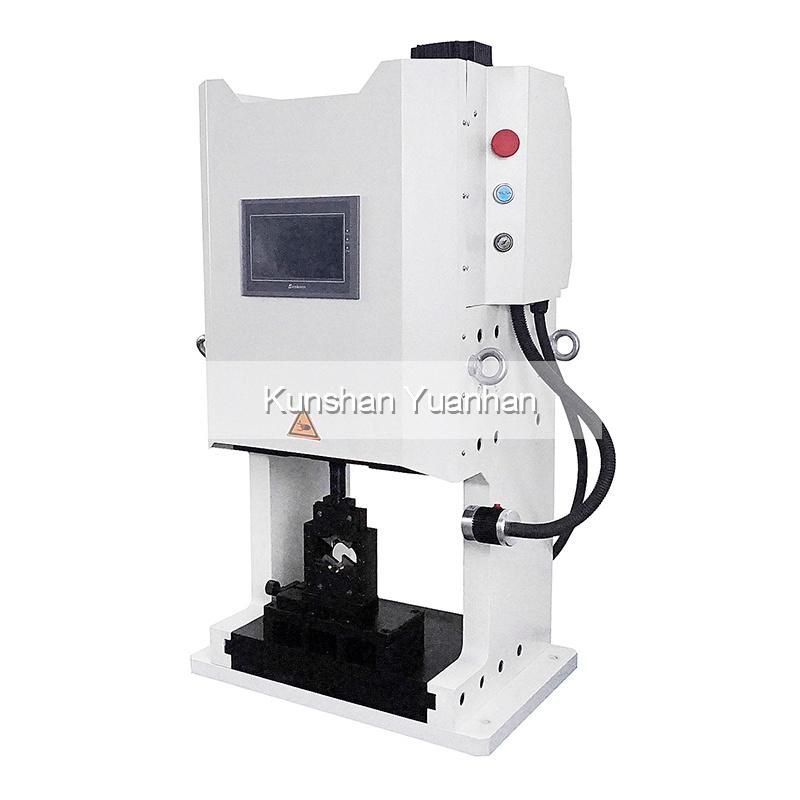

Semiautomatic Hexagon Terminal Crimping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.

After-sales Service：1 Year
Driven Type：Pneumatic
Condition：New
Certification：CE
Warranty：12 Months
Automatic Grade：Semiautomatic

Base Info

Model NO.：YH-SF30T
Model No：Yh-Sf30t
Crimping Force：300kn
Power：7.5kw
Stroke：30mm
Dimension：520*540*1030
Weight：370kg
Transport Package：Wooden Case
Specification：56*52*52cm
Trademark：YH
Origin：China, Kunshan
HS Code：8479819000
Production Capacity：100PCS,Month

Description

520*540*980YH-SF20T40mm5.5KW200KN380KG400*540*1060YH-SF30T30mm7.5KW300KN370KG520*540*1030

Semiautomatic Hexagon Terminal Crimping Machine Our company show

Any inquirys please contact Yuanhan for more details!
