High Speed 2500rpm Numerical Control Vertical Single/Double Layers Taping Machine/Xj500 Double Layers Wrapping Machine for 0.2-0.8mm Wire

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Condition：New
  • Voltage：220V,380V or Others
  • Packaging Material：Standard Shipping Packing
  • Automatic Grade：Automatic
  • Application：Wire and Cable
  • Transport Package：Standard Shipping Packing

Base Info

  • Model NO.：XJ500
  • Specification：XJ500
  • Trademark：NEWTOPP
  • Origin：China
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. XJ500 Specification XJ500 Trademark NEWTOPP Origin China Production Capacity 500sets/Year

Product Description

Application field:


Used for twisted wire and parallel wire double layers/single layer continuously centering wrapping.




Products feature:


Used widely:used for twisted wire and parallel wire double/single layer continuously centering wrapping.

High output:high rotate speed,work rate is 2.5 times than traditional type.

Tension is steady:Automatic tension trace instrument,taping tension keep constant from start to end.Needn't any artifical adjustment.

Wrapping distance accurate;Setting pitch on touch screen,controlled by PLC,wrapping point is steady while it's normal work or accelerate and decelerate.

Good traversing:Take-up traversing adopted axis-row type structure,spacing can be set arbitrary.

High quality:Used for making HDMI,DP,ATA,STAT and such high frequency wire,pass rate 100%.

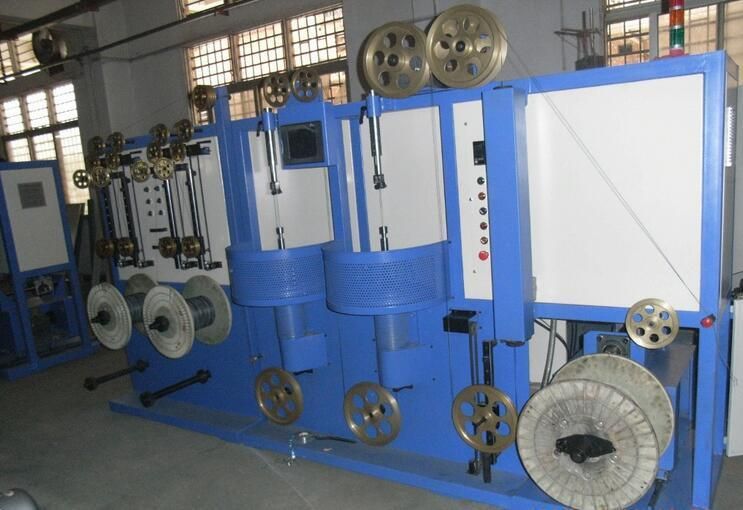

High Speed 2500rpm Numerical Control Vertical Single/Double Layers Taping Machine/Xj500 Double Layers Wrapping Machine for 0.2-0.8mm Wire





Machine parts:


1.Active pay-off rack
2.Wrapping machine
3.Axis row type take-up
4.Capstan device
5.Heating oven control device
6.Electrical control cabinet

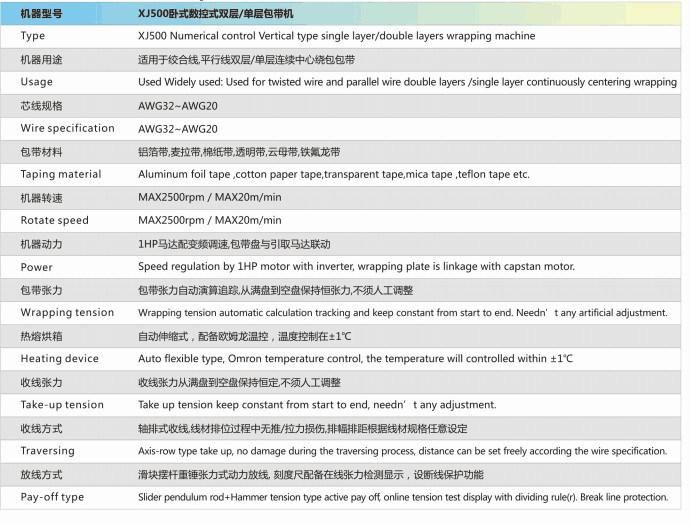

Technical parameters


High Speed 2500rpm Numerical Control Vertical Single/Double Layers Taping Machine/Xj500 Double Layers Wrapping Machine for 0.2-0.8mm Wire



Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.


About us

High Speed 2500rpm Numerical Control Vertical Single/Double Layers Taping Machine/Xj500 Double Layers Wrapping Machine for 0.2-0.8mm Wire

Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
