Introduction:
1. The brand computer and Siemens PLC intelligent control system, high precision temperature              control is ± 1-2 ºC (if the computer crash accident, it can realize off-line work, do not affect                  production) and to ensure that the control system is stable and reliable.
2. Windows XP operating interface with powerful and simple operation.
3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.
4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which            ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT        machine online connection ensure that guide adjustable wide precision and high service life.
5. Automatic control lubrication system and automatic lubrication transmission chain.
6.All heating zone control by computer PID(upper temperature zone and lower temperature zone           implementation independent temperature control, that means it can divide temperature area heat,     in order to reduce starting power)
7. Net/chain transmission by computer to carry out the whole closed loop control, which can meet         different kinds of PCB production at the same time.
8. With fault sound and light alarm function.
9. With leakage protector, ensure that the operating personnel and control system security.
10.The built-in UPS and automatic delay shutdown system guarantee return welder in power or               overheat do not damaged PCB and the machine.
11. The German ERSA world leading microcirculation heating mode, and the upper and lower                   independent air microcirculation system, temperature uniformity and thermal compensation high        efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot            airflow, heat up temperature quickly (about twenty minutes), thermal compensation for high                efficiency, high temperature welding and curing;
12. The upper and lower every temperature zone with independent temperature inductive sensor,           real-time monitoring and compensation every temperature zone balance;

13. Have password administration of the operating system, to prevent the irrelevant personnel                  changes to the process parameters, operation records management traceability process                    parameters change process, improve the management convenient. For storing user existing              temperature speed setting and Settings of the temperature curve, and can be used for all data            and curve printing;

14. Integrated control window, the computer switch, test curve, print curve and data transmission are        easily operation, humanized design. Equipped with three-channel temperature curve online                testing system, may at any time to check welding objects by the actual temperature curve                 (without the other match temperature curve tester);
15. From international technology quick cooling system, use a magnifying glass type efficient rapid         cooling, cooling speed can reach 3.5 ~ 6 ºC/ SEC, management is very convenient; The outer           forced cooling device, ensure that spot crystal effect (Option selected items, the standard                   configuration for forced natural air cooling).

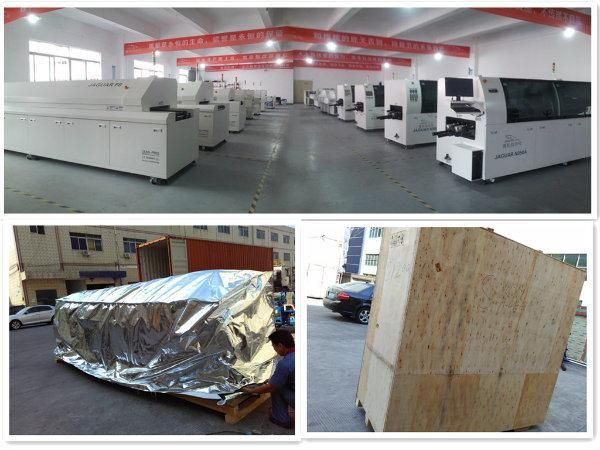

Packaging & Shipping

                          vaccum packing + wood

Our Services

Before buying the product, we will be a comprehensive analysis of the views and requirements and recommend it to the actual needs of customers with the most suitable products and let customers know that the performance characteristics of the selected product referred to in accordance with customers.

In purchasing the products, we promise to allow customers to clearly know the completion of the product. In strict accordance with the relevant provisions of the contract terms of production, delivery, to ensure product intact and in place within the stipulated time to customer requirements.

Product during the warranty period, under normal storage, maintenance, use, if quality problems, responsible for the free repair or replacement, and provide the relevant maintenance knowledge; as a result of improper use or damage caused by the product does not work normally, the Company provides paid service. Product warranty period is not, it will provide a paid service.
