• Model NO.：ND-RX50B
• Aire Pressure：0.5MPa~0.7 MPa
• Automatic：Automatic
• Certification：CE
• Transport Package：Plywooden-Case
• Specification：customized
• Trademark：NIDE
• Origin：China
• Production Capacity：100 Sets,Year

Product name :

Double stations Horizontal BLDC staor needle winding amchine

Wire dia.:

0.15-0.7mm(can be customized)

Winding speed:

50-800  r/min

Winding method:

stator internal needle winding

Stack- length:

5-60mm

Stator ID:

10-50mm

Stator OD:

30-80mm

Aire pressure:

0.5MPa~0.7 MPa

Power:

380V/50HZ,  three phase four wires

Total power:

8.5 KW

Dimension:

700*900*1650mm

Weight :

≈ 350 Kg



BLDC winding machine Picture display :

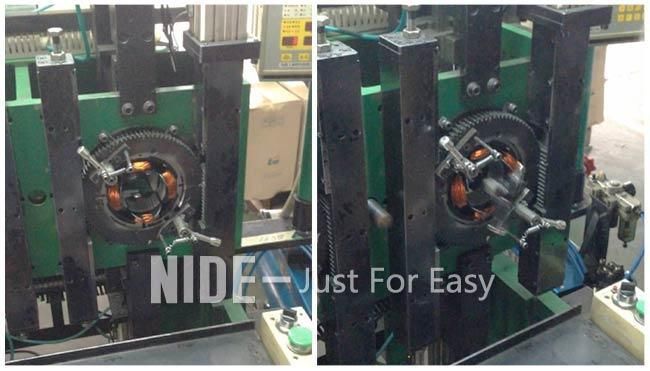

The BLDC motor stator coil winding machine winding process 1

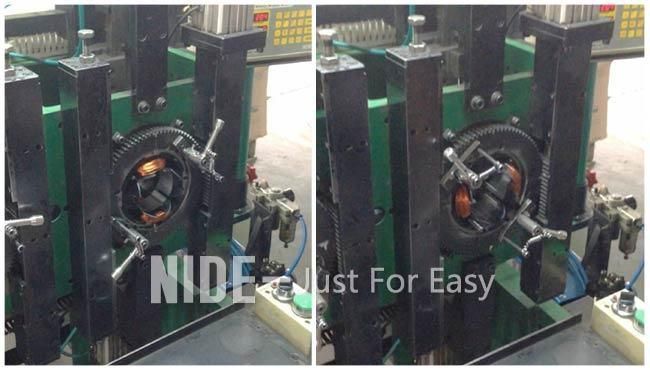

The BLDC motor stator coil winding machine winding process 2

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
