• Model NO.：F10
• Specification：5800*1320*1490mm
• Origin：China
• Production Capacity：30 Sets,Month

Model

Jaguar F10





Heating System

Number of heating zones

Up 10/ bottom 10

Number of cooling zones

2(up 2, bottom 2)

Length of heating zones

3890mm

Heating mode

Hot air

Cooling Mode

Forced air cooling

Exhaust Volume

10m³/min * 2 exhausts











Conveyor System

Max. Width of PCB

400mm

Mesh belt width

450mm

Transmission Direction

L→R(option: R→L)

Transmission Net Height

900±20mm

Transmission type

Mesh and chain

Range of rail width

50-400mm

Conveyor speed

0-2000mm/min

Auto/manual Lubrication

Standard

Fixed rail side

Front rail fixed(option: rear rail fixed)

Components high

Top and bottom 25mm

















Control system

Power supply

5 line 3 phase 380V 50/60HZ

Total power

50KW

Starting power

42KW

Normal power consumption

10KW

Warming time

20 mins

Temp. setting range

From room temp. To 300ºC

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1ºC

Temp. deviation on PCB

±2ºC

Data storage

Process Data and status storage(80GB)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temperature (extra-high/extra-low temperature)

Board dropped alarm

Tower light:

Yellow-warming, Green-normal, Red-abnormal



General

Dimension(L*W*H)

5800*1320*1490mm

Weight

2300kg

Color

Computer gray

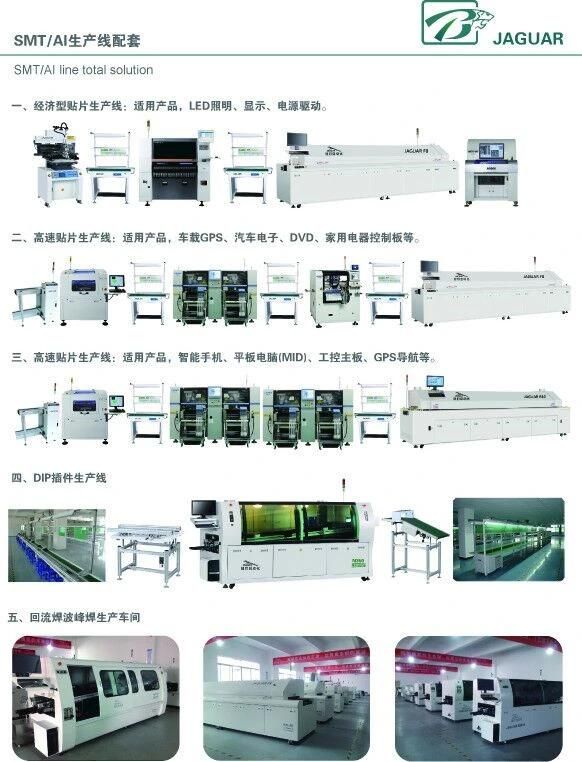

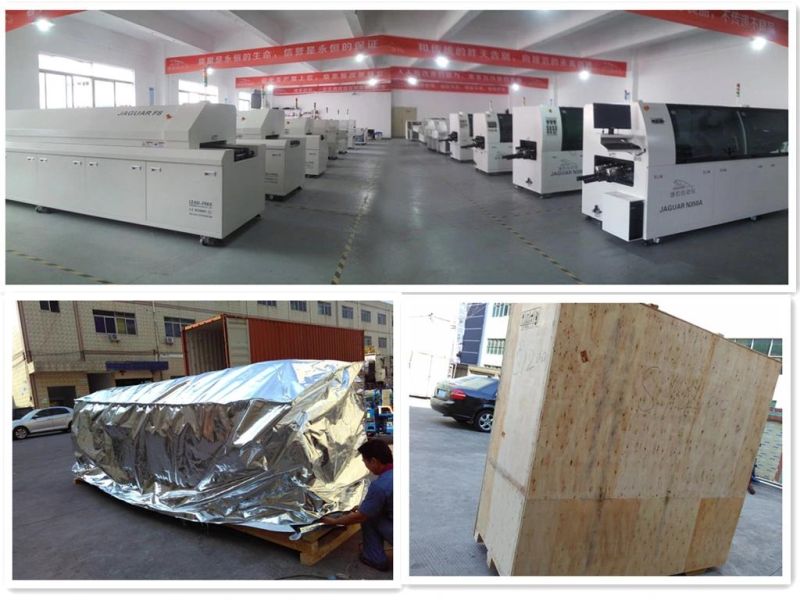

 Packaging & Shipping
