• Model NO.：WIND-1A-TSM
• After-Sales Service：Engineers Avaiable to Service Overseas
• Automatic：Automatic
• Transport Package：Wooden Case
• Specification：Middle Size
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-1A-TSM After-Sales Service Engineers Avaiable to Service Overseas Automatic Automatic Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

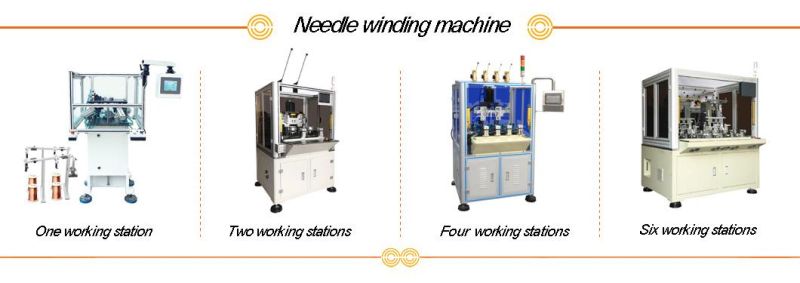

4 Slots BLDC Motor Stator Shroud Coil Winding Machine
This needle winding machine is special designed for 4 poles shaded pole motor to do winding. It can wind four poles synchronously. It takes 2min to wind one stator.

(1)Features
High speed needle winding
fully programmable operation
High quality level of the needle winding process
Depending on the customer`s specifications.
Automatic winding, indexing, layering and terminating
Quick change-over of tooling

(2)Specification

Wire diameter	0.08~1.00mm
Stator ID	15~65mm
Stack length	7~90mm
Turn No.	0~9999
Movement	Stepping/Auto
Slot number	4 (customized)
Air source	5~7kg/cm3
Power	2KW
Power supply	AC 220 V, 50/60HZ
Weight	450KG
Dimension	1550x900x1450mm

(3)Application
Suitable for 4 poles shaded pole motor to do winding.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
4 sets auto wire clamping and cutting system
