• Model NO.：WIND-1-TSM
• After-Sales Service：Engineers Avaiable to Service Overseas
• Automatic：Automatic
• Transport Package：Wooden Case
• Specification：Middle Size
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-1-TSM After-Sales Service Engineers Avaiable to Service Overseas Automatic Automatic Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

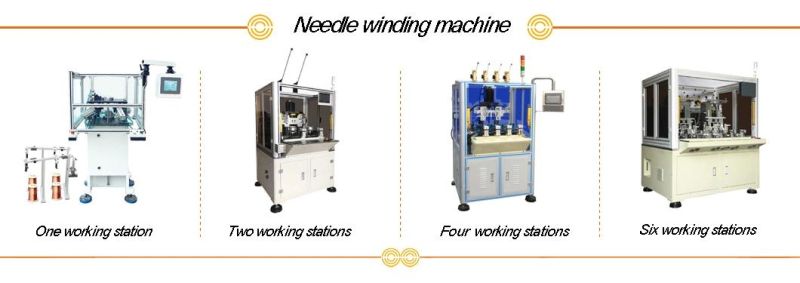

9 Slots BLDC Motor Stator Tooth Coil Winding Machine
Besides 9 slots stator, this BLDC motor winding machine can also winding 6 slots, 8 slots, 12 slots, 14 slots and other slots number stators. It covers a wide wire range from 0.08mm to 1.2mm.

(1)Features
High quality level of the winding process
Wide application and model types
Quick change-over of tooling
Provide customized service
Automatic winding, indexing, layering and terminating

(2)Specification

Wire diameter	0.08~1.20mm
Stator ID	15~65mm
Stack length	7~115mm
Turn No.	0~9999
Movement	Stepping/Auto
Slot number	6,8,9,10,12,14,18(customized)
Air source	5~7kg/cm3
Power	1KW
Power supply	AC 220 V, 50/60HZ
Weight	350KG
Dimension	1550x900x1450mm

(3)Application
Suitable for various types of multi-poles stators, stepping motor, BLDC motor regardless of wire diameter.

(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
