Big Cable Terminal Crimping Machine
Kunshan Yuanhan Electronic Equipment Co., Ltd.- Driven Type：Pneumatic
- Condition：New
- Certification：CE
- Warranty：12 Months
- Automatic Grade：Semiautomatic
- Model No：Yh-6wc
Base Info
- Model NO.：YH-6WC
- Crimping Force：200kn
- Power：2.3kw
- Max. Wire Diameter：38mm
- Wire Size：10-120mm2
- Dimension：70*86*126cm
- Weight：160kg
- Transport Package：Wooden Case
- Specification：56*52*52cm
- Trademark：YH
- Origin：China, Kunshan
- HS Code：8479819000
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. YH-6WC Crimping Force 200kn Power 2.3kw Max. Wire Diameter 38mm Wire Size 10-120mm2 Dimension 70*86*126cm Weight 160kg Transport Package Wooden Case Specification 56*52*52cm Trademark YH Origin China, Kunshan HS Code 8479819000 Production Capacity 100PCS/MonthProduct Description

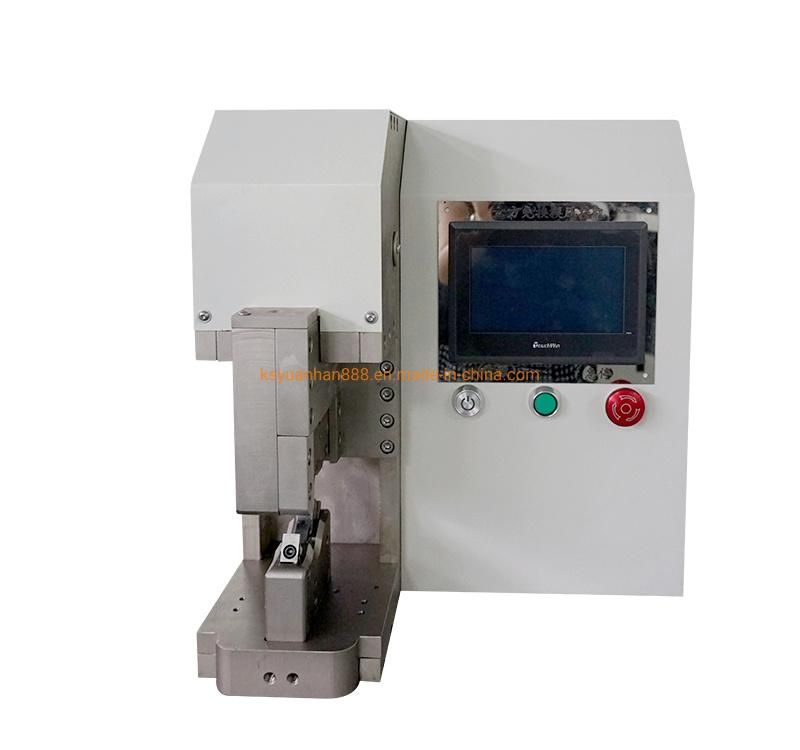

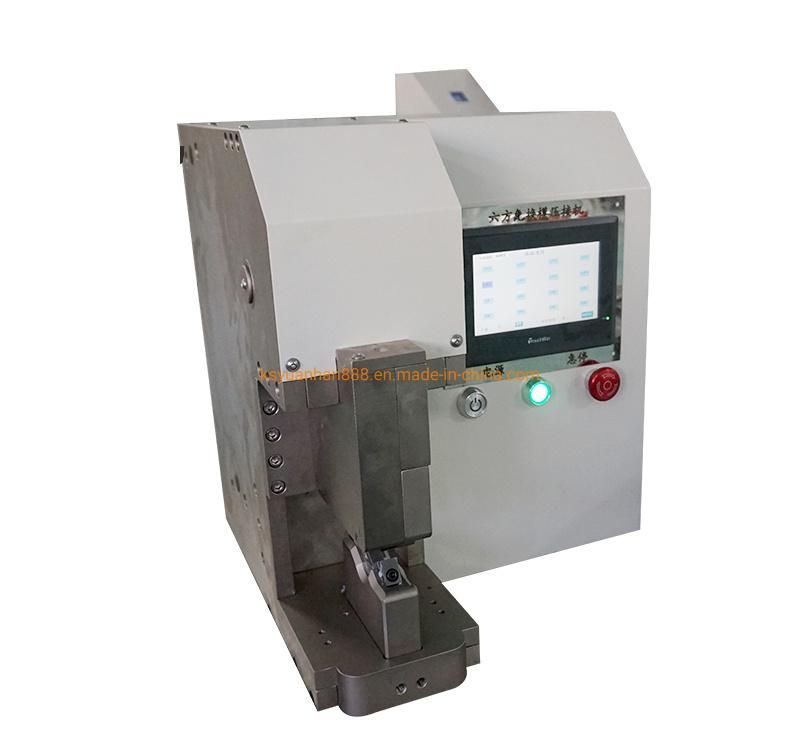

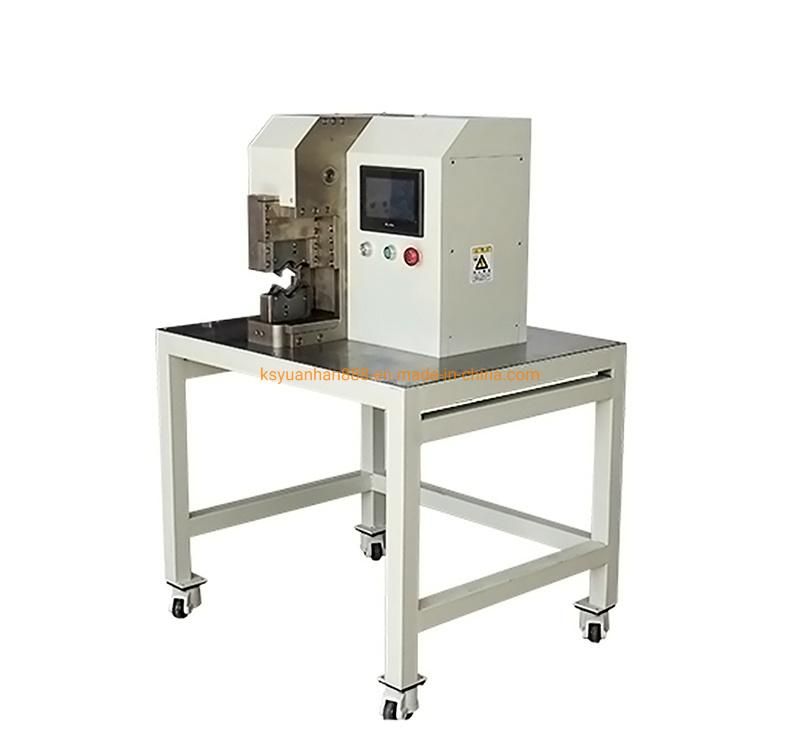

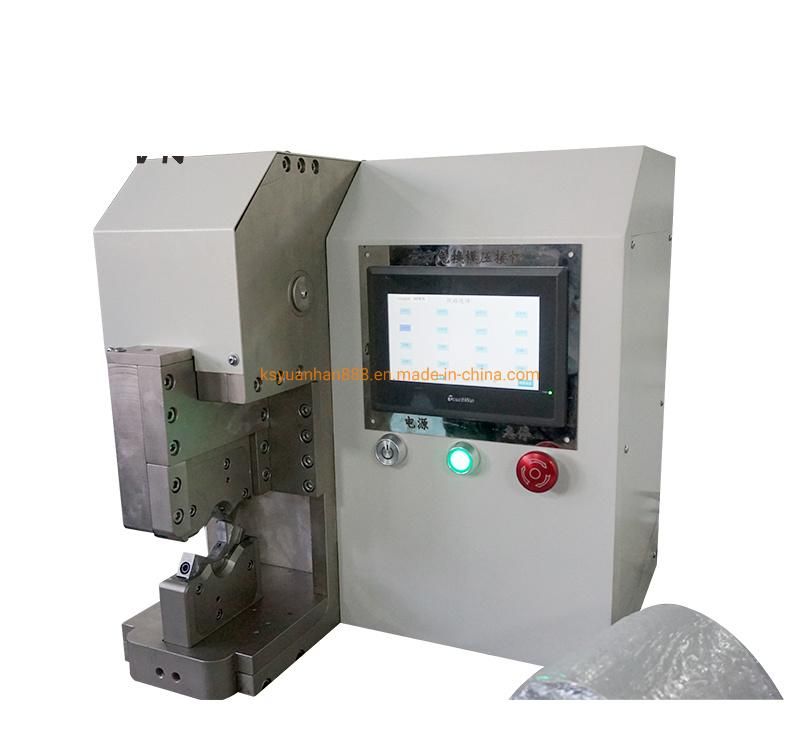

Servo Motor Cable Connector Crimping Machine
This hexagon edge cable crimping machine is suitable for crimping of non-standardized terminals and compression type terminals with no need to change die set. Applicable wire range: 10-120mm².
Suitable for non-standardized terminals and compression type terminals
No need to change die set, servo control system, high accuracy

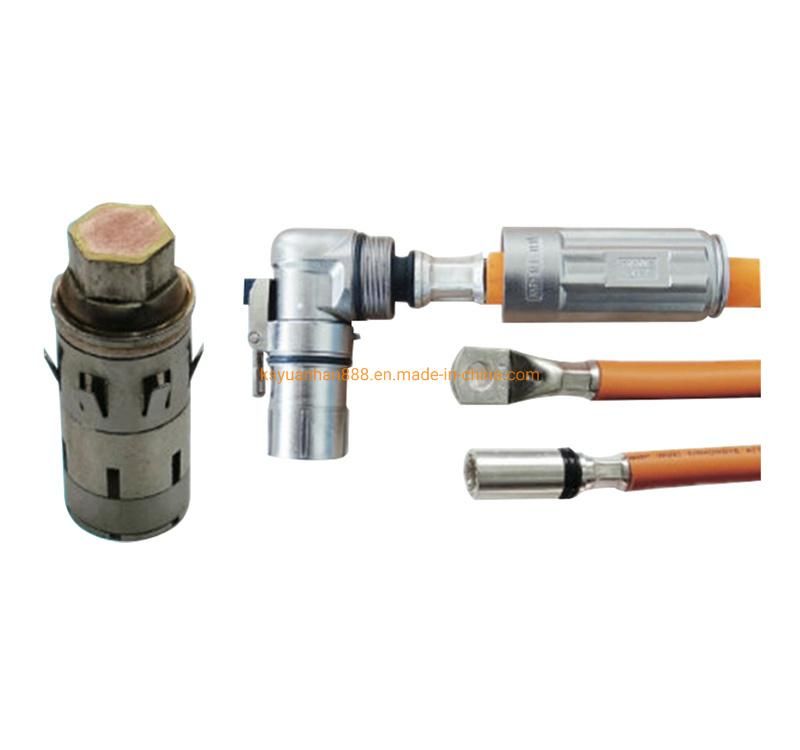

Separated crimping interface, suitable for intermediate junction, and new energy right angle terminal crimping
Position adjustment is possible, and the field of view is clearer
Compact structure, space saving and low noise
Model YH-6WC Wire range 10-120mm² Crimping force 200KN Max. diameter 38mm Crimping width 12.5mm (Customizable) Weight 160kg Dimension 700×860×1260mm Power 220v50Hz Motor 2300w
Our company show
Any inquirys please contact Yuanhan for more details!
