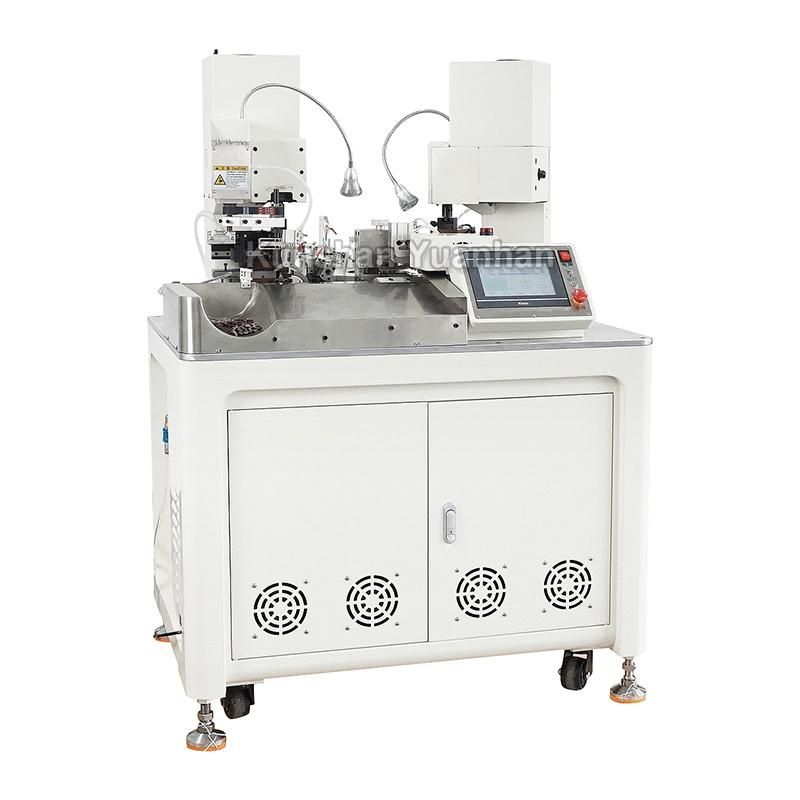

High Quality Fully Automatic Double Ends Electrical Connector Wire Cut Strip Crimping Machine Molex Terminal Crimping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24h
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-ST02,S01
  • Name：Yh-St02 Servo Terminal Crimping Machine
  • Power Supply：AC220V,50,60Hz Single Phase
  • Capacity：1400 Pieces,Hour
  • Wire Range：AWG14 - AWG28
  • Cutting Length：65mm - 9999mm (Special Length Can Be Customized)
  • Cutting Accuracy：1mm+Cutting Length*0.2% or Less
  • Stripping and Twisting Length：7mm - 12mm
  • Crimping Capacity：2.0 Tons (3.0t Optional)
  • Air Pressure：4 - 6kgf (Clean and Dry Air Is Required)
  • Detection Device：Optical Fiber Induction, Detection of Wire Presenc
  • Dimensions：700W X 800L X 1500h(mm)
  • Weight：About 358kg
  • Transport Package：Wooden Case
  • Specification：22*25*60cm
  • Trademark：YH
  • Origin：China
  • HS Code：8479819000

Description


 ModelYH-ST02Power supplyAC220V/50/60HZ single phaseCapacity1400 pieces/hour (length<300mm)Wire rangeAWG14 - AWG28Cutting length65mm - 9999mm (special length can be customized)Cutting accuracy1mm+cutting length*0.2% or lessStripping and twisting length7mm - 12mmCrimping capacity2.0 tons (3.0T optional)Air pressure4 - 6kgf (clean and dry air is required)Detection deviceoptical fiber induction, detection of wire presence, detection of terminal crimping, blockage detection, low air pressure detectionDimensions700W x 800L x 1500H(mm)Weightabout 358kg



Specifications

High Quality Fully Automatic Double Ends Electrical Connector Wire Cut Strip Crimping Machine Molex Terminal Crimping MachineHigh Quality Fully Automatic Double Ends Electrical Connector Wire Cut Strip Crimping Machine Molex Terminal Crimping MachineHigh Quality Fully Automatic Double Ends Electrical Connector Wire Cut Strip Crimping Machine Molex Terminal Crimping MachineHigh Quality Fully Automatic Double Ends Electrical Connector Wire Cut Strip Crimping Machine Molex Terminal Crimping MachineHigh Quality Fully Automatic Double Ends Electrical Connector Wire Cut Strip Crimping Machine Molex Terminal Crimping MachineHigh Quality Fully Automatic Double Ends Electrical Connector Wire Cut Strip Crimping Machine Molex Terminal Crimping MachineHigh Quality Fully Automatic Double Ends Electrical Connector Wire Cut Strip Crimping Machine Molex Terminal Crimping Machine

Packaging DetailsExport standard package for  terminal crimping machineDelivery detailsWithin 3-5 working days1.How to order?Please contact my Email for much more details, you can place order with us directly or through alibaba online transcation after confirmation.2.What's your payment terms?We accept trade assurance order, T/T,L/C, western union, Paypal etc.3.How long does the production time?Generally 3~7 days, if there's customized model or other request will be adjusted.4.How do you packaged the products?Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases.5.What can you provide for us?· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation, please feel free to contact us.
Any inquirys please contact US for more details!
