• Model NO.：XJ630-1250
• Specification：XJ630-1250
• Trademark：NEWTOPP
• Origin：China
• HS Code：8479400000
• Production Capacity：200sets,Year

Basic Info.

Model NO. XJ630-1250 Specification XJ630-1250 Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 200sets/Year

Product Description

Application field:

Used for power wire,high frequency wire,signal line,coaxial line,data wire multi group twisting.


Products feature:

1.High technology: This machine adopt Taiwan technology to improve the design and manufacture process.Which has the low noise,low loss,stable performance,easy operation characteristic.
2.Top quality components: pneumatic and oil pressure brakes,electrical elements,screw etc. Core components from Japan/Taiwan
3.High output High rotated speed,the production efficiency is 2 times than tradition type.
4.Steady tension:Wrapping and take up tension keep constant from start to end.
5.Pitch accurately:Set pitch on touch screen,PLC control,Pitch is steady while it's normal or accelerate and decelerate.
6.Traversing:Adopted axis-row type,traversing space and distance can be set freely.
7.Latest cantilever standing machine with capstan:better pitch,better quality.

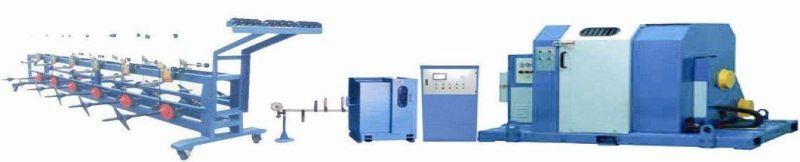

Machine parts:

1.Pay-off stand(active/passive type can choose)
2.Host machine
3.Assembled eye frame
4.Central wrapping machine
5.Electrical control cabinet

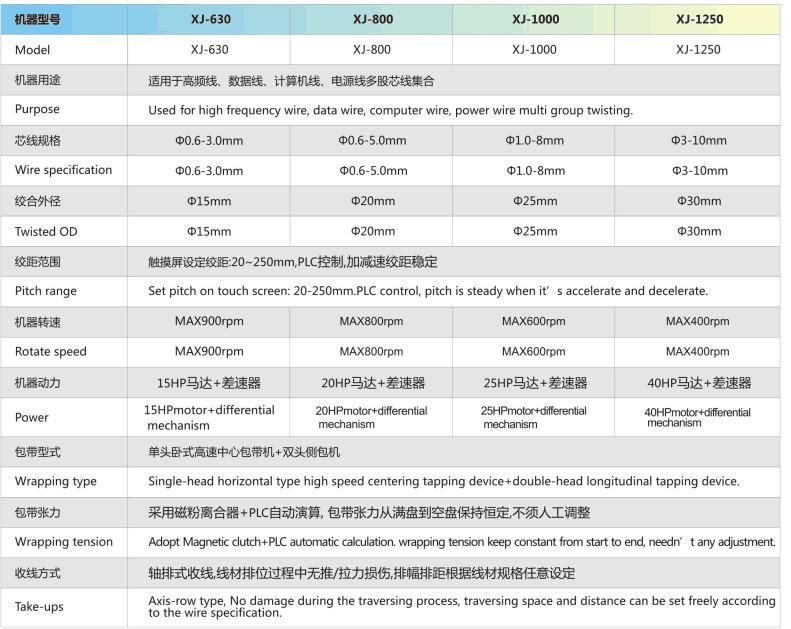

Technical parameters




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

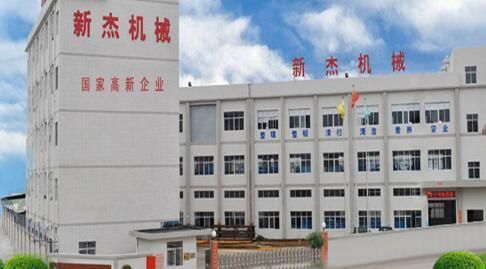

About us


Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.
