Brushless Motor BLDC External Armature Rotor Coil Winding Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：380V
  • Name：External Rotor Coil Winding Machine
  • Max Winding Speed：2000rpm
  • Power：380V
  • Weight：350kg
  • Dimension：870 X560 X1600mm

Base Info

  • Model NO.：ND-R2W01A
  • After-Sales Service：Overseas Service Center Available
  • Machine Color：Ral9010 or as Per Customer Requirement
  • Air Pressure：0.4~0.7MPa
  • Automatic：Automatic
  • Certification：CE
  • Transport Package：Wooden Case
  • Specification：ISO9001
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description

Production name:BLDC external rotor coil winding machineDimension:870X560X1600(LXWXH)Weight:  350KGVoltage:phase AC380VPower:3KWMax. speed : 2000rpm(no-load)rated speed:700rpmAir pressure:0.4~0.7MPa

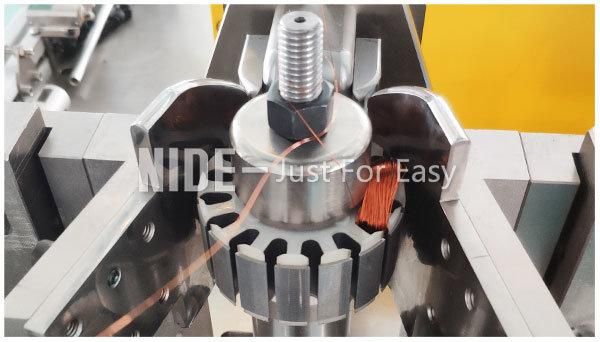

The external armature winding machine show
Brushless Motor BLDC External Armature Rotor Coil Winding Machine

Brushless Motor BLDC External Armature Rotor Coil Winding Machine

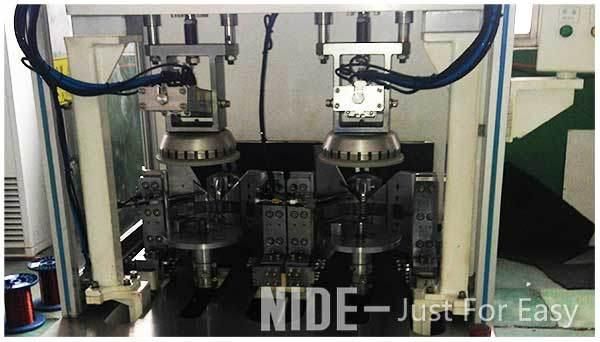

the bldc rotor coil winding machine show Brushless Motor BLDC External Armature Rotor Coil Winding Machine


Brushless Motor BLDC External Armature Rotor Coil Winding Machine

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Brushless Motor BLDC External Armature Rotor Coil Winding Machine
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
