• Model NO.：HC-10T
• Display：English Interface or Chinese Interface LED Display
• Press Capacity：10t
• Crimp Range：10mm2-120mm2
• Stroke：22mm
• Crimping Type：Confining
• Rated Pressue：2.5MPa-70MPa
• Transport Package：Wooden Box
• Specification：750*480*1000MM
• Trademark：HeChang
• Origin：Changzhou City, China
• HS Code：8479819000
• Production Capacity：20,Month

Basic Info.

Model NO. HC-10T Display English Interface or Chinese Interface LED Display Press Capacity 10t Crimp Range 10mm2-120mm2 Stroke 22mm Crimping Type Confining Rated Pressue 2.5MPa-70MPa Transport Package Wooden Box Specification 750*480*1000MM Trademark HeChang Origin Changzhou City, China HS Code 8479819000 Production Capacity 20/Month

Product Description

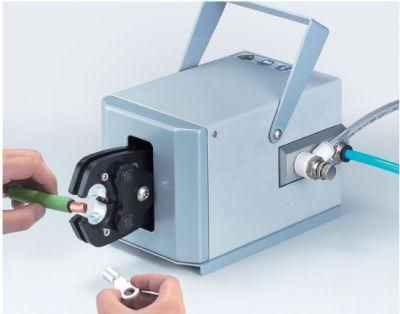

HC-10T  Terminal crimping machine
  This crimping machine  is designed for some cable electric power industry, electric control cabinet industry, it can crimp from 10mm ²  to 120mm²  , hexagonal confining pressure , point pressure  etc ,operation is simple and convenient.
Equipped with the appropriate tooling,Pedal forward stepped up the pump cores while  the valve opening into oil .
When the pedal stepped forward to open the inlet valve into the oil ,Hydraulic push the piston to force the size of the oil return spring compression ,Active mode to move forward, when micro- touch ,the two dies stop .
step the foot pedal Backward, Make the oil valve opening, As the role of the oil return spring tension , the oil reservoir back into the tube , that activity die reset, such as when crimping copper sleeve, copper sleeve before the annealing process to ensure quality of the crimp .

Product details:



Feature:

 The crimping dies are interchangeable for crimping different terminals.
 High precision,Economical & user-friendly
 Extremely low maintenance
 Much more reliable,stable and high effeciency


Techinical data:

HC-10T  Terminal crimping machine

Mode	HC-10T,15T
Measurement	750*480*1000
Crimping range	10mm2  to 120mm2
Max pressure	10T
Stroke	22
Moulds	According to the cable matched mold
Crimping type	confining pressure
Rated pressure	2.5mpa-7.0mpa
Rated flow	High pressure 0.8L/min   low pressure 2.5L/min
Oil box volume	10L
Motor power rate	0.75kw
Weight	45kg

Certifications:

kindly reminder :

All our certifications are REAL ONE , NOT FAKE , NOT FAKE , NOT FAKE !!!!!

PLEASE CONTACT US TO SHOW YOU !!!






Company Information:

Changzhou Hechang Machinery Co;Ltd is a Hi-tech professional manufacturer, Providing all-rounded solutions to wiring harness processing area for the customers from Electrical Appliances, Automotive, Industrial Control Automation,  instrument and apparatus.Medical ,Electric control cabinet , lighting and so on .
Our main products included Fully-automatic terminal crimping machine, Digital wire cutting & stripping machine, Terminal crimping machine, cable/wire printing inkjet marking machine ,Twisting Tinning machine , Seal insertion, Applicators for terminal crimping, Industrial robot and other special wiring harness processing electronic equipments.
Packaging:




Warranty:


We promise to give you one year warranty , long term technical support .

any problems duirng warranty , we promise to slove problem within 20hours.

if the machine can not working ,

We accept returns and refunds !
