• Model NO.：WIND-BLDC-2
• Weight：650 Kg
• Dimension：1000X1100X1700mm
• After-Sales Service：Engineers Avaiable to Service Overseas
• Transport Package：Wooden Case
• Specification：Middle Size
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-BLDC-2 Weight 650 Kg Dimension 1000X1100X1700mm After-Sales Service Engineers Avaiable to Service Overseas Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

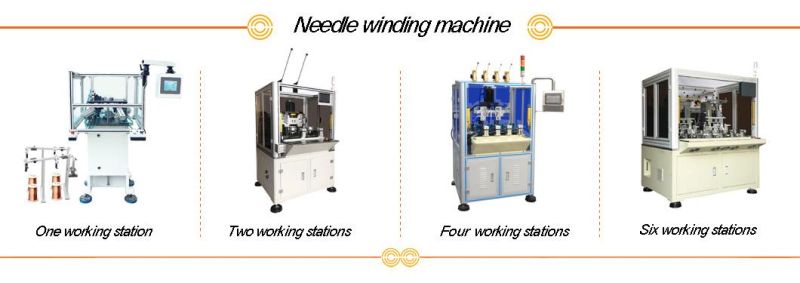

High Efficiency Pump Motor Vacuum Cleaner Motor Stator Coil Needle Winding Machine
This needle winding machine has a wide application. It is suitable for stators with slot range within 0-36 slots to do coil winding.

(1) Application
It is suitable for brushless motors, pump motors, stepper motors, vacuum cleaner motors, power tool motors.

(2) Specification

Working station	2
Stator OD	20~130mm
Stator ID	12~100mm
Stack length	5~80mm
Wire diameter	0.08~1.3mm
Drive servo	3000W 1 set
Indexing servo	2000W 2 sets
Arraying servo	750W 2 sets
Air source	7 kg/cm3
Power supply	380V  50HZ  15A
Dimension	1000x1100x1700mm
Weight	650KG

(3) Features
2 working stations to do synchronous winding
Wide stator slot range, up to 36 slots
Wide stator application and strong applicability
Provide customized service
Touch screen with password protection function
High efficiency and production
