• Model NO.：TB680
• Dimensions：850*600*330mm
• Max Power：3kw
• Transport Package：Plywood
• Specification：ISO
• Trademark：Torch
• Origin：Beijing
• HS Code：8515800090
• Production Capacity：80 Sets,Month

Basic Info.

Model NO. TB680 Dimensions 850*600*330mm Max Power 3kw Transport Package Plywood Specification ISO Trademark Torch Origin Beijing HS Code 8515800090 Production Capacity 80 Sets/Month

Product Description

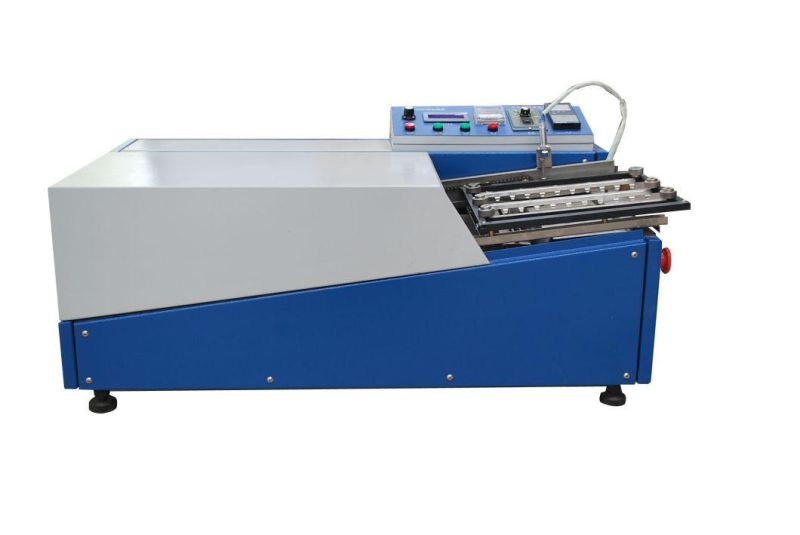

PCB Through Hole Single Wave Reflow Soldering Machine Tb680
Summary:

Desk wave soldering machine TB680 has been developed by Torch, It is the first equipment in small type wave soldering field. TB680 is suitable for research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. It is a desk-type, taking up small room, with multi-functions, energy-saving and high efficiency. The operation is easy and especially suitable for small and middle batch production.


Function:

There are 6 parts: flux, preheating, soldering, electrical controlling, exhaust unit and convection unit.

1. Flux
Flux parts are made of air pump, air tube, pin valve, filter, froth tube and flux box.
There is flux belt on the froth tube, PCB whose side has chips is on the top and touch flux, the side will has flux film.

2. preheating
It is made by melt board with resistor to provide heat for PCB.

3. soldering
It is made by tin pot, heating board, wave pump and tin.
4 electrical controlling
With modular structure, transmission speed, solder temperature, preheating time and others can be adjusted and controlled.

5. exhaust unit
It is made of cover, air fan, air cover and air tube. All exhaust generated in soldering will be eliminated.

6. convection unit
It is made of chain, rail, drive and pallet. PCB will be sent in flux unit, preheating unit and soldering unit by convection unit.

Technical parameter for TB680

Model	TB680
The max power consumption	3Kw
Solder pot capacity	37Kg
PCB width (L*W)(mm)	200 X 270mm (Max)
Temperature range	200~300
Preheating temperature	90~130
Wave height adjust range	5~ 10mm
Melt time	60min
Spray work mode	froth
Power supply	220v 50Hz
Conveyor speed	0.5~ 2m /min CTV
Dimension	840 X 540 X 380mm
Weight	70Kg
