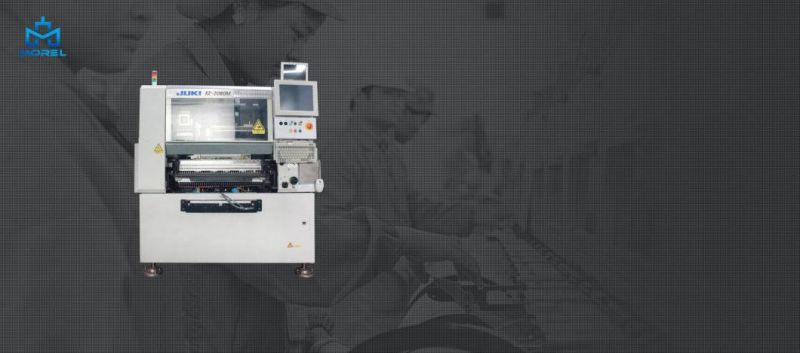

SMT Pick and Place Machine Juki Chip Mounter Ke 2080m

Qinyi Electronics Co., Ltd.
  • Condition：Used
  • Speed：High Speed
  • Precision：Precision
  • Certification：ISO, CE
  • Warranty：6 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：KE 2080M
  • Type：High-speed Chip Mounter
  • Part No.：Ke 2080m
  • Lead Time：1-2 Weeks After Payment
  • Shipping Ways：DHL, FedEx, TNT, UPS, EMS, by Sea, by Air
  • Transport Package：Normal Packing
  • Trademark：JUKI
  • Origin：Japan
  • Production Capacity：50 PCS , Year

Description

Basic Info.

Model NO. KE 2080M Type High-speed Chip Mounter Part No. Ke 2080m Lead Time 1-2 Weeks After Payment Shipping Ways DHL, FedEx, TNT, UPS, EMS, by Sea, by Air Transport Package Normal Packing Trademark JUKI Origin Japan Production Capacity 50 PCS / Year

Product Description

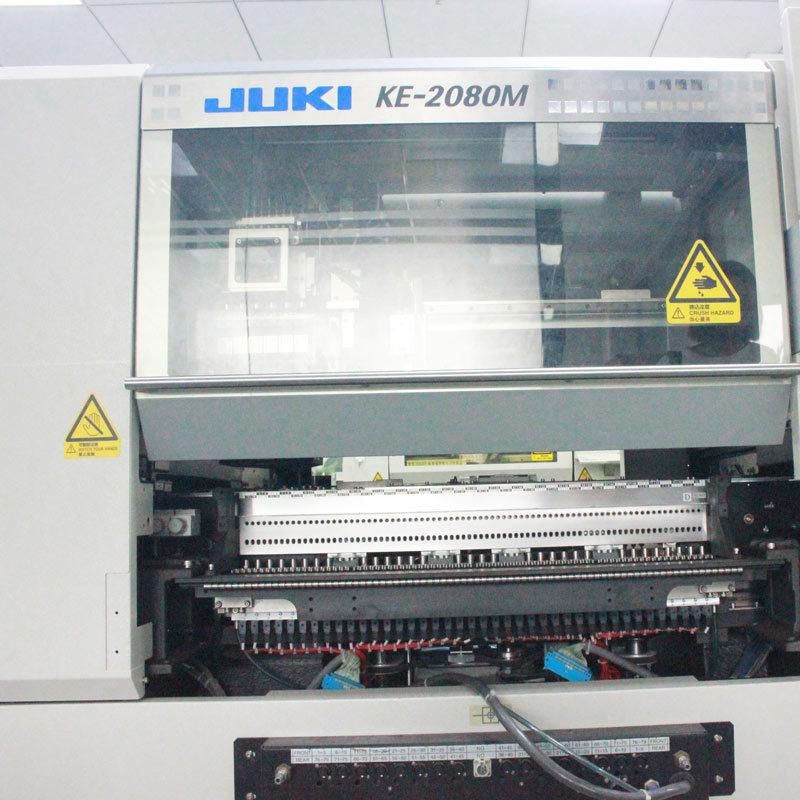

 SMT pick and place machine JUKI Chip Mounter  KE 2080M

SMT Pick and Place Machine Juki Chip Mounter Ke 2080m
SMT Pick and Place Machine Juki Chip Mounter Ke 2080m
SMT Pick and Place Machine Juki Chip Mounter Ke 2080m


ModelKE 2080M
Board size(330×250mm)
Component height6MM
Laser recognition0402~33.5mm
Standard camera3mm~74mm or 50×150mm
High-resolution camera (option)1.0×0.5mm3~48mm or 24×72mm
Placement speed0.178Sec./chip(20,200CPH)
Vision recognition±0.03mm (±0.04mm when using MNVC)
Feeder inputsMax. 80 on 8mm T/F6
Power supply200 to 415 VAC, 3-phase
Apparent power3kVA
Operating air pressure0.5±0.05Mpa
Air consumption403L/min (Opt.:Vacuum Pump 50L/min)
Machine dimensions1,400×1,393×1,455mm
Weight1,540kg




Feature :
  • The best flexible placement system for high-density placements. The ultra-flexible KE-2080 can place a wide range of components from 0402 (01005) and ICs, to odd-form, all at industry leading accuracy and speed.
  • 20,200CPH(0.178Sec/chip)(laser centering/optimum)
  • 16,700CPH: chip (laser centering / IPC9850)
  • 1,850CPH: IC (vision centering / effective tact), 4,860CPH with MNVC option.

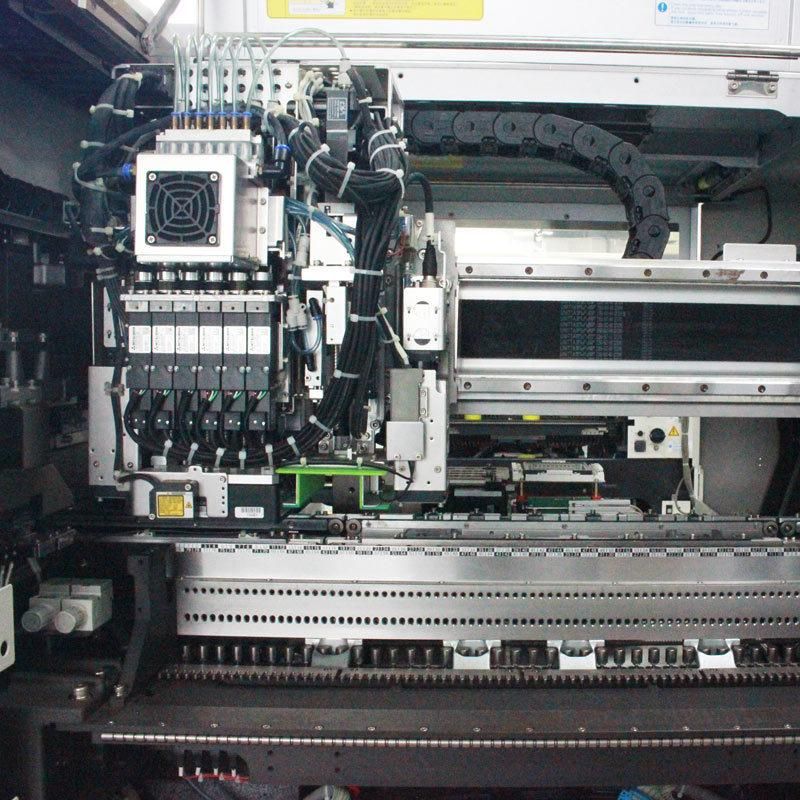

  • One multi-nozzle laser head (6 nozzles) plus one high resolution head (1 nozzle)
  • From 0402 (01005) to 74mm square components or 50×150mm
  • Vision centering system (featuring bottom, side, and back lighting, all ball recognition and split recognition)
