• Model NO.：Yv100xgp
• Type：High-speed Chip Mounter
• Part No.：Yv100xgp
• Lead Time：1-2 Weeks After Payment
• Shipping Ways：DHL, FedEx, TNT, UPS, EMS, by Sea, by Air
• Transport Package：Normal Packing
• Trademark：Yamaha
• Origin：Japan
• Production Capacity：50 PCS , Year

Basic Info.

Model NO. Yv100xgp Type High-speed Chip Mounter Part No. Yv100xgp Lead Time 1-2 Weeks After Payment Shipping Ways DHL, FedEx, TNT, UPS, EMS, by Sea, by Air Transport Package Normal Packing Trademark Yamaha Origin Japan Production Capacity 50 PCS / Year

Product Description

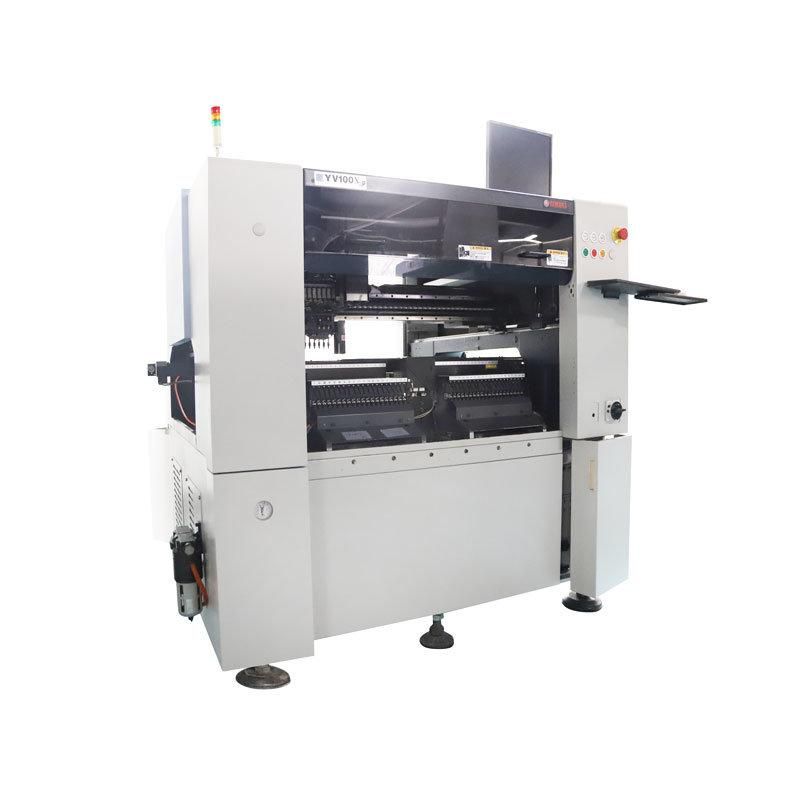

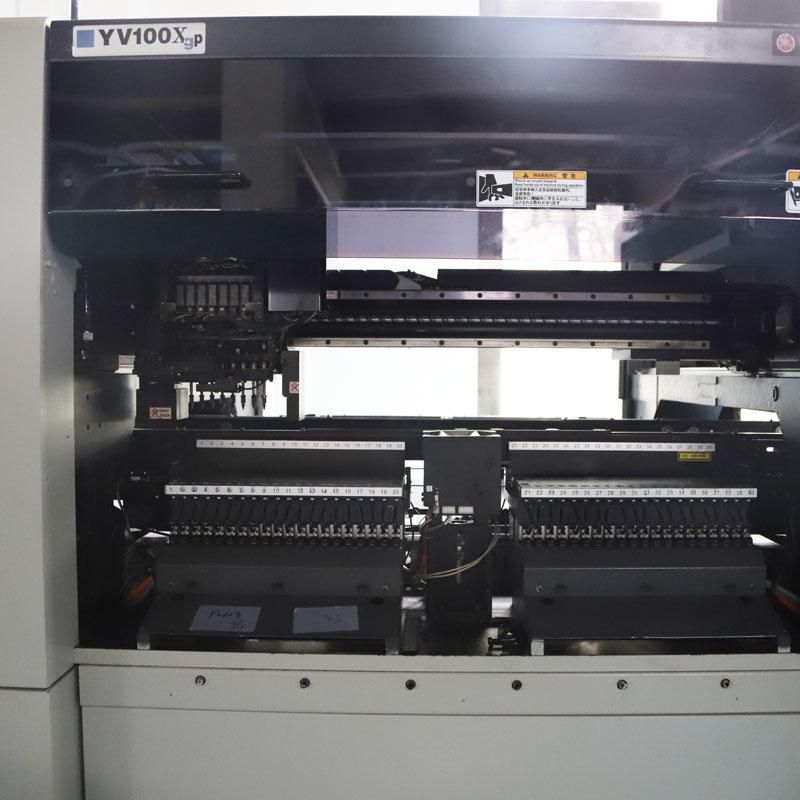

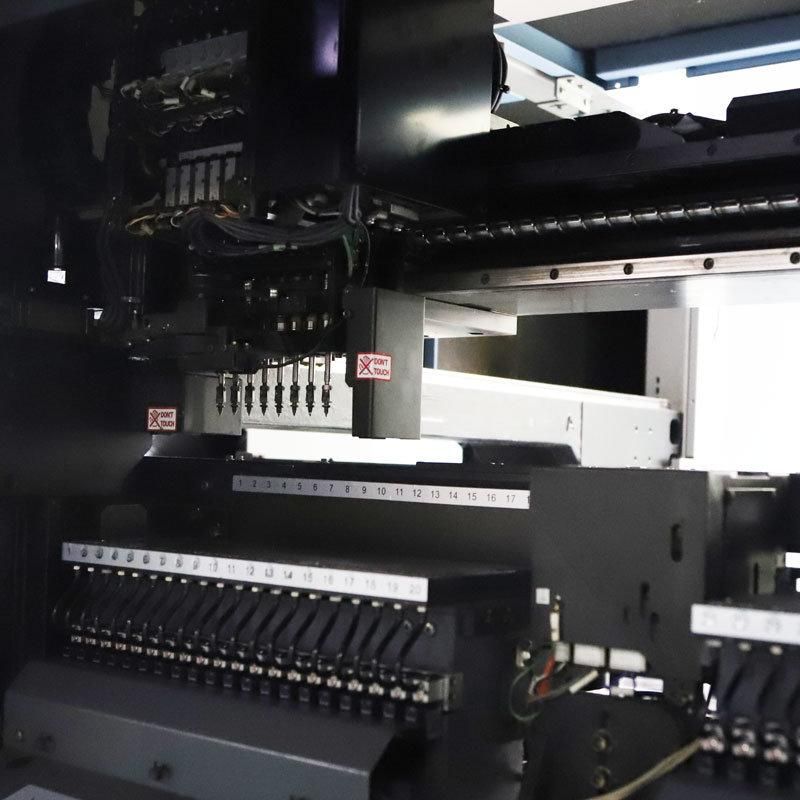

SMT pick and place machine YAMAHA Chip Mounter YV100XGP







Model	YV100XGP
Applicable PCB	L460 X W440mm to L50 X W50mm
Through-put (Optimum)	20, 000CPH (0.18sec/CHIP Equivalent)
Mounting accuracy	Absolute accuracy (j. 1 +30 ): +1-0.05mm/CHIP, +/-0.05mm/QFP, Repeatability (3 0): +/-0.03mm/CHIP, +/-0.03mm/QFP
Applicable components	0603 (Metric base) to 031 mm components, SOP/SOJ, QFP, connector, PLCC  Height of components which can be mounted: 6.5mm or less
Numberof componenttypes	90 types (Max, 8mm tape reel conversion)
Power supply	3-Phase AC 200/208/220/240/380/400/416V +1-10% 50/60Hz
Air supply source	0.55MPa or more, in clean, dry states
External dimension	L1, 650 X W1, 408 X H1, 425mm (cover top)
Weight	Approx. 1, 580kg

Feature:

• YV100Xg is now available in a shorter delivery time and at a lower price level. The functions and specifications of YV100Xg which has gained user's confidence and achieved successful results are adjusted and consolidated into this mod
• High-speed mounting capacity handling 20, 000CPH (equivalent to 0.18 sec/chip: Optimum condition)
• +/-50 um mounting absolute accuracy in full time operation.
• Accommodation of wide range components, from 0603 to 031 mm QFP.
