• Model NO.：ND-LAW-5B24
• Automatic：Manual
• Certification：CE
• Transport Package：Ply-Wooden Case
• Specification：2000*1300*1800
• Trademark：NIDE
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Production name:Armature coil winding machineArmature O.D range:20~60mmArmature slot:Even slotCommutator diameter:12~40mmWire diameter:

Magnetic hysteresis method: 0.16~0.55mm/

Electric control method: 0.30~0.85mm

Stack length:20~60mmShaft diameter:3~17mmShaft length:Less than 300mmTurn number:0~9999Winding speed:0~3000rpmWinding motor power:1.5KW* 2Angle detecting speed:0~3000rpmAngle detecting motor power:0.75KW*1Air supply pressure:4~6Kg/cm2The machine total power:4.0KWVoltage:Three phase AC380V50/60HzDimension:2000(length)X1300(width)X1800(height)mmWeight:1200Kg

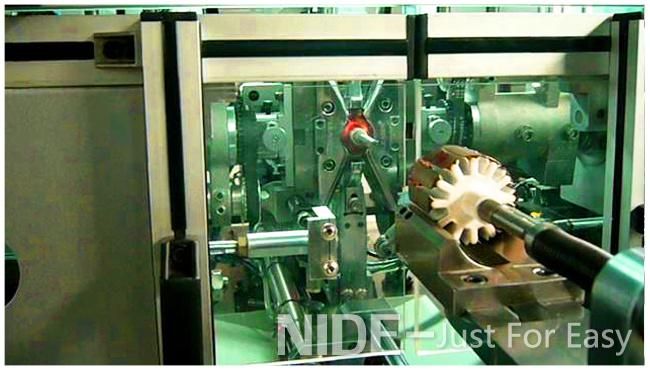

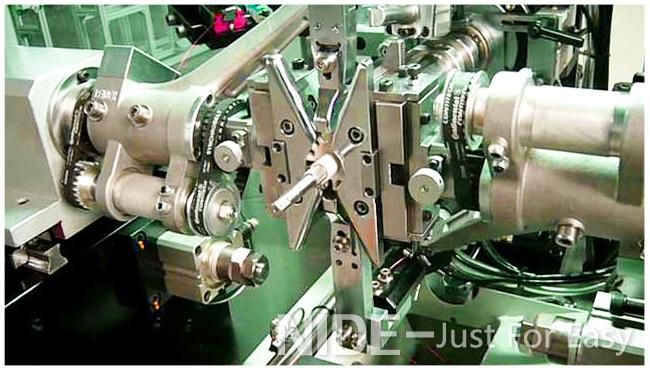

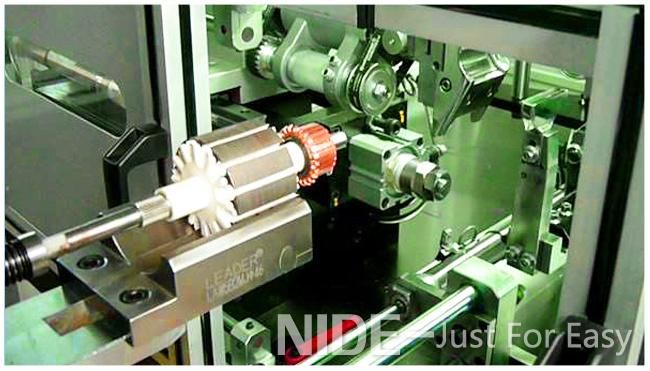

(4)The coil winding machine picture show

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
