Automatic Big Transformer Toroid Core Coil Winding Machine for Sale

Tianjin Grewin Technology Co., Ltd.
  • Max.Final Coil.O.D：130-650
  • Min.Final Coil.I.D：60

Base Info

  • Model NO.：GWM-0619
  • Max.Finalcoil Height：150
  • Controller Storage Capacity Programs：29 Sets
  • Max.Taping Speed：150rpm
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：900*600*1350
  • Weight：240kg
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton with Strong Pallet
  • Specification：VDE, CE
  • Trademark：Grewin
  • Origin：Tianjin
  • HS Code：85045000
  • Production Capacity：1000 ,Month

Description

Wire diameter1.0-4.00Max.winding speed150rpmMax.final coil.O.Dφ130-650Wire spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensionsWire diameter0.50-1.30Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ25Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550*500*750Controller storage
capacity Programs29 (set)Weight94kgGWM-0319B (winding machine/Mag.OD.400)
(unit): mm

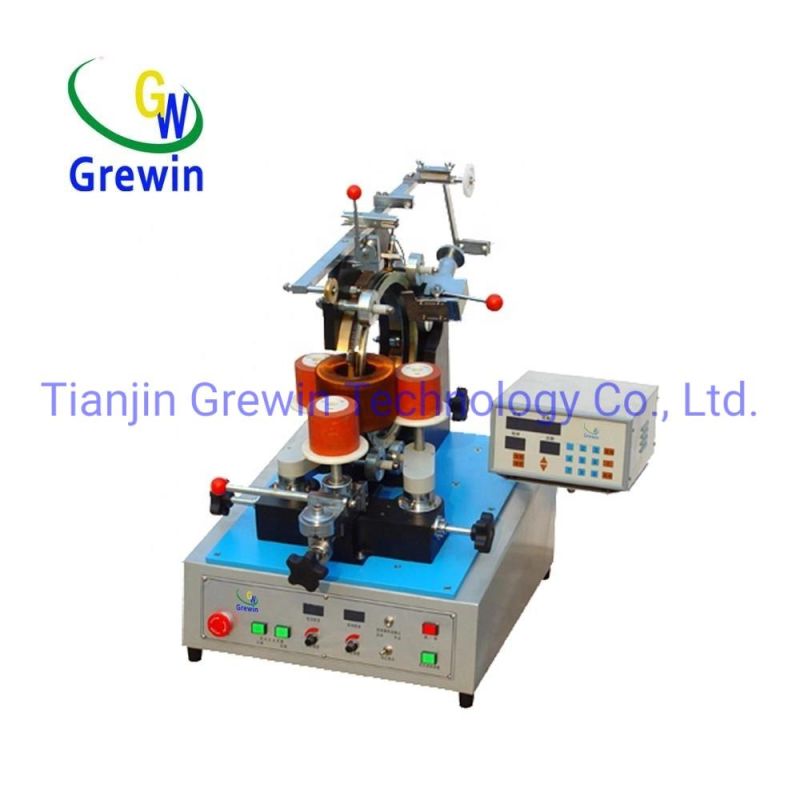

2.GWM-0119 Gear type toroidal coil winding machine

Automatic Big Transformer Toroid Core Coil Winding Machine for Sale
 Wire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm

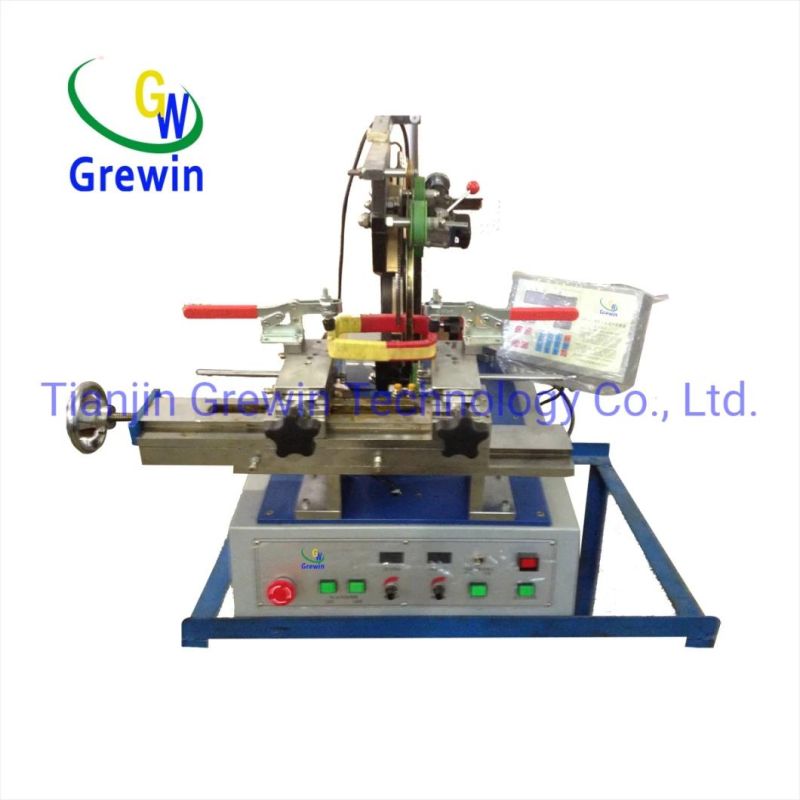

3.GW0950 Mobile rectangular coil winding machineAutomatic Big Transformer Toroid Core Coil Winding Machine for SaleWire diameter0.70-2.00Max.winding speed200rpmMax.final coil.O.Dφ65-500,55Wire spacingProportional linkageMin.final coil.I.Dφ50-430,45Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions1000*950*780Controller storage
capacity Programs29 (set)Weight110kgGW0950(winding machine/Mag.OD.400)
(unit): mm

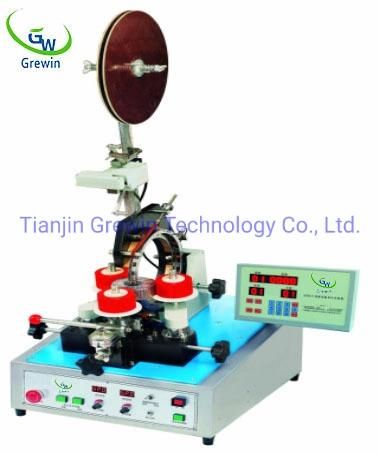

4.GWTM-0218  Gear type automatic wrapping insulating tape machine

Automatic Big Transformer Toroid Core Coil Winding Machine for Sale

 Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)
(unit): mm


Of course we have other models, please contact us if you need.

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
