• Model NO.：BRJ-1100
• Trademark：YBBA
• Origin：Shandong
• Production Capacity：2PCS,Month

Basic Info.

Model NO. BRJ-1100 Trademark YBBA Origin Shandong Production Capacity 2PCS/Month

Product Description

Functional feature:

1. Automatic Foil Coil Winding Machine adopts and electrical servo deflection correction system to achieve manual/automatic adjustment of the foil position more conveniently and reliably.
2. An advanced electrical control technology of constant tension is adopted to control the tension of the foil and the inter layer insulation, with the features such as quantitive, accurate and convenient control of the tension no mechanical friction. The required tension can be maintained for forward winding, stop and backward winding, ensuring compact coils.
3. The inter layer insulation adopts a cantilever mechanism, convenient for feeding and the mechanism can be pulled out as a whole without guide rails outside the body.
4.  Automatic welding mechanism and roll shearing mechanism adopt ball screws and linear guide rails for drive, ensuring the service life and accuracy of the device.
5. This winding machine first adopts the all-in-one sing frame, solving problems such as few coil urns and deflection correction lag.
6. This foil winding machine is a hi-tech product produced by combining with actual production on the basis of many similar products at home and abroad. The whole machine is controlled via an advanced PLC touch screen, with high automation level and simple and reliable operation, representing higher production level of domestic foil winding machines.

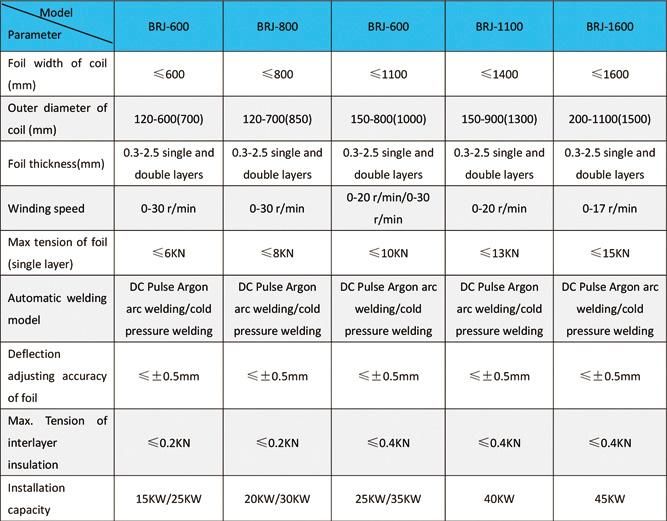

Technical Parameter:

Packing details
1) Applying Anti-Rust Oil
2) Covering with stretch film
3) Covering aluminum air bag
4) Vacuuming air bags
5) Boxing all the pallet
6) Loading to the container

Delivery time

Quantity (Sets)	1	2	>2
EST. Time (Days)	60	90	To be negotiated
