• Model NO.：NPM-TT2
• Type：High-speed Chip Mounter
• Transport Package：Wooden Box
• Trademark：Panasonic
• Origin：Japan
• HS Code：8479896200
• Production Capacity：100 Sets,Month

Model IDNPM-TT2PCB
dimensions
(mm)PC sizeSingle-lane modeL 50 x W 50 ~ L 510 x W 590Dual-lane modeL 50 x W 50 ~ L 510 x W 300M sizeSingle-lane modeL 50 x W 50 ~ L 510 x W 510Dual-lane modeL 50 x W 50 ~ L 510 x W 260PCB exchange timeSingle-lane mode4.0 s (With no component mounted on the reverse side of PCB)Dual-lane mode0 s* *No 0s when cycle time is 4.0 s or lessElectric source3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVAPneumatic sourceMin.0.5 MPa, 200 L /min (A.N.R.)Dimensions *1 (mm)W 1 300*2 x D 2 798*3 x H 1 444*4Mass2 690 kg

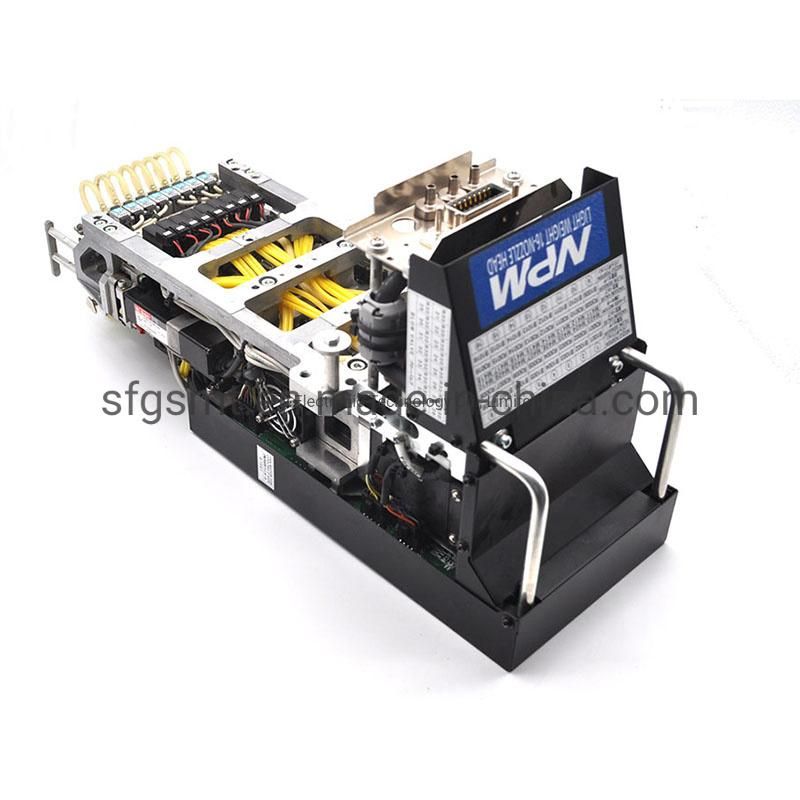

(Only for main body:This differs depending on the option configuration.) Placement headLightweight 8-nozzle head
(Per head)3-nozzle head V2 *5
(Per head)Placement speedPC size18 000 cph (0.20 s/chip)7 200 cph (0.50 s/chip)
5 900 cph (0.61 s/QFP)M size17 460 cph (0.21s/chip)6 984 cph (0.52 s/chip)
5 723 cph (0.63 s/QFP)Placement accuracy
(Cpk1)± 40 µm/chip
± 30 µm/QFP 12mm to 32mm
± 50 µm/QFP 12mm Under±40 μm/ chip
±30 μm/ QFPComponent
dimensions
(mm)0402 chip*6 to L 32 x W 32 x T 120603 chip to L 150 x W 25 (diagonal152) x T 30Component

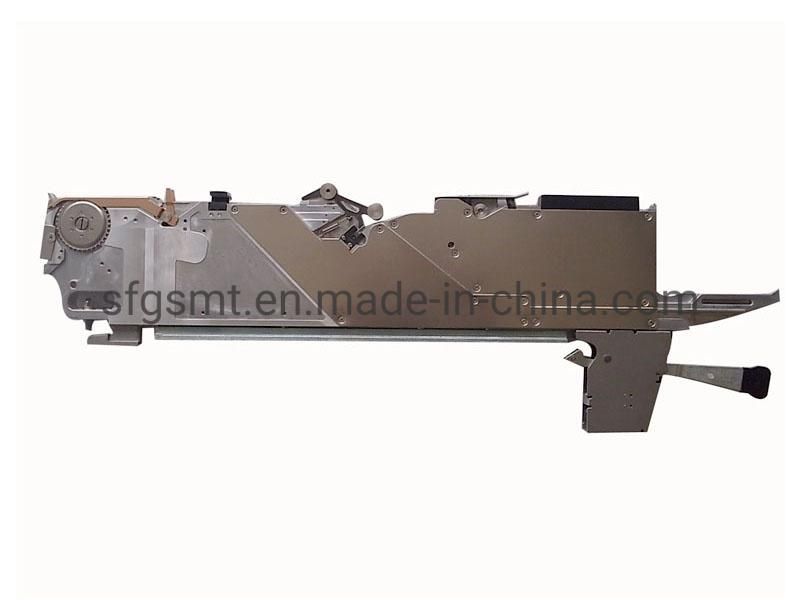

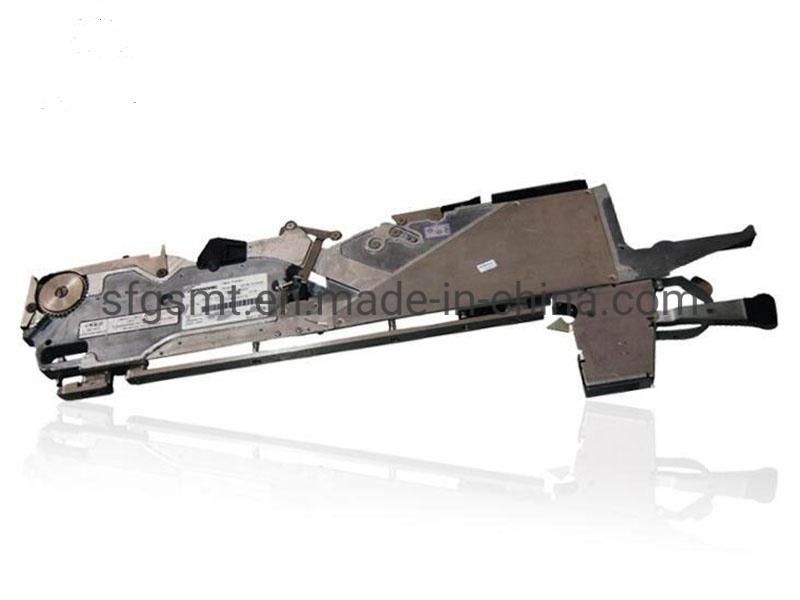

supplyTapingTape : 4 to 56 / 72 mmTape : 4 to 56 / 72 / 88 / 104 mmSpecifications for front/rear tray feeders : Max.52

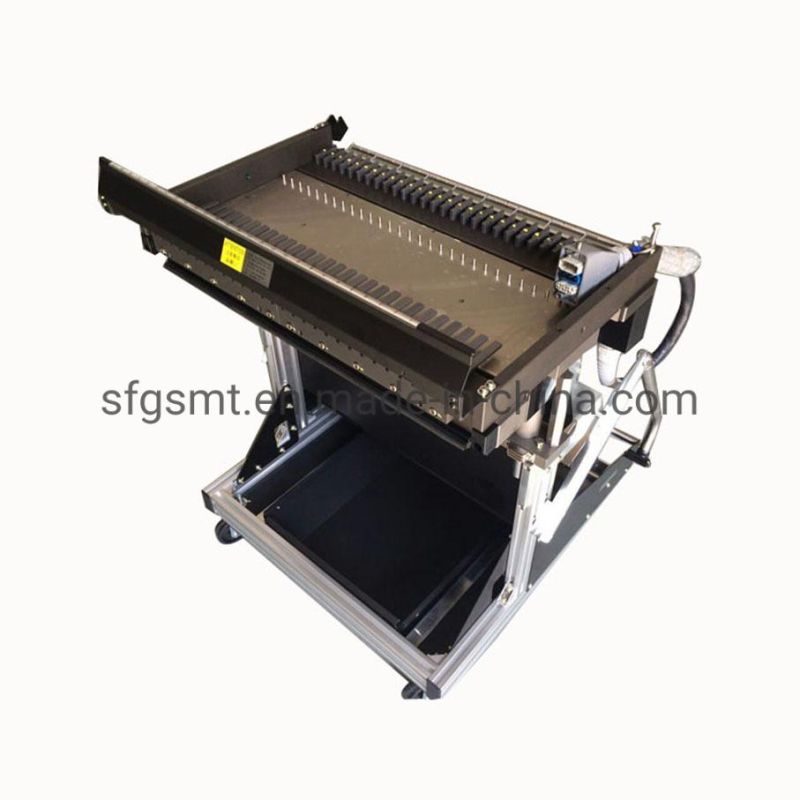

Specifications for front/rear feeder carts : Max.120 (Tape:4, 8 mm)StickSpecifications for front/rear tray feeders : Max.12 (Single stick feeder)Specifications for front/rear feeder carts : Max.28 (Single stick feeder)TrayMax.40 (Front supply unit : Max. 20 + Rear supply unit : Max. 20)
*1 : Only for main body
*2 : 1 820 mm in width if extension conveyors (260 mm) are placed on both sides
*3 : Dimensions shown are specifications for front/rear tray feeders . Dimensions of specifications for front/rear feeder carts : 2 893 mm
*4 : Excluding the monitor, signal tower and ceiling fan cover.
*5 : 3-nozzle head V2 cannot be installed on NPM-D3
*6 : The 0402 chip requires a specific nozzle/feeder.
*Placement tact time, inspection time and accuracy values may differ slightly depending on conditions.
*Please refer to the specification booklet for details.
