• Model NO.：WIND-FAW-B
• Automatic：Automatic
• Transport Package：Wooden Case
• Specification：Middle Size
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-FAW-B Automatic Automatic Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

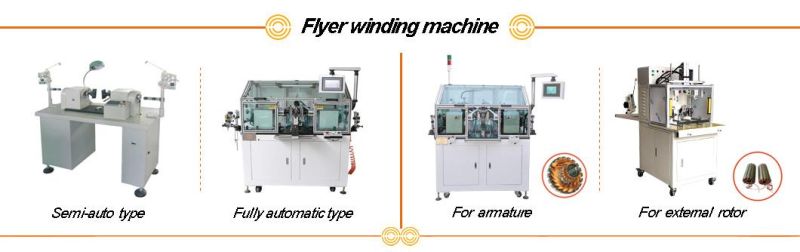

Mass Production Armature Winding Line Rotor Winding Machine Coil Winder

This type winding machine covers a wide wire range, from medium to big wire, up to 1.2mm. It can wind hook type commutator regardless of its slot numbers.

(1)Feature
For hook type commutator
High Automation
Automatic loading and unloading
For medium and big wire diameter
Automatic feeding, winding, indexing and wire cutting
All winding parameter programmed on touch screen

(2) Specification

Wire range	0.15~1.2mm
Armature OD	20~80mm
Stack height	10~90mm
Commutator OD	8~60mm
Movement	Jog/auto
Slot No.	Odd/Even
Turn No.	0~9999
Flyer speed	0~2000rpm
Power supply	AC 380V  50/60HZ
Air source	5~7kg/cm3
Power	4KW
Weight	1000KG
Dimension	2000x1650x1950mm

(3) Application
Suitable for automobile motor, motorcycle motor, house appliances series excited motor, power tool motor and various kinds of PM DC micro motor.

(4) Information needed for inquiry
1. Armature lamination drawing
2. Armature assemble drawing
3. Armature stack drawing
4. Armature winding diagram drawing
5. Commutator drawing
6. Required productivity
7. Other technical requirement
