Lead-Free Energy Saving Wave Soldering Machine Can Save Labor

Shenzhen Jaguar Automation Equipment Co., Ltd.
  • After-sales Service：Online Services
  • Certification：CCC, RoHS, ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Installation：Vertical
  • Model No：Jaguar N350

Base Info

  • Model NO.：JAGUAR Wave Soldering Machine N350
  • Number of Heating Zones：3
  • Length of Heating Zones：1600mm
  • Outside Dimension：4100(L)*1400(W)*1560(H)
  • Weight：1100kg
  • Total/Running Power：24kw,6-8kw
  • Air Supply：0.5MPa
  • Preheating Method：Micro Air
  • Range of Temp. Control：Room Temperature---300ºC
  • Preheating Time：About 10-15mins for Setting 150ºC
  • Transport Package：Wooden Case
  • Specification：Body size 3300(L)*1400(W)*1560(H)
  • Trademark：JAGUAR
  • Origin：Shenzhen
  • HS Code：851419
  • Production Capacity：100pieces,Month

Description

Model No.JAGUAR N350Number of heating zones3Length of heating zones1600mmBody size3300(L)*1400(W)*1560(H)Outside dimension4100(L)*1400(W)*1560(H)Weight1100KGTotal/running power24KW/6-8KWAir supply0.5MPaPreheating methodMicro airPreheating power220V 8KWControl  methodPC +PLCRange of temp. controlRoom temperature---300ºCPreheating timeAbout 10-15mins for setting 150ºCSolder typeLead-freeSolder pot capacity320KGSolder pot temperature300ºCSolder power380V 12KWSolder temp. control methodPID&SSRWave crest drive power1KW 220VWarm-up time of solderAbout 120mins for setting 250ºCPCB  width50-300mmConvey speed300-2000mm/minConvey directionL→R (R→L optional)Convey angle4-7 ºFlux pressure/capacity3-5 bar/6.5L
Introduction:
1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
7.Lead-free solder furnace with independent design, environmental protection and safety,
easy to clean.
8.Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
9.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
10.With black box memory function, the machine can always store the production management records, improve work efficiency.
11.Automatic claw cleaning function ensure the cleanliness of claws.
12.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.
About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Lead-Free Energy Saving Wave Soldering Machine Can Save LaborLead-Free Energy Saving Wave Soldering Machine Can Save Labor

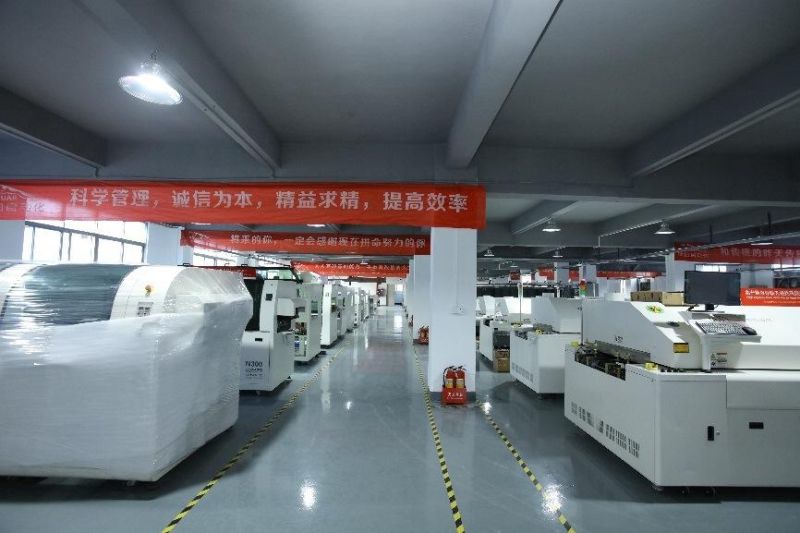

Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Lead-Free Energy Saving Wave Soldering Machine Can Save LaborLead-Free Energy Saving Wave Soldering Machine Can Save Labor
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
Lead-Free Energy Saving Wave Soldering Machine Can Save Labor
Customer and Feedback:
Lead-Free Energy Saving Wave Soldering Machine Can Save Labor
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Lead-Free Energy Saving Wave Soldering Machine Can Save Labor
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
Lead-Free Energy Saving Wave Soldering Machine Can Save Labor
Packing and shipping:
Lead-Free Energy Saving Wave Soldering Machine Can Save Labor
What we can do for you?
1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT
