• Model NO.：TN380C
• Transport Package：Plywood Case or Other Packing
• Trademark：TORCH
• Origin：Beijing, China
• HS Code：8515800090
• Production Capacity：60 Sets, Month

Basic Info.

Model NO. TN380C Transport Package Plywood Case or Other Packing Trademark TORCH Origin Beijing, China HS Code 8515800090 Production Capacity 60 Sets/ Month

Product Description

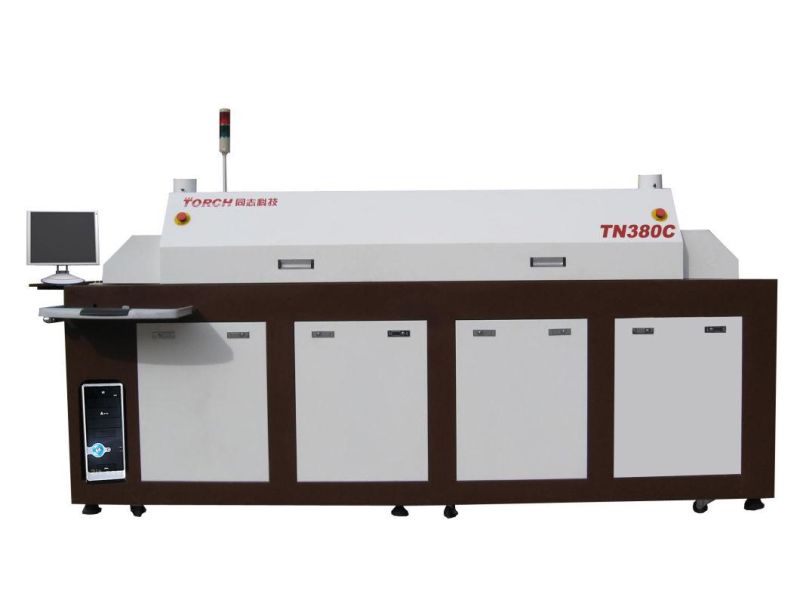

Lead-Free Reflow Oven with 8 Heating-Zones



Product Description:
Protection system: TN380C uses the SSR solid relay (450V) that has a large power and a pressure prevention to non-contact output, it is safe and reliable. It can monitor the change of temperature and heat number in the furnace chamber with the 'fuzzy control' and the 'data collection' functions. Then it controls the heating component with the least pulse and it responses very quickly. It keeps the accuracy of temperature's control, and the equipment can not be damage by the high current and the high voltage. Each room fits with a safety pipe which has a high temperature and high pressure resistant function, so that the whole system can run safely and calmly.


The selling point of TN series:
1. Chanel reflow oven with a thickness of 150mm
2. Use 24 channel modular design reflow oven hardware temperature control system.
3. The only industry that can achieve a custom function reflow oven software system.
4. The only industry that has a remote control reflow oven software system
5. Equipped with the top brand HP OR Lenovo computer, but also with an optional industry computer according to the customer's requirements.


TN380C Instructions:
Heating system: TN380C adopts a high effective and an energy-saving nickel-chromium heating tube. It has an advanced technology and a long life. TORCH self-developed hot-air circling system features warm up quickly, which makes that the PCB component is evenly heated.
There is an accurate control made by the IPC and the PID intelligent arithmetic. According to the PID intelligent calculation, the heat output can be controlled accurately and responses to the change of outside in order to balance the temperature. The whole system has a modularized design. It is very convenient for the maintenance and for disassembles.
The outer shell and furnace body of the TN380C can be wholly and automatically opened. It is convenient to clean and to maintain.

Main features for TN380C:

Intuitional welding control: The TN380C adopts an advanced furnace temperature collection system. It can test the temperature curve and the temperature in the furnace hearth. The temperature curve can be simultaneously recorded or printed.
Smooth and safe transmission system: The driving system adopts high-quality conversion motor and conversion system. It also has a closed-loop governor and a turbine speed reducing box of 1: 100 to keep running smoothly. Speed: 01600mm/min.
Stable and safe electric control system: Delay switch protection. Once the power is off, the temperature drops evenly in order to prevent any damage to the transmission component and the heater.
Power-off protection: It is here to keep the PCB output normal. Windows operating platform has strong functions and a high stability.
Upper and lower heating zones are separately controlled. The circulation speed can also be adjusted separately. It is suitable if you want to weld different PCB plates and components.

Model	TN380C
Heating zone	8 heating zones(8 upper, 8cover)+1 cooling zone
Heating method	Full forced Hot air heating
Warm-up time	25min
Cooling zone	1 zone,  (1up/1 below)
Cooling method	transverse flow vortex centrifuge blower
Built-in automatic relay heating system	To prevent over-pressure damage controller or motor when start up and to prevent component damage when welding.
PCB Board width	≤300mm
PCB conveyor Height	900±20mm
conveyor direction	L→R or R--L
Conveyor Material	Stainless steel
Chain-driven Mesh belt conveyor	Net belt and chain-driven transmission
Mesh belt width	300mm
Conveyor speed	0-1600mm/min adjustable
Power supply	380V (3 ph, 4 wires) 50/60Hz
Max Power	42KW
Normal working power	23KW
Warm-up time	≤30min
Control system	PLC+ Torch module temp control system+ IPC
Range of temperature control	Room Temperature-360
Temperature control	Advanced Intelligent micro computer PID temperature control automatically in each zone + SSR non-contact output
Precision of temperature control	±2
Temperature distributing error	±2
Net Weight	860kg
Dimensions (L ×W ×H )(mm)	3500×900×1390mm
