• Model NO.：A4
• Weight：350kg
• Number of Heating-Zone：up 4,Bottom 4
• Length of Heating-Zone：1400mm
• Heating Way：up Hot Air Bottom IR
• Max Width of PCB Board：300mm
• Transmission Speed：0-1000mm,Min
• Transport Package：Wooden Box and Vacuum Package
• Specification：2000× 800× 1400mm
• Trademark：JAGUAR
• Origin：China
• HS Code：851419
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. A4 Weight 350kg Number of Heating-Zone up 4/Bottom 4 Length of Heating-Zone 1400mm Heating Way up Hot Air Bottom IR Max Width of PCB Board 300mm Transmission Speed 0-1000mm/Min Transport Package Wooden Box and Vacuum Package Specification 2000× 800× 1400mm Trademark JAGUAR Origin China HS Code 851419 Production Capacity 30 Sets/Month

Product Description

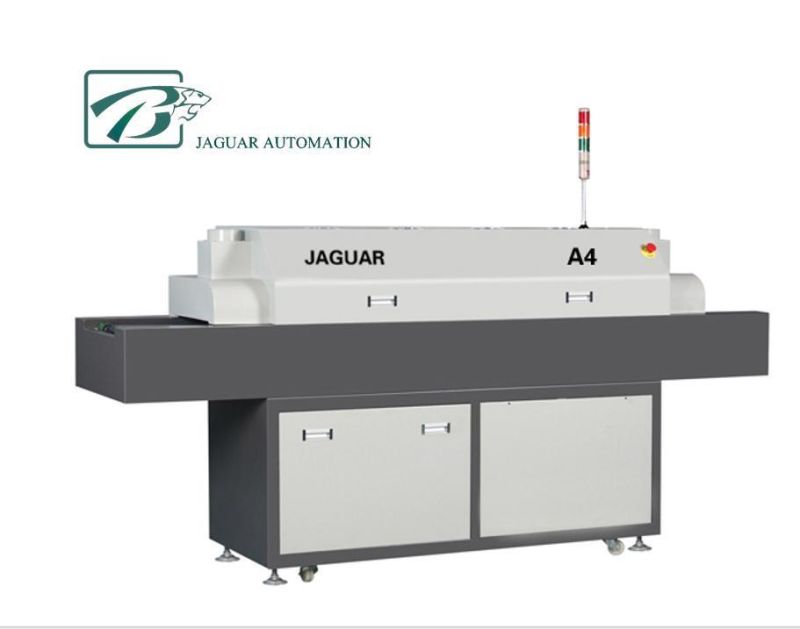

JAGUAR 4 Heating Zones Lead-free Reflow Oven A4




Features:

1.The heating system is unique , advanced and long-life.
2.High efficiency and energy-save nickel cauterize heating pipe is used in heating system(replacement within one year), strong hot air cycle structure , making PCB and components heating equally, high efficiency and rapid heating speed.
3.The intelligent micro-computer precision controller (replacement within one year), through intelligent operation of PID, control heating automatically , temperature controlling function can detect the changing of temperature, and then make inner temperature stable by controlling. Modular design , easy to repair and assembly.
4.Import high temperature and high speed motor are used (replacement within one year), stable operation,small tremble and low noise.The efficiency be improved greatly, extending the using time. The heating system use import components to make sure high stability and reliability of all system.5.Reliable and stable transmission system, stable operation driver, and the speed range is 0-2000mm/min.6.stable operation special stainless steel net chain is durable and wearable. So it didn't need to be change for a long time that can save cost.
7.Stable and reliable electronic controller system.
8. Computer is option.

Specification:


Model	Jaguar A4
Number of heating-zone	Up 4/Bottom 4
Length of heating-zone	1400mm
Heating way	Up hot air Bottom IR
Max width of PCB board	300mm
Transmission direction	Left→Right(Option: Right-Left)
Transmission belt height	880±20mm
Transmission speed	0-1000mm/min
Starting power	10KW
Normal working consume	4KW
Warm-up time	About 20 minutes
Temperature control range	Room temperature-300ºC
Temperature control way	PID controlling
Temperature precision	±2ºC
Abnormity alarm	Abnormal temperature: supper high or supper low temperature
Power supply	5 lines and 3 phase 380V 50/60Hz
dimension(mm)	2000×800×1400mm, add chain: 2500×1100×1490mm
weight	350KG


About Us:

Shenzhen Jaguar Automation Equipment Co., Ltd is professional in manufacturing wave soldering machine and reflow oven,besides both two kinds of products, we also engaged in offering SMT conveyor, pick and place machine, LED equipments, PCB loader and unloader, screen printer and other SMT machines.Our services, we devote to serve customers and meet all of their diversified requirments with stable technical level, innovative design concept, precise manufacturing process, reasonable price and customer first after-sales system.JAGUAR has been committed to develop to lead-free machine and manufacture lead-free electronic devices since foundation. At present, we have researched and developed 4 sorts of environmental friendly reflow oven, there are A series, M series, F series and R series. What's more, we have also develop wave soldering machine, for example, the econimic wave solder, top lead free wave solder and high-end of large size wave solder. All of our machines are not only used wildly in electronic circuit, LED industry, instruments and apparatuses, but also in household appliances, such as washing machine, microwave, television ect.

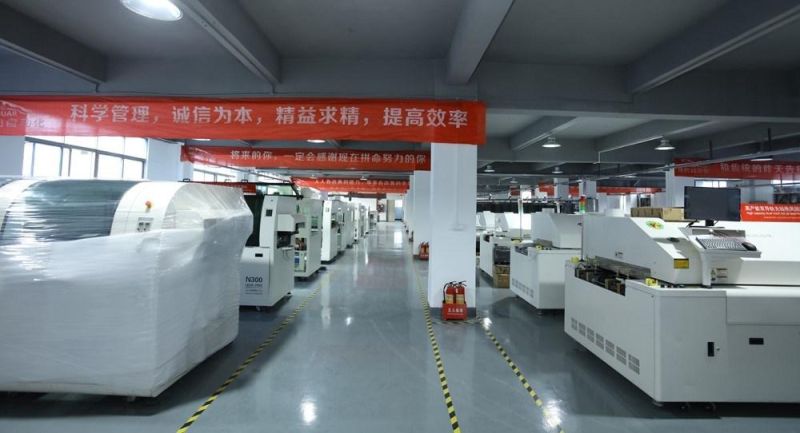

Our Factory:

More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC


Successful Experience:

JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.



Customer and Feedback:


Exhibitions:

Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey


Our Certificates:

We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications


Packing and shipping:


What we can do for you?

1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT
