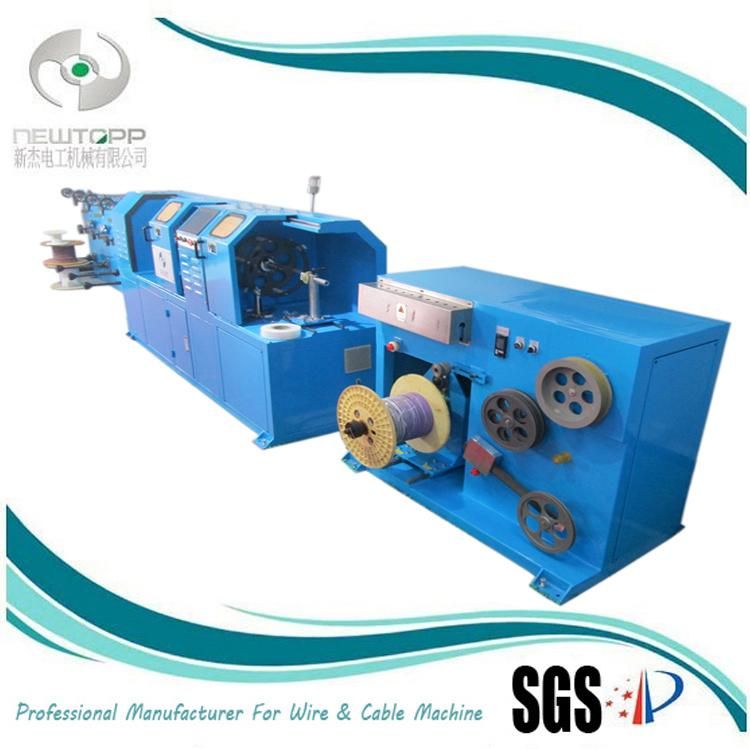

Three Core Wrapping Machine/500 Twisting Machine with Baxk-Twist/Cable Machine
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
- Mould Life：>1,000,000 Shots
Base Info
- Model NO.：XJ-500
- Type：High-speed Stranding Machine
- Motor：Siemens
- Inverter：Yaskawa
- Bearing：NSK
- Transport Package：Standard Shipping Packing
- Specification：XJ500
- Trademark：NEWTOPP
- Origin：China
- HS Code：8479400000
- Production Capacity：200 Sets,Year
Description
Basic Info.
Model NO. XJ-500 Type High-speed Stranding Machine Motor Siemens Inverter Yaskawa Bearing NSK Transport Package Standard Shipping Packing Specification XJ500 Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 200 Sets/YearProduct Description
Application field:It's used in USB3.0,HDMI,DP and so on special technology high frequency wire back twist,twist and wrapping.
Products feature:
1.Wire specification:AWG34-AWG26 Back-twist rate:100%2.Taping material:Aluminum foil tape,cotton paper tape,transparent tape,mica tape,teflon tape etc.3.Twisted bow rotate speed:MAX 1200rpm.4.Pitch range;3.0-80mm electric pitch(setting on touch screen)5.Host machine power:15HP Wrapping rotate speed:MAX2000rpm6.Wrapping tension:Taping tension keep constant from start to end.Needn't any manual regulation.7.Take-up tension:Take-up tension keep constant from start to end.Needn't any manual regulation.8.Take-ups type:Shaft-row take-ups,no damaged during the traversing process,traversing space and distance can be set freely.9.Pay-offfs type:Active pay-offs,tension auto-adjustment,auto-correct with break line protection.
Machine parts:
| No. | Parts name&Specs. | Qty |
| 1 | Host machine | 1set |
| 2 | Φ255mm capstan | 1set |
| 3 | Φ350mm horizontal center taping machine | 1set |
| 4 | Electrical control cabinet | 1set |
| 5 | XJ-300-C heating melt control device | |
| 6 | Φ400-500mm axis-row tak-up |
Main Parts Brand:
1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to install the machine, and how to use the machine.
* Customized design support. * Engineers available to service machinery overseas.
* View our Factory.
About us
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which professional in design and manufacture high-end wire and cable equipment,manily have the whole factory production line solution of Civil construction/power wire&cable,whole factory production line solution of Lan cable cat8/5E/6/6A/7,whole factory production line solution of HDMI,USB,SATA,RG59,6 etc. High frequency wire and cable,equipment include the copper bunching machine,teflon extrusion machine,insulation extrusion machine, chemical foaming extrusion machine,physical foaming extrusion machine,jacket sheath extrusion machine,planetary type cage twisting/stranding machine, numerical control type double layers/multi layers taping machine,cantilever type single twisting/stranding machine,Lan cable back-twist pair twisting/stranding machine etc. For more information please log in our official website http://dgnewtopp.en.made-in-china.com or feel free to contact us directly.
