• Model NO.：XJ 6C+6C+6C

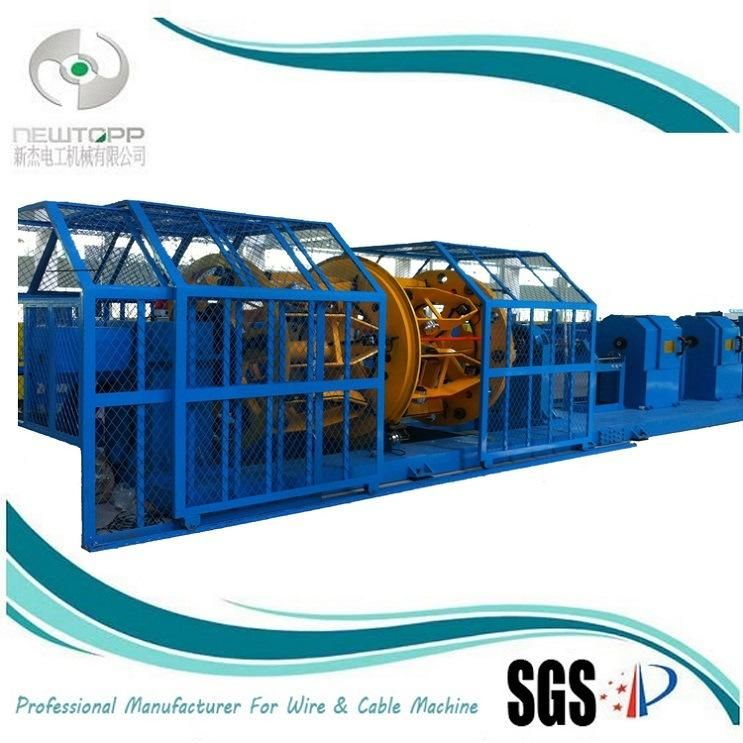

• Type：To Back Stranding Machine
• Voltage：220-660V or Other Voltage
• Wire Specification：AWG24-AWG12
• Transport Package：Standard Shipping Packing
• Specification：XJ 6C+6C+6C
• Trademark：NEWTOPP
• Origin：China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ 6C+6C+6C Type To Back Stranding Machine Voltage 220-660V or Other Voltage Wire Specification AWG24-AWG12 Transport Package Standard Shipping Packing Specification XJ 6C+6C+6C Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

Application field:


Apply for high requirement special standard telecommuncation wire&cable standing processing.Mainly wire and cable are USB3.1,multi-core medical cable,drag chains wire.new energy charging wire,QSFP etc high-end standing and double center taping can be finished all at once.




Machine  technical parameter:
1.wire specification:Φ0.5-2.0mm2.Twisted OD:Φ2.0-15mm3.Pitch range:20-500mm4.Machine power:15HP5.Rotate speed:MAX200rpm6.Take-ups type:6+6 heads equal proportion layout7.Back-twist rate:100% Non-polar adjustment8.Back-twist heads:6+6+69.Wrapping tension:High speed centering wrapping,auto tension tracking,wrapping tension keep constant from start to end,no needadjustment10.Pay-off tension:Magnetic power tension,meter counter and auto tracking,tension keep constant from start to end,no need adjustment.11.Traversing;Servo traversing,no damage during traversing,distance can be set freely according to wire specification.








Machine parts:

No.	Parts name&Specs.	Qty
1	6C+6C+6C pay off device	1set
2	Dual layers centering taping device	1set
3	¢477mm dual-wheel capstan device	1set
4	¢1000 Axis row-type take up machine	1set
5	Electrical control cabinet	1set
6	Eye mould base( integrated with host machine)	1set

Main parts brand

1.Motor: Siemens
2.Frequency converter: Yaskawa
3.Bearing: NSK  (Japan brand)
4.Electrical component: Siemens or Omron
5.PLC controller: Siemens
6.Touch screen: Tontek (Taiwan)




Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.
