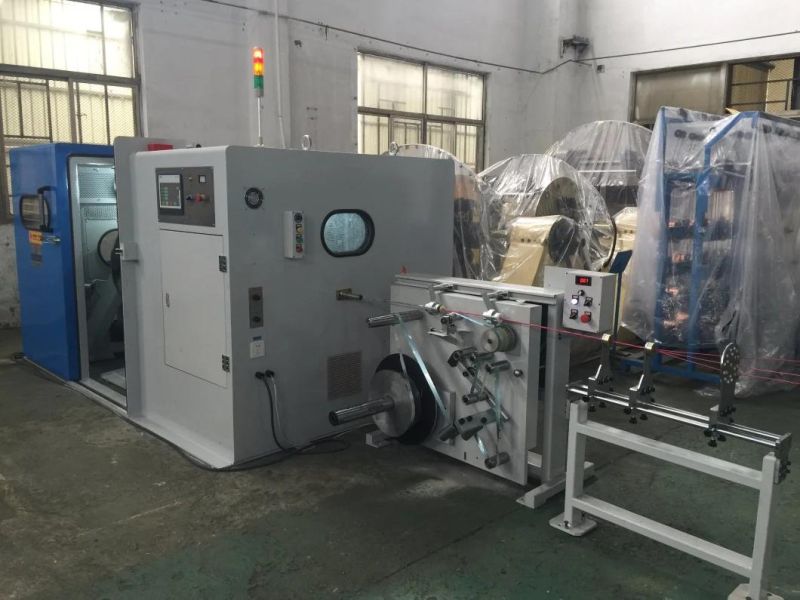

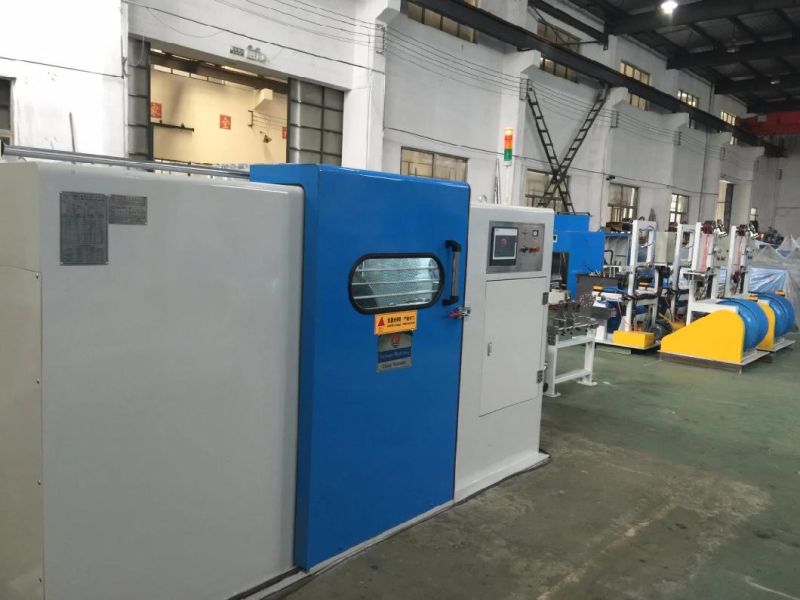

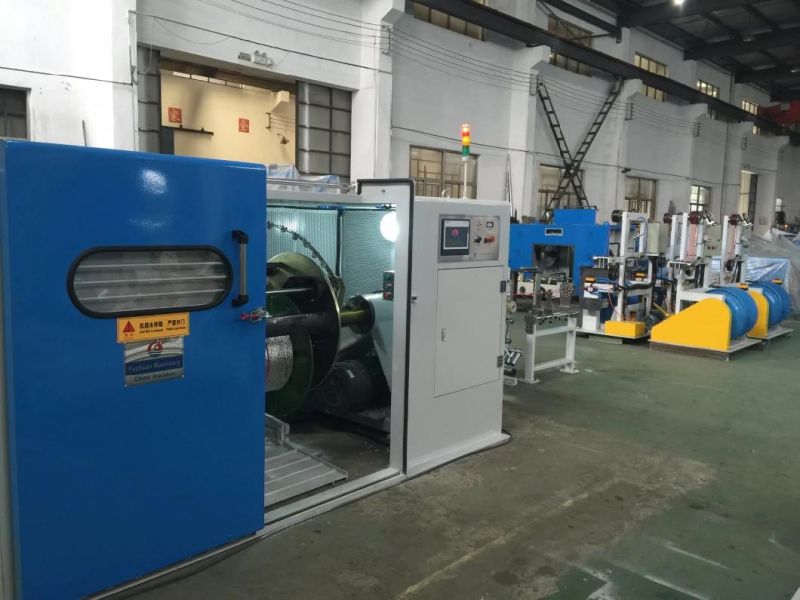

0.38-1.7mm Tinned Wire, Copper Wire, Electrical Core Wire Twisting Bunching Twister Coiling Machine

Kunshan Fuchuan Electrical and Mechanical Co., Ltd.
  • After-sales Service：12months
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO, CE
  • Warranty：12 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：FC-300B,400B,500B,650B,800B,1000B,1250B
  • Mould Life：300,000-1,000,000 Shots
  • Type：Double Stranding Machine
  • Twisting 7PCS Bare Copper Wires：Twist Tinned Wire, Silver Jacketed Wire, Enamelled
  • Double Twisting for Core Wires：Wire From Wire Diameter 0.38 to 1.7
  • Stranding Section Area：From 1.0 to 16 mm2
  • Max Rotating Speed：1500rpm
  • Take up Bobbin Size：Diameter 800mm
  • Main Motor Power：15kw
  • Tension Control Method：Touch Screen+PLC+Magnetic Powder Clutch
  • Protection：Machine Will Automaticlly Brake When Wire Inside
  • Traversing Method：Rolling Ring Drive Units,Winding Pitch and Breadth
  • Brake Mode：Electromagnetic Break
  • Transport Package：Simply Packed
  • Specification：ISO9001
  • Trademark：FC
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：60set,Month

Description

Basic Info.

Model NO. FC-300B/400B/500B/650B/800B/1000B/1250B Mould Life 300,000-1,000,000 Shots Type Double Stranding Machine Twisting 7PCS Bare Copper Wires Twist Tinned Wire, Silver Jacketed Wire, Enamelled Double Twisting for Core Wires Wire From Wire Diameter 0.38 to 1.7 Stranding Section Area From 1.0 to 16 mm2 Max Rotating Speed 1500rpm Take up Bobbin Size Diameter 800mm Main Motor Power 15kw Tension Control Method Touch Screen+PLC+Magnetic Powder Clutch Protection Machine Will Automaticlly Brake When Wire Inside Traversing Method Rolling Ring Drive Units,Winding Pitch and Breadth Brake Mode Electromagnetic Break Transport Package Simply Packed Specification ISO9001 Trademark FC Origin China HS Code 8479811000 Production Capacity 60set/Month

Product Description


0.38-1.7mm Tinned Wire, Copper Wire, Electrical Core Wire Twisting Bunching Twister Coiling Machine
0.38-1.7mm Tinned Wire, Copper Wire, Electrical Core Wire Twisting Bunching Twister Coiling Machine
0.38-1.7mm Tinned Wire, Copper Wire, Electrical Core Wire Twisting Bunching Twister Coiling Machine
0.38-1.7mm Tinned Wire, Copper Wire, Electrical Core Wire Twisting Bunching Twister Coiling Machine
0.38-1.7mm Tinned Wire, Copper Wire, Electrical Core Wire Twisting Bunching Twister Coiling Machine
0.38-1.7mm Tinned Wire, Copper Wire, Electrical Core Wire Twisting Bunching Twister Coiling Machine

Series for model B normal wire high speed bunching machine and double twist bunching machine

1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.

2. Usage:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.

3. Technical Parameter:
Single Wire Dia: φ 0.38~φ 1.7mm
Bunching Section Area: 1.0~16mm2
Pitch: 20-160(34 kinds of pitches)
Direction of Lay: Optional for right or left
Take-up Bobbin: φ 800*φ 80*600mm
Max Rotating Speed: 1600(3200twist)
Main Motor Power: 15KW
Inverter Power: 15KW
Tension Control Method: Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch: 10kgf
Protection: Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake Mode: Electromagnetic Brake
Traversing Method: Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode: Touch Screen Operation
Dimension: 3800L*2000W*1900H

For more details, please feel free to contact me.
