• Model NO.：FC-300B,400B,500B,650B,800B,1000B
• Type：High-speed Stranding Machine
• Model：FC-300e,400e,500e
• Core Wire Dia：0.5mm-2.0mm
• Core Wire Stranding Outer Dia：1.0-4.0mm
• Outer Pay off Type：Active Pay off
• Inner Pay off Type：Magnetic Tension Pay off
• Pay off Motor Power：1.5kw
• Tension Control Method：Touch Screen+PLC+Magnetic Powder Clutch
• Inner Magnetic Powder Clutch：1.2kgf
• Precision：High Precision
• Customized：Customized
• Transport Package：Simply Packed
• Specification：ISO9001
• Trademark：FC
• Origin：Suzhou City. China
• HS Code：8479811000
• Production Capacity：20PCS,Set

Basic Info.

Model NO. FC-300B/400B/500B/650B/800B/1000B Type High-speed Stranding Machine Model FC-300e/400e/500e Core Wire Dia 0.5mm-2.0mm Core Wire Stranding Outer Dia 1.0-4.0mm Outer Pay off Type Active Pay off Inner Pay off Type Magnetic Tension Pay off Pay off Motor Power 1.5kw Tension Control Method Touch Screen+PLC+Magnetic Powder Clutch Inner Magnetic Powder Clutch 1.2kgf Precision High Precision Customized Customized Transport Package Simply Packed Specification ISO9001 Trademark FC Origin Suzhou City. China HS Code 8479811000 Production Capacity 20PCS/Set

Product Description

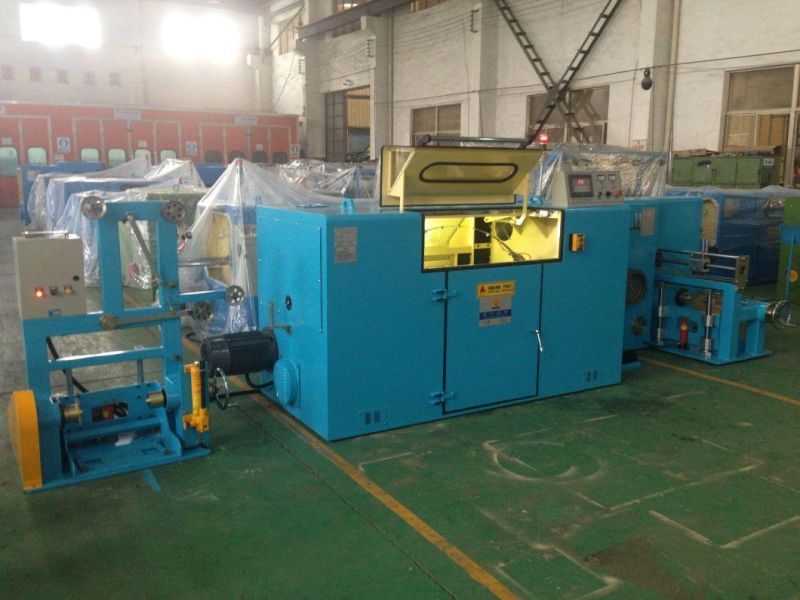

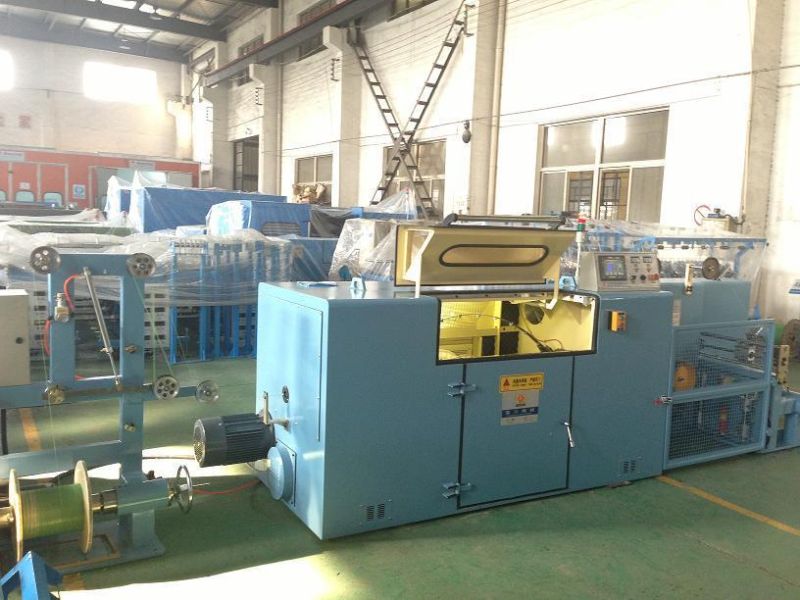

 Merits: It is applied to high frequency date cable, LAN cable (CAT6 cable). Non twist after double twisting, make the insulated core wire interlace uniformly, avoid the nonuniform twist force,thus make the finished wire with the uniform ,precision pitch. this machine is developed for the high speed data wire & cable(contain the USB2.0, USB3.0, CATE-6E, HDMI and other wire) ,combined the functions and merits of non-twist stranding machine and high speed wrapping machine. the 2 machine can operate separatly and simultaneously.                                       Device structure: Active pay off, Non-twist stranding machine, High frequency spark tester ,Wrapping machine, Take-up and other parts.
1.core wire dia:0.5-2.0mm
2.core wire stranding outer dia:1.0-4.0mm
3.pitch:10-90(24zones)
4.Pay off bobbin size:400*56*300mm
5.Outer pay off type:active pay off

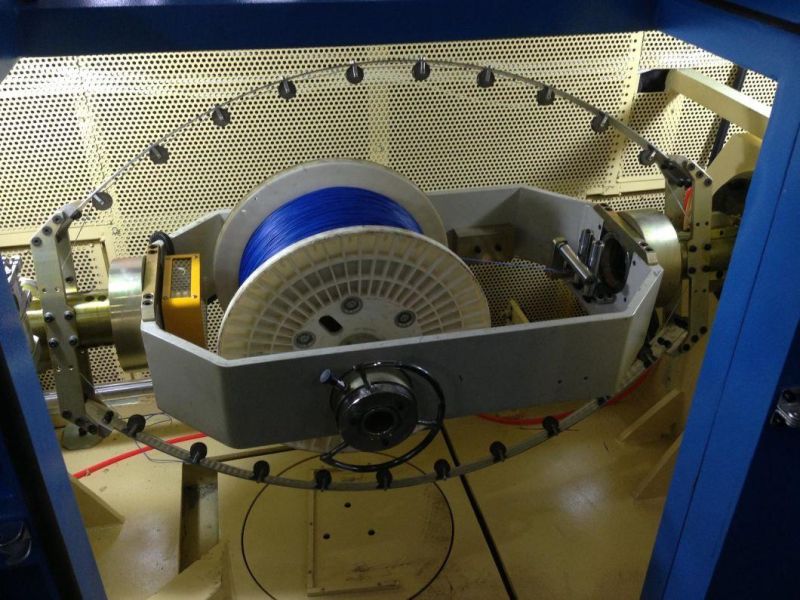

6.Inner pay off type:magnetic tension pay off
7.Take up bobbin size:500*56*375
8.Pay off motor power:1.5kw
9.Main motor power:5.5kw
10.Tension control method:touch screen+plc+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin.
11.Inner magnetic powder clutch:1.2kgf
12.Magnetic powder clutch:5kgf
13.Traversing method:Rolling ring drive units,winding pitch and breadth are adjustable.
14.Operation mode:Touch screen operation
