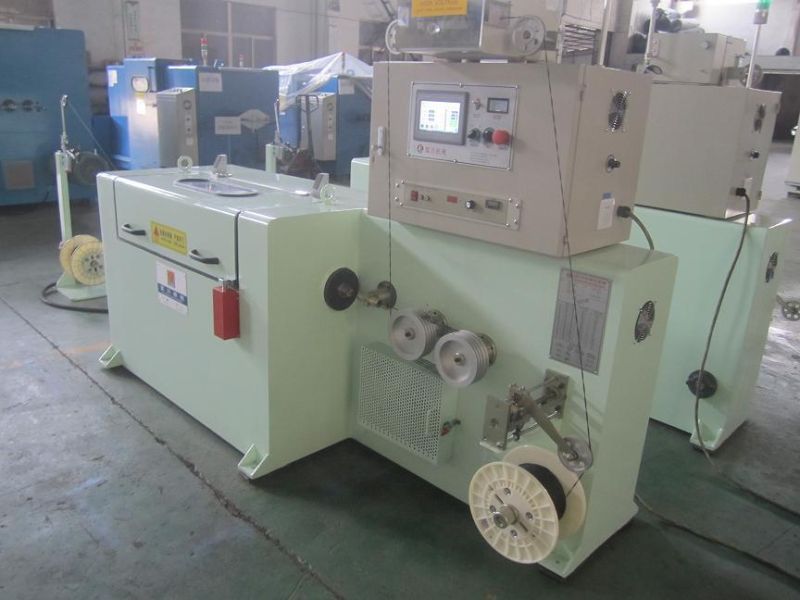

Electric Cable Wire Core Wire Double Twist Making Extrusion Extruder Twisting Bunching Buncher Stranding Machine

Kunshan Fuchuan Electrical and Mechanical Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：ISO
  • Automatic Grade：Automatic
  • Twist Machine with Back-Twist：Core Wire
  • Core Wire Single Wire Dia：0.5-2.0mm

Base Info

  • Model NO.：FC-400E
  • Core Wire Stranding Outer Dia：1.0-4.0mm
  • Pay off Motor Power：1.5kw
  • Main Motor Power：5.5kw
  • Inner Magnetic Powder Clutch：1.2kgf
  • Take up Magnetic Powder Clutch：5kgf
  • Break Mode：Electromagnetic Break
  • Operation Mode：Touch Screen Operation
  • Transport Package：Poly Film
  • Specification：ISO9001
  • Trademark：FC
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：30set,One Month

Description

Basic Info.

Model NO. FC-400E Core Wire Stranding Outer Dia 1.0-4.0mm Pay off Motor Power 1.5kw Main Motor Power 5.5kw Inner Magnetic Powder Clutch 1.2kgf Take up Magnetic Powder Clutch 5kgf Break Mode Electromagnetic Break Operation Mode Touch Screen Operation Transport Package Poly Film Specification ISO9001 Trademark FC Origin China HS Code 8479811000 Production Capacity 30set/One Month

Product Description


Electric Cable Wire Core Wire Double Twist Making Extrusion Extruder Twisting Bunching Buncher Stranding MachineElectric Cable Wire Core Wire Double Twist Making Extrusion Extruder Twisting Bunching Buncher Stranding Machine


1. Merits:

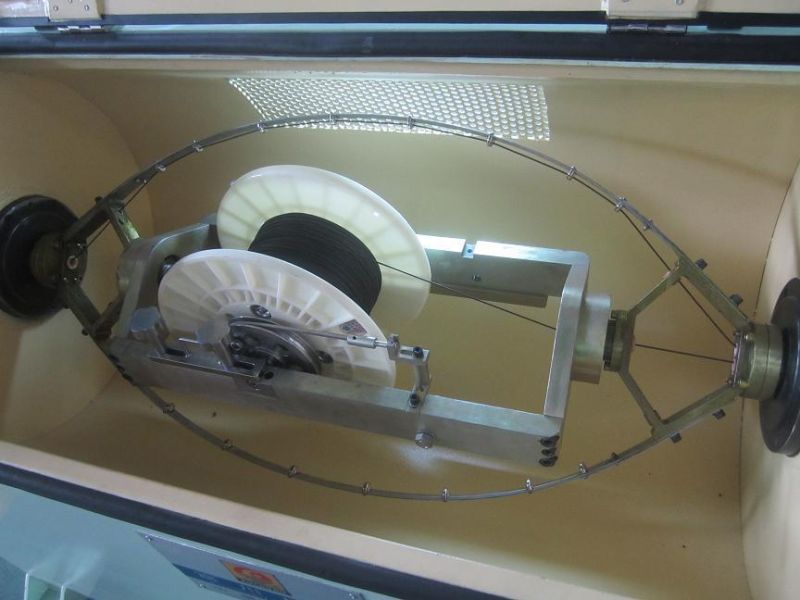

With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Apllication:
It is applied to the twisting two core wires
3. Tech. Parameter:
Core Wire Dia: φ 0.6~φ 3.0mm
Finished wire Dia: φ 1.2~φ 6.0mm
Pitch: 3.8-50 24phase
Direction of Lay: Optional for right or left
Take-up Bobbin: φ 400*φ 56*300
Max Rotating Speed: 3000(6000twist)
Main Motor Power: 3.7KW
Inverter Power: 3.7KW
Loading: 80KG
Tension Control Method: Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch: 0.6kgf
Protection: Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake Mode: Electromagnetic Brake
Traversing Method: Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode: Touch Screen Operation
Dimension: 2600L× 1250W× 1450H

For more details, please contact me.
