• Model NO.：FC-650C-2
• Type：High-speed Stranding Machine
• Usage：Bare Copper Wire,Tinned Wire,Silver Jacketd Wire,
• Conductor Single Wire Diameter：0.15mm-1.04mm
• Conductor Stranding Section Area：0.5-6mm2
• Core Wire Single Wire Dia：1.0mm-3.0mm
• Core Wire Stranding Outer Dia：2.0mm-6.0mm
• Pitch：11.48mm-100mm(36zones)
• Direction of Lay：Optional for Right or Left
• Take up Bobbin Size：630*56*475,630*127*475
• Max Rotating Speed：1600rpm(3200twist)
• Tension Control Method：Mechanism Friction
• Transport Package：Simply Packed
• Specification：ISO
• Trademark：FC
• Origin：China
• HS Code：8479811000
• Production Capacity：60PCS,Month

Basic Info.

Model NO. FC-650C-2 Type High-speed Stranding Machine Usage Bare Copper Wire,Tinned Wire,Silver Jacketd Wire, Conductor Single Wire Diameter 0.15mm-1.04mm Conductor Stranding Section Area 0.5-6mm2 Core Wire Single Wire Dia 1.0mm-3.0mm Core Wire Stranding Outer Dia 2.0mm-6.0mm Pitch 11.48mm-100mm(36zones) Direction of Lay Optional for Right or Left Take up Bobbin Size 630*56*475/630*127*475 Max Rotating Speed 1600rpm(3200twist) Tension Control Method Mechanism Friction Transport Package Simply Packed Specification ISO Trademark FC Origin China HS Code 8479811000 Production Capacity 60PCS/Month

Product Description

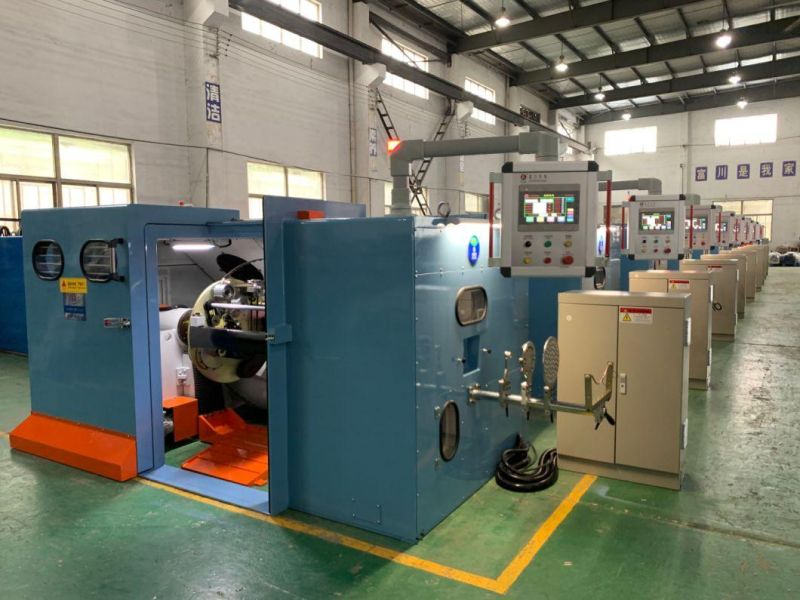

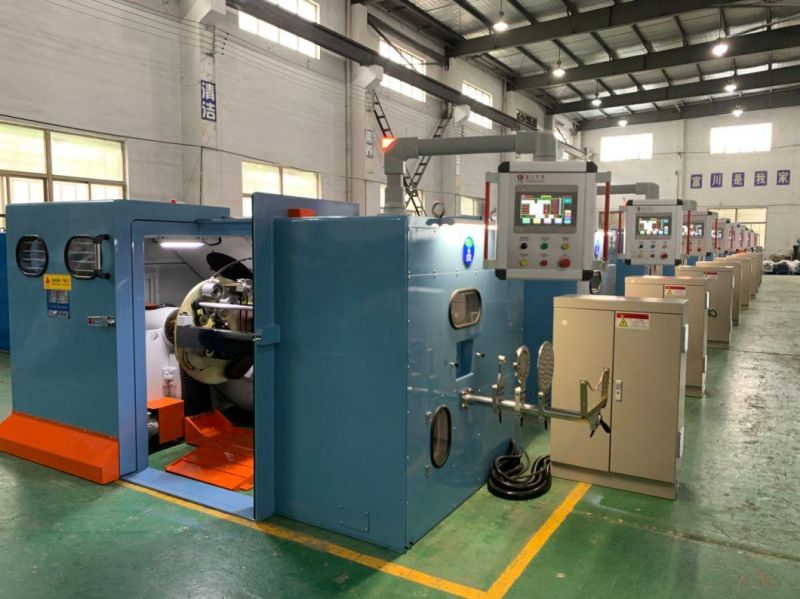

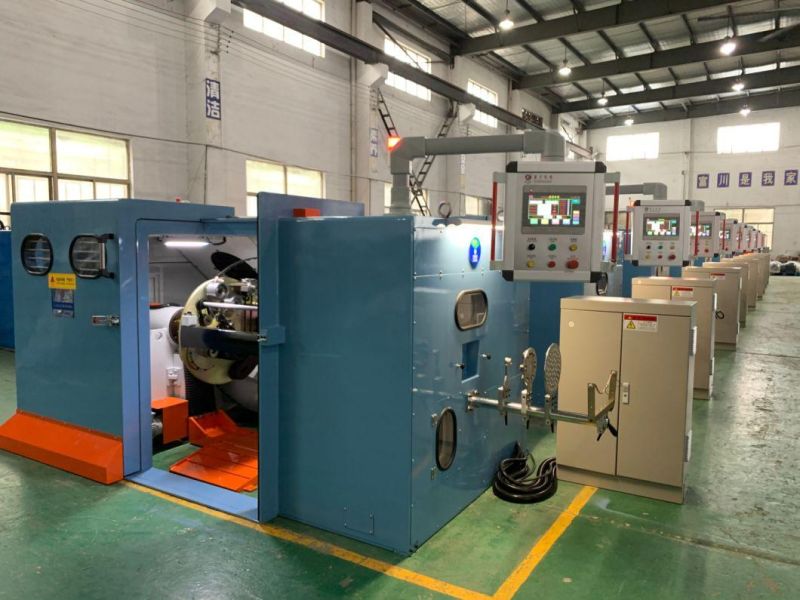

Main performance parameters of FC-650C-2 automatic high speed bunching machine (replace of the capstan wheel to change the lay length).

1. Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.

2.Diameter of single copper wire: φ0.12~φ0.45mm
3.Outer diameter of wire: φ0.70~φ2.05mm;
4.Cross section area: φ0.30~φ2.5mm²
5.Size of take up spool: φ630mm×475mm×φ125mm(according to client's drawings to make).
6. Maximum rotating speed: 2600RPM
7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 34 section 11.6~67mm (enclose list of standard lay length).
9. Main motor:11KW AC motor +frequency converter
10. Weight of copper load: about 400kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: about 80dB
19.Dimension: (length×breadth×height): 3650×2000×2200mm
20. Weight:5500Kg
21. Coating:Ral5015sky blue (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring
26. Accessories: details for list
