• Model NO.：Jaguar M8
• Heating Number：up 8, Bottom 8
• Heating Length：2900mm
• Heating Method：Hot Air
• PCB Max Width：350mm
• Transport Method：Mesh and Chain
• Transport Speed：0-1500mm,Min
• Power Supply：5 Line 3 Phase 380V 50,60Hz
• Normal Power：5kw
• Warm up Time：20 Min
• Transport Package：Wooden Box
• Specification：CE
• Trademark：JAGUAR
• Origin：China
• HS Code：85151900
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. Jaguar M8 Heating Number up 8/ Bottom 8 Heating Length 2900mm Heating Method Hot Air PCB Max Width 350mm Transport Method Mesh and Chain Transport Speed 0-1500mm/Min Power Supply 5 Line 3 Phase 380V 50/60Hz Normal Power 5kw Warm up Time 20 Min Transport Package Wooden Box Specification CE Trademark JAGUAR Origin China HS Code 85151900 Production Capacity 100 Sets/Month

Product Description

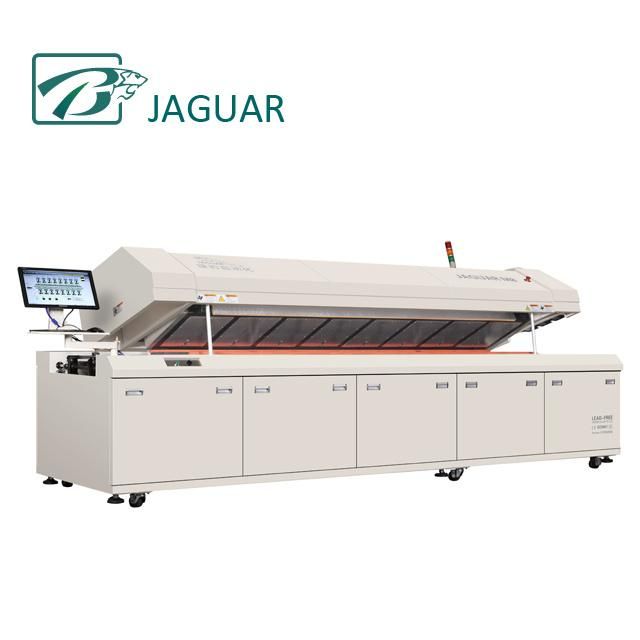

                                  high precision reflow oven soldering machine


keywords: reflow oven, smd machine,smt machine,solder machine,smd soldering machine,automatic soldering machine,smt machines, led soldering machine, auto soldering machine, smt production line, smt automation, pcb assembly machine, led assembly machine,pcb assembling machine,pick and place soldering machine
SPECIFICATION:

Model	JAGUAR M8
Heating number	UP 8/ BOTTOM 8
Heating length	2900MM
Heating method	hot air
Number of cooling zone	1
PCB max width	350MM
Conveyor direction	L→R(or R→L)
Transport belt height	880±20mm
Transport method	Mesh and chain
Transport speed	0-1500mm/min
Power supply	5 line 3 phase 380V 50/60Hz
Start power	38kw
Normal power	5KW
warm up time	About 20 min
Temperature control range	Room temperature-300ºC
Temperature control method	PID close loop control & SSR driving
Temperature precision	±1ºC
Temperature direction on PCB	±2ºC
Abnormal alarm	Temperature abnormal(extra-high or extra-low temperature)
Outside dimension(L×W×H)	3600×1000×1490mm
Weight	900KG
Operating system	Windows XP
Mesh width	400mm

Tech-Specifications :
No.1 The unique advanced long life heating system
1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .
2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace .
3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .
4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB .the whole top oven fixtures can open completely so that easy to clean the oven inside .
No.2 Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1500mm/min.
2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .
3.Special stainless belt: durable and wear-resistant, not easy to deform and long life.
No.3 Stable and reliable electrical control system
1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .
2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .
3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5 .Failure diagnosis and sound light alarm.
6.Delay shutdown protection function, uniform cooling after the shutdown:prevent component deformation .
