• Model NO.：Jaguar R12
• Number of Cooling Zones：2
• Length of Heating Zones：4600mm
• Heating Mode：Hot Air
• Max. Width of PCB：450mm
• Mesh Belt Width：500mm
• Transmission Type：Mesh and Chain
• Range of Rail Width：0-450mm
• Conveyor Speed：0-2000mm,Min
• Transport Package：Wooden Box
• Specification：CE
• Trademark：JAGUAR
• Origin：China
• HS Code：85151900
• Production Capacity：100 Sets,Month

JAGUAR R12



Heating SystemNumber of heating zonesUP 12/BOTTOM 12Number of cooling zones2Length of heating zones4600mmHeating modehot air
Cooling ModeAir Oven:Forced air; Nitrogen Oven: Water ChillerExhaust Volume10m³/min * 2 exhausts




Conveyor SystemMax. Width of PCB450mmMesh belt width500mmTransmission DirectionL→R(or R→L)Transmission Net Height900±20mmTransmission typeMesh and chainRange of rail width0-450mmConveyor speed0-2000mm/minAuto/manual LubricationstandardFixed rail sideFront rail fixed(option: rear rail fixed)Components highTop and bottom 25mm







Control systemPower supply5 line 3 phase 380V 50/60HzTotal power60kwStarting power58kwNormal power consumption12KWWarming timeAbout 20 minsTemp. setting rangeRoom temperature-300ºCTemp. control methodPID close loop control & SSR drivingTemp. control precision±1ºCTemp. deviation on PCB±2ºCData storageProcess Data and status storage(80GB)Nozzle plateAluminum Alloy PlateAbnormal AlarmAbnormal temp. (extra-high/extra-low temp.)Board dropped alarmTower light:Yellow-warming, Green-normal, Red-abnormal
GeneralDimension(L*W*H)6000×1400×1550mmWeight2800KGColorComputer grayIntroduction:
1.Windows XP system with English and Chinese is easy to learn how to operate and can be change any time.
2. The digital control system adopted with PLC and Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out and saving data.
4. Temperature and blower speed can be controlled independently, to meet the high-precision requirements.
5.Effective heating zone length, the heat conduction in full uniform distribution, greatly improving the heating efficiency.
6.Forced cooling system with efficient cooling speed suits all different kinds of lead-free soldering paste.
7.PLC and PID closed loop control to achieve high precision temperature control and repeatable profiles.
8. Standard 12 couples of up and down zones with patented air management system to make hot air convection more efficient and faster thermal compensation.
9.The rail is dealt with hardened process to make it more stability.
10.Nitrogen with machine is option.

Our services:
Shenzhen Jaguar Automation Equipment Co.,Ltd is one of the leaders in SMT machine in China.
Then what we can do for you if you want to set up a SMT factory?

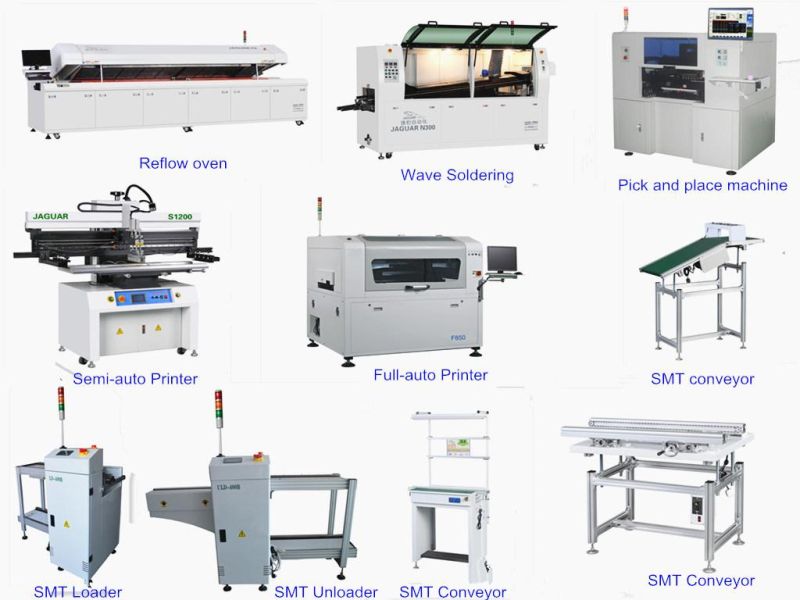

1. we can provide full SMT solution.
2. we can provode you with top technical support.
3. we have enrich experience on SMT factory set up.
4.we can provide the best professional tech service.
5.we can help you to deal with all the trouble about SMT.

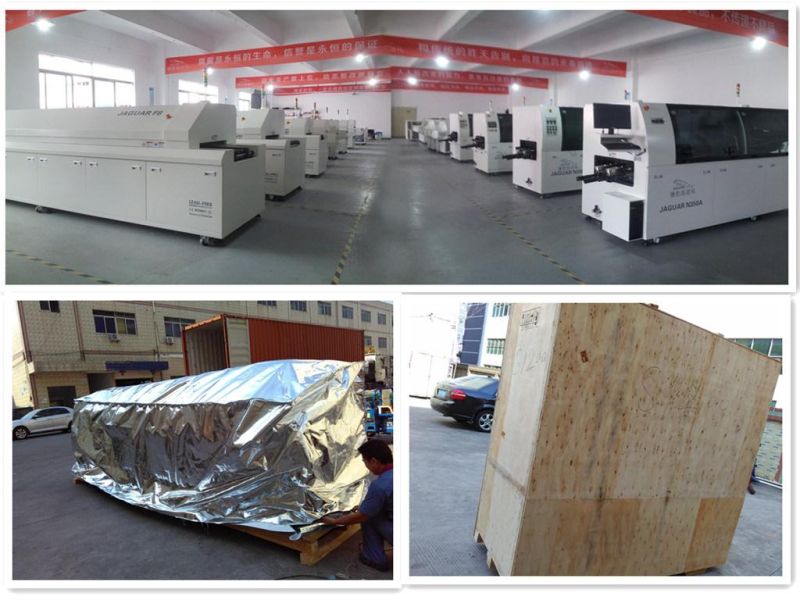

Machine in Stock ready for shipment:
Package detailed as following:

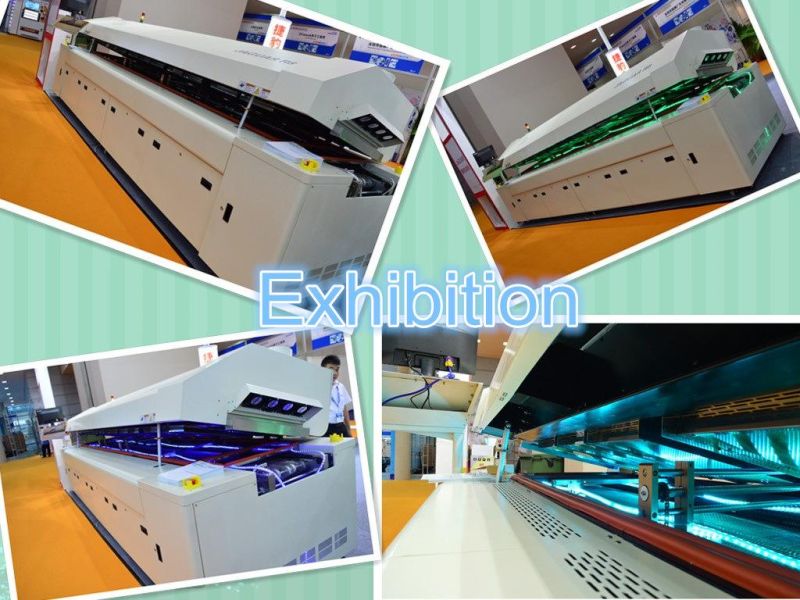

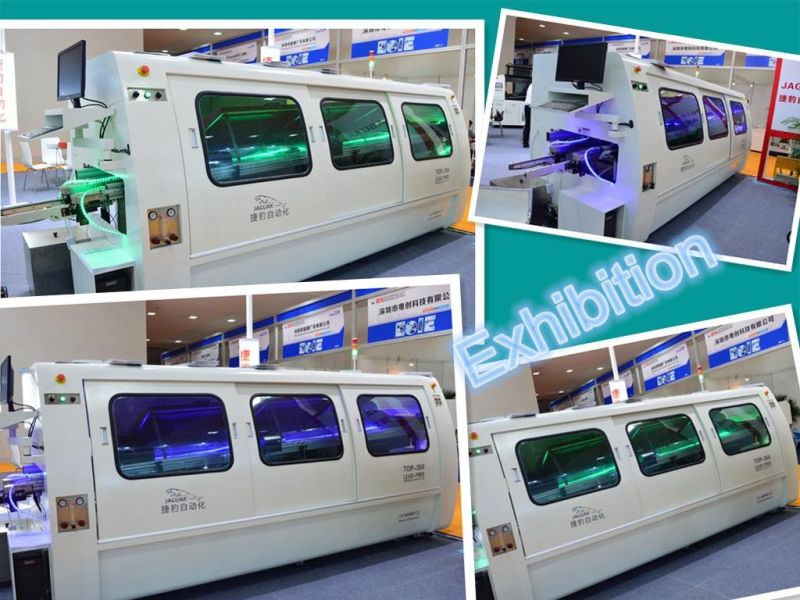

Our Exhibition:
