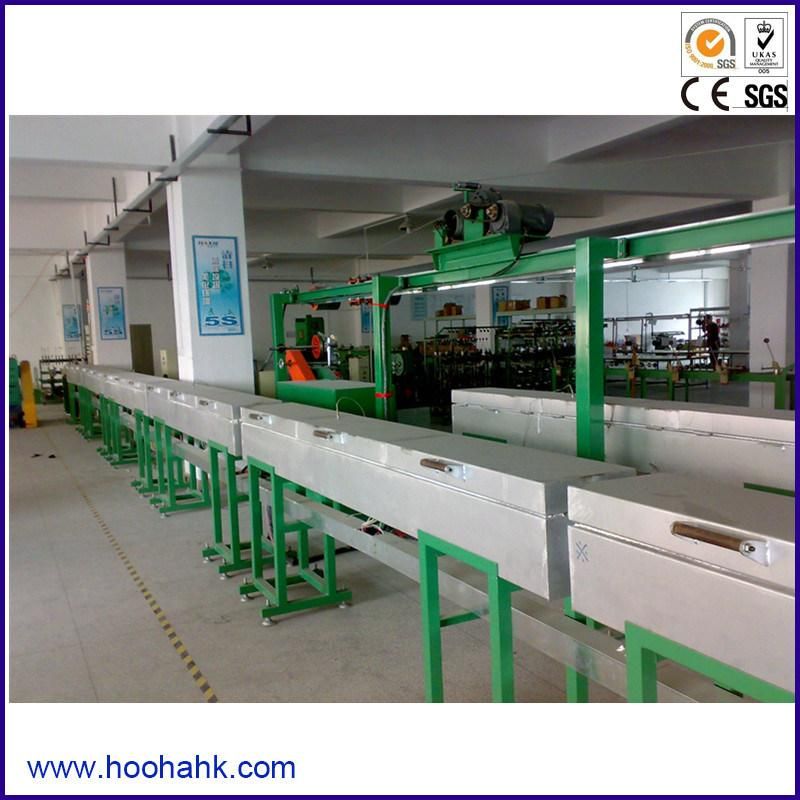

Customized High Temperature Silicone Cable Extrusion Machine
HOOHA Co., LIMITED- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Screw Design：Single-Screw
Base Info
- Model NO.：65,80
- Voltage：380V
- Power(W)：11kw
- Inverter：Germany-Siemens
- Bearing：Japan-NSK
- Electric Element：Siemens
- Available Material：Silicone Gel
- Finished Wire Diameter：1.5mm-8mm
- Extruding Speed：100m,Min
- Transport Package：Wood Package
- Specification：CE ISO SGS
- Trademark：HOOHA
- Origin：Dongguan
- HS Code：8479400000
- Production Capacity：3 Sets,Month
Description
Basic Info.
Model NO. 65/80 Voltage 380V Power(W) 11kw Inverter Germany-Siemens Bearing Japan-NSK Electric Element Siemens Available Material Silicone Gel Finished Wire Diameter 1.5mm-8mm Extruding Speed 100m/Min Transport Package Wood Package Specification CE ISO SGS Trademark HOOHA Origin Dongguan HS Code 8479400000 Production Capacity 3 Sets/MonthProduct Description
Customized High Temperature Silicone Cable Extrusion MachineSilicone cables are characterized by their high temperature resistance up to + 250°C combined with permanent flexibility.Heat resistant silicone cables are for example used in steel works, rolling mills and foundries for the internal wiring of lamps or in glass and ceramic treatment, fire resistant field , equipment ,lighting lamp , household appliance , electronic equipment connecting , alluminative lamp , temperature sensor wiring , micro wave oven etc .
Specifications
| Machine model | 45 | 65 | 90 | 115 |
| Main motor power(HP) | 10 | 20 | 30 | 50 |
| Extrusion volume(kg/h) | 30 | 60 | 150 | 250 |
| Screw diameter(mm) | 45 | 65 | 90 | 115 |
| L/D of screw | 12:1 | 12:1 | 14:1 | 14:1 |
| Wire pay-off tray(mm) | 300-500 | 400-630 | 800-1250 | 1250-1600 |
| Wire pay-off diameter(mm) | 0.2-3.0 | 0.3-5.0 | 5.0-50 | 6-65 |
| Finished OD(mm) | 0.8-5.0 | 1.8-8.0 | 9.0-60 | 10-75 |
| Vulcanize length(M) | 12 | 16 | 24 | 28 |
| Heater power | 3zone,36kw | 3zone,48kw | 6zone,72kw | 6zone,84kw |
| Traction motor power(kw) | 3 | 4 | 7.5 | 11 |
| Production speed(m/min) | 6-80 | 6-80 | 4-40 | 4-40 |
| Coiler(mm) | 400-500 | 400-630 | 1250-1600 | 1250-1600 |
We focuses on wire and cable making solution:
1)The overall operation suggestions of the cable factory
2)Installation and debugging of overall machinery and accessories of the cable factory
3)Cost accounting service of overall mechanical equipment and components
4)Cost accounting service of raw materials and accessories
5)Cost accounting service of overall operation.
6)Talent delivery and training service.
7)Overseas on-site guidance and consulting services for equipment installation.
8)Maintenance,reconstruction and upgrade services of the overall equipment.
Q1:What is your main brand for the electrical and mechanical parts?
A:China famous brand and taiwan brand.
Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like
Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge
Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge
Q5:Could you do the design for the whole plant
A: Yes , we can.
Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .
Q7:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
Q8:How long the guarantee ?
A: one year and charge for repair the whole life.
Q9: Do you have a video tips for the machine running ?
A.Yes , we have,our youtube channel : tiezhong chi /HOOHAWIREMACHINE
