LED Manufacturer′ S Perfect Soldering Solution Jaguar Manufactures Easy Operate Lead-Free 8 Zone
Shenzhen Jaguar Automation Equipment Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Warranty：12 Months
Base Info
- Automatic Grade：Automatic
- Installation：Vertical
- Name：Lead Free Reflow Oven
- Function：PCB Components Soldering
- Application：SMT SMD
- Heating Zone：up 8 Bottom 8
- Length of Heating Zone：2900mm
- Heating Mode：Hot Air
- Cooling Zone：up 1 Bottom 1
- Conveyor Type：Mesh and Chain
- Max PCB Width on Chain：300mm
- Transportation Speed：0-1000mm,Min
- Temperature Range：Room Temperature-300 Degree
- Temperature Control Mode：Pid and SSR
- Transport Package：Standard Vacuum and Plywood Case
- Specification：4600x1100x1490mm
- Trademark：JAGUAR
- Origin：China
- Production Capacity：20set,Month
- Package size per unit product：480.00cm * 130.00cm * 169.00cm
- Gross weight per unit product：1000.000kg

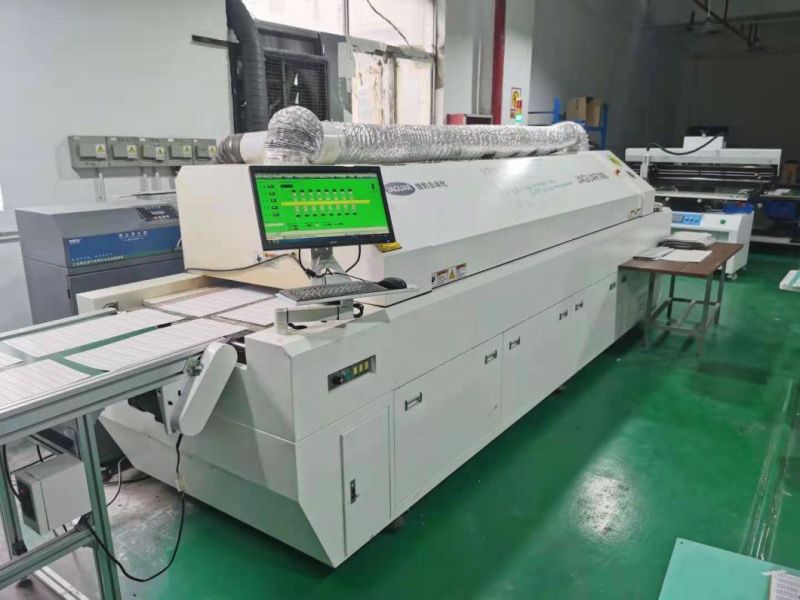

Description
General
Introduction:No.1 The unique advanced long life heating system
- The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector enhance temperature ramp up speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component uniformly heated and eliminate the "shadow effect" efficiently.
- Using special high temperature resistant protection material in heating preservation structure and cast iron in heating passage.
4. Heating zones are structured with porous aluminum air director, hot air is uniformly distributed to the PCB surface. Hood can open completely so as to easily proceed maintenance.
No.2 Stable and reliable conveyor system
1. The conveyor driving system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running extremely stable, speed range can varies between 0-1500mm/min.
2. Independent roller structure support and mesh belt running smooth and the speed precision is up to ±20 mm/min .
3. Mesh belt: durable and wear-resistant, not easy to deform and long life.
No.3 Stable and reliable electrical control system
1. It adopts imported thermostat control which owns fuzzy logic and PID closed loop control system. It can quick response to the changes in heating condition and ensure efficient heat compensation to achieve required temperature.
2. Using thermocouple imported from Taiwan to every heating zone, it can rapid feedback changes in each temperature zone, real-time monitoring to maintain the temperature in each zone.
3 .Special SSR solid state relay matched with dedicated heat dissipating block prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of environmental temperature and calorific value, applying the heating device by minimum pulse, ensuring the high precision of the temperature control & uniform temperature within zones. The zone length, flow direction, temperature distribution, all these are meet with IPC standards.
4. Powerful heating elements, heat up fast, it's only need approx. 20 minutes from room temperature to set-point temperature.
5 .Failure diagnosis, visual & audio alarm.6. Delay shutdown production function, uniform cooling after the shutdown: prevent hard-wares from any thermal damaged.
About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

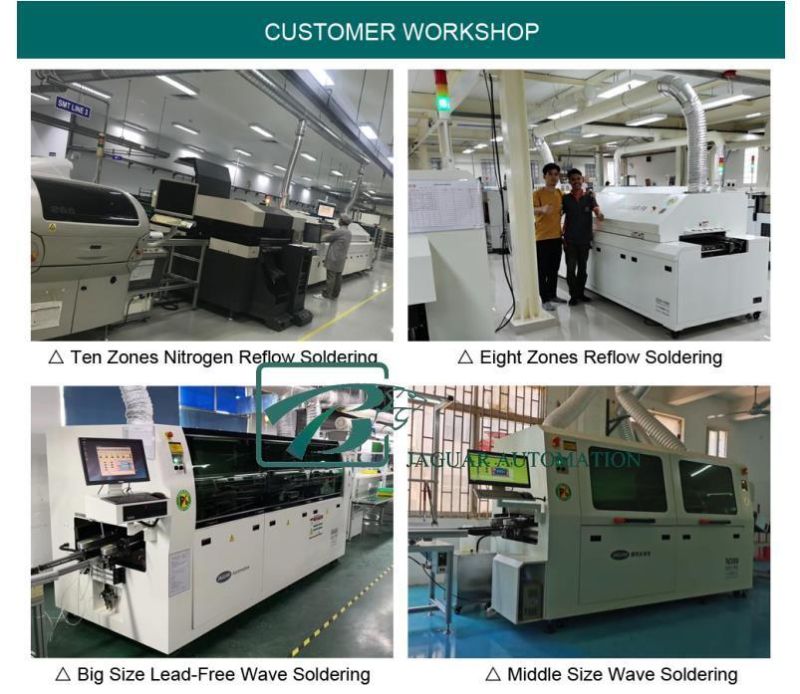

Customer and Feedback:
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
Packing and shipping:
What we can do for you?
1. We provide full SMT and THT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT and THT factory setup
5. We can solve any question about SMT and THT
Please contact me if you need any machine!
Best Regards,
Nona Xiao
JAGUAR AUTOMATION
Add.:14th Building,Furong Industrial Zone,Xinqiao Street, Bao'an District, Shenzhen,China
