• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Desktop
• Name：Reflow Oven
• Applications：All PCB Assembly
• Heating Zone：up 6 Bottom 6
• Length of Heating Zone：2500mm
• Heating Mode：Hot Air
• Cooling Zone：up 1 Bottom 1
• Cooling Mode：Forced Air Cooling
• PCB Flow Direction：L-R or R-L Left to Right, or Right to Left
• Mesh Width：400mm
• Chain Conveyor with Adjustable：0-300mm
• Width Adjustment：Manual, Can Optional Automatic
• Temp. Setting Range：Room Temp-300
• Warming Time：About 20minute
• Control System：PC(Lenovo) PLC(Siemens)
• Transport Package：Wooden Box
• Specification：3700*1100*1490mm
• Trademark：JAGUAR
• Origin：China
• Production Capacity：30 Sets,Month
• Package size per unit product：390.00cm * 130.00cm * 169.00cm
• Gross weight per unit product：900.000kg

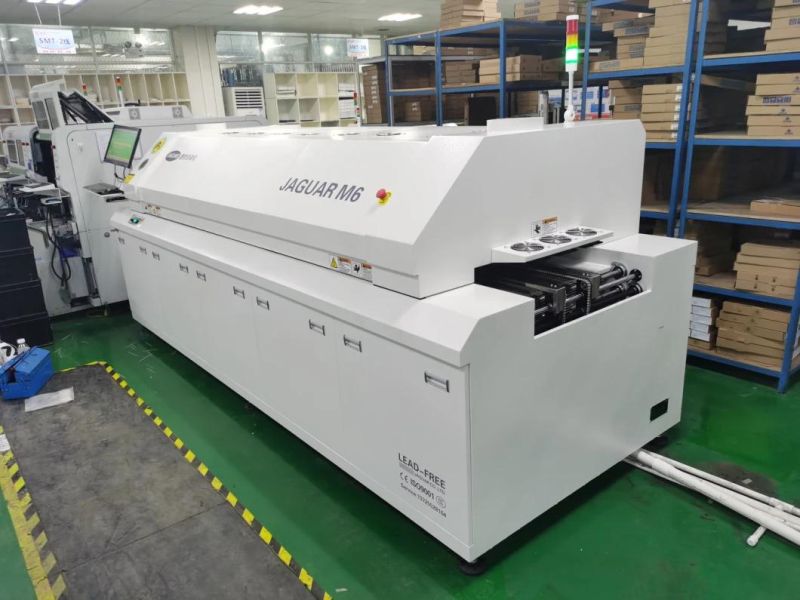

Jaguar M6

Reflow oven Heating System

Number of heating zones

Up 6/ bottom 6

Number of cooling zones

Up1 bottom 1

Length of heating zones

2500mm

Heating mode

Hot air

Reflow oven ConveyorSystem

Max. Width of PCB

300mm

Mesh belt width

400mm

Transmission Direction

L→R(option: R→L)

Transmission Net Height

900±20mm

Transmission type

Mesh and chain

Range of rail width

50-300mm

Conveyor speed

0-1000mm/min

Auto/manual Lubrication

Standard

Fixed rail side

Front rail fixed(option: rear rail fixed)

Components high

Top and bottom 25mm

Reflow oven Control system

Power supply

5 line 3 phase 380V 50/60HZ

Total power

18KW

Starting power

25KW

Normal power consumption

4-7KW

Warming time

20 mins

Temp. setting range

From room temp. To 300ºC

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1.5ºC

Temp. deviation on PCB

±2ºC

Data storage

Process Data and status storage(80GB)

General

Dimension(L*W*H)

3700*1100*1490mm

Weight

900kg

Color

Computer gray

Introduction:

No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving.

2.Using special high temperature resistant protection system in heating preservation system

3.Using imported Taiwan SanYue long axis of high temperature fan motor and W shaped heat pipe, Model design, no noise, shockless and easy for maintenance .

4.Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB

No.2 Smooth and reliable transmission system

1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth ,speed range can be arrived at 0-1000mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .

3.Special stainless belt: durable and wear-resistant, not easy to deform and long life.

No.3 Stable and reliable electrical control system

1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.

2. Using thermocouple imported from Taiwan by each temperature zone.

3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong      the lifetime effectively.

4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.

5 .Failure diagnosis and sound light alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.
