• Model NO.：L8A
• Type：High-speed Chip Mounter
• Max Size of The PCB：1200*350mm
• Speed of Mounting：14000-18000cph
• Short with Feeder：8mm, 12mm, 16mm, 24mm Electric Intelligence Feeder
• Size：2600*760*1500mm
• Weight：700kg
• Max Size of The Moving：1500*410mm
• Max Range of Z-Axi Moving：15mm
• Position Way：Vision Position and Machine Position
• Power Supply：220V 50Hz 4.5kw
• Operating System：Windows XP
• Transport Package：Wooden Package, 1 Set,Package, About 650kg
• Specification：CE, RoHS
• Trademark：Termway
• Origin：China
• HS Code：8479896200
• Production Capacity：20,Month

Basic Info.

Model NO. L8A Type High-speed Chip Mounter Max Size of The PCB 1200*350mm Speed of Mounting 14000-18000cph Short with Feeder 8mm, 12mm, 16mm, 24mm Electric Intelligence Feeder Size 2600*760*1500mm Weight 700kg Max Size of The Moving 1500*410mm Max Range of Z-Axi Moving 15mm Position Way Vision Position and Machine Position Power Supply 220V 50Hz 4.5kw Operating System Windows XP Transport Package Wooden Package, 1 Set/Package, About 650kg Specification CE, RoHS Trademark Termway Origin China HS Code 8479896200 Production Capacity 20/Month

Product Description

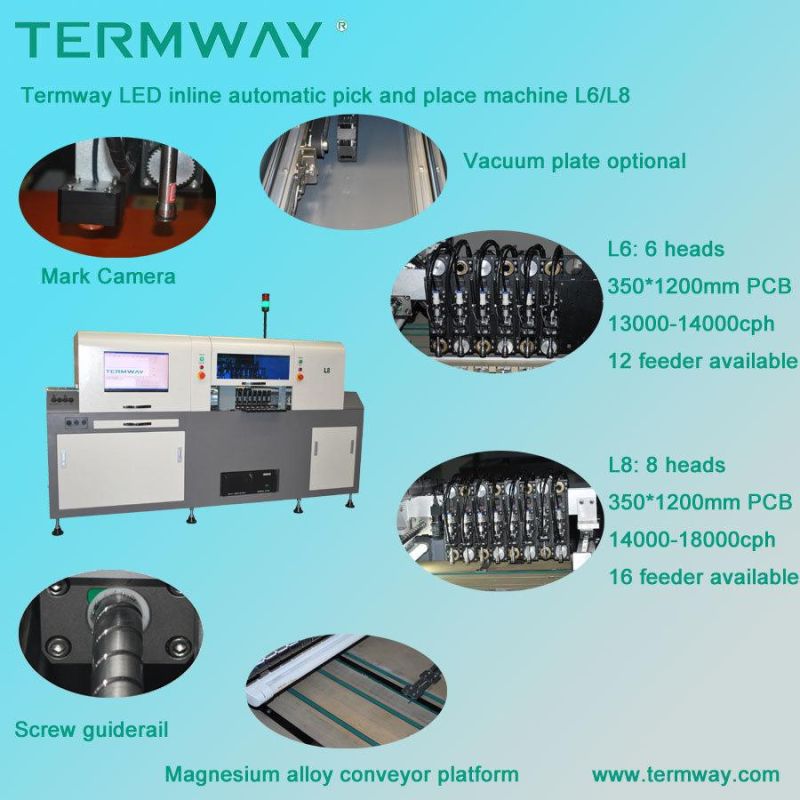

TERMWAY High Precision LED SMT Pick and Place SMT LED Mounter for LED Assembly Machine



The selling point:

1. Using imported precision square rail, effectively improve the placement accuracy.
2. Using a unique high-definition optical prism industrial cameras to complete mount high-precision components.
3. With the vision position system, can automatically identify the MARK point, effectively improve SMT production efficiency and placement accuracy.
4. Automatic visional programming, it is no need to input the coordinates of components by manual, programming is simple, easy to learn for beginners and it is convenient and practical.
5. Standard configuration of automatic nozzle replacement system.
6. Cost-effective automatic placement machine, it is most suitable for mass production in middle scale and personal use.
7. Standard configuration: 4 groups of optical vision registration system, 5 PCS of nozzle and a suit of 48 of 8mm feeder slots of feeder seat.
8. Drive by servo motor with high precision ball screw to achieve, you can complete the duplication of high-precision components mount.
9. Configure variety feeders to meet different mounting of component, max 96PCS of 8mm feeders.
10. Configure the special industrial computer with special software, easy to operate.
11. Easy to input the CAD of the PCB.
12. Can complete the program and mount the Circuit board puzzle stably and simplify.
13. The software can display all the puzzle coordinates, and fine tuning some of the coordinates. To achieve high-precision placement
14. You can set the spacing of each puzzle in the software, and display all the coordinates of discharging based on the distance, also can choose the puzzle no needing to mount in the puzzle.
15. If the circuit board processing have quality problems, can leak location to improve the overall shift.
16. The software can automatically optimize the function of head.
17. Software adds multi-speed transmission features, you can find the best speed through check the moving table and set the speed, so that can increase the stability of the machine in long-time usage.
18. With a high degree of automatic detection and alarm failed components picked up can effectively improve the production quality control.

Standard accessories:
1. Industrial computer ----1 set

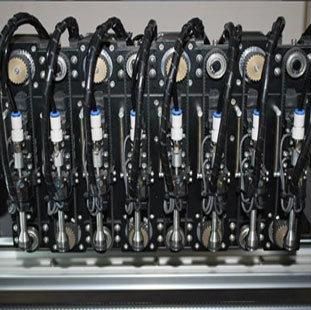

2. Mount heat---- 8 set
3. Vacuum nozzle----8 PCS
4. Vacuum adsorbing platform---- 1 set
5. Feeder bed GFTA-T08--- 1 set
Optional accessories:
1. Automatic feeders: 8mm, 12mm, 16mm, 24mm
2. Vacuum nozzle.
3. Air pump
4. Feeder bed GFTA-T08
5. UPS

Type	L8
Max size of the PCB	1200*350mm
Max size of the moving	1500*410mm
Max Range of Z-Axi Moving	15mm
Expected max speed of mounting	22000cph
Precision	± 0.05mm
Position way	Vision Position and Machine Position
Quantity of feeder	Can be put 8 pcs electric intelligence feeder, the most can be put 16 pcs
Weight	700kg
Size	2600*760*1500mm
