• Model NO.：SR-08FGT
• Applicable Plug：Continuous,Loose
• Air Source：0.6-0.8MPa
• Transport Package：Plywood Case
• Specification：1733X1322X1890mm
• Trademark：Sinrad
• Origin：China
• HS Code：8479819000
• Production Capacity：10 Sets,Month

Specification:
Model: SR-08FGT

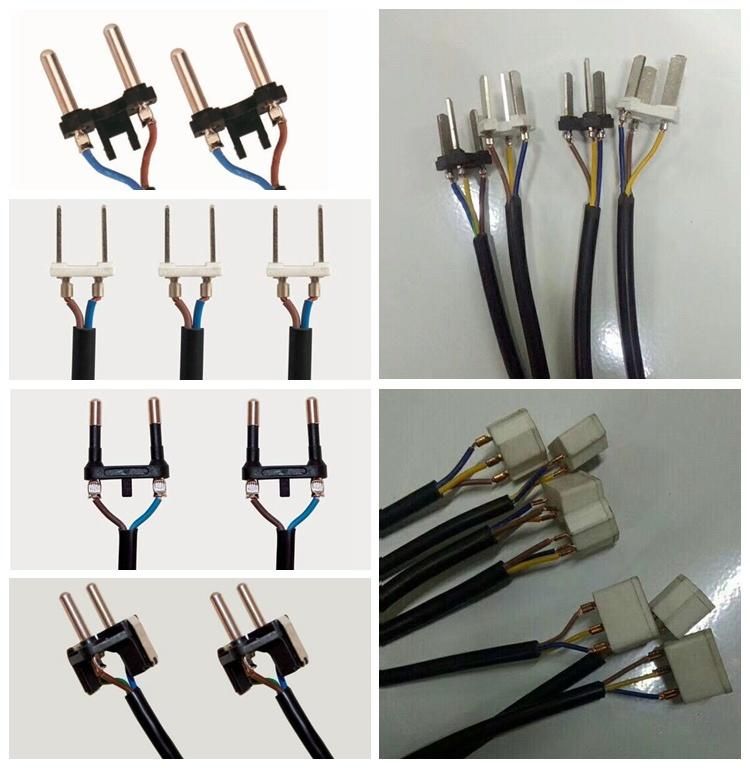

Applicable terminals: Chinese plug, French plug, Thai plug, American plug, European plug, etc. Support customized.
Crimping speed: 900-1400pcs/H
Power: 5.5kw
Voltage: 220V 50/60HZ
Air pressure: 0.6-0.8MPa
Machine size: 1733X1322X1890mm (excluding vibrating plate and pay-off stand)

 Features:

1, High efficiency: It can save 4-6 workers and improve production efficiency.
2, Accuracy: This machine uses the servo system to control the process of stripping the outer skin, stripping the core wire, polarity identification, and drag chain drive, and the equipment has high precision.
3, Simple: Fully automated production, fast speed, simple operation and convenient maintenance.
4, Security: Intelligent security protection.

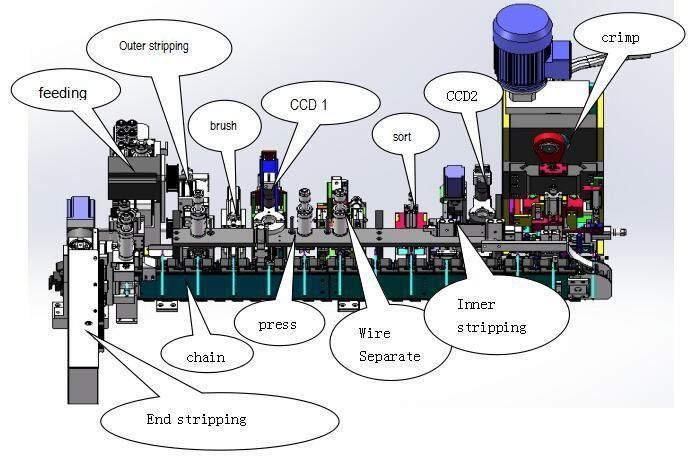

5, Process flow: automatic wire feeding → end stripping → front outer skin stripping → brush powder → separate wires → shaping → stripping inner wires → crimping terminal → taking out the product.

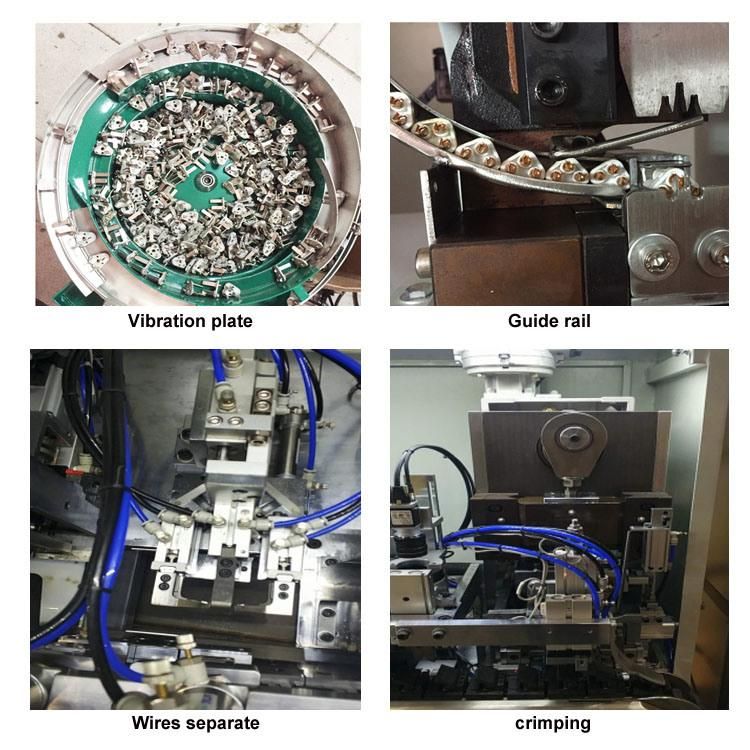

Pictures:



Contact:


 FAQ:

1 Price terms

The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.

2 Can I send samples to check the machine quality.

Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.

3 How to learn the machine?

1) Offer free technology learning support in our factory

2) Provide detail user manual with detail video illustration

3) Support engineer service at site if clients asking for

4 How about the lead time and delivery time of order?

Standard model, can be ship out within 3~7days after confirmed order and deposit.

Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

Company info:

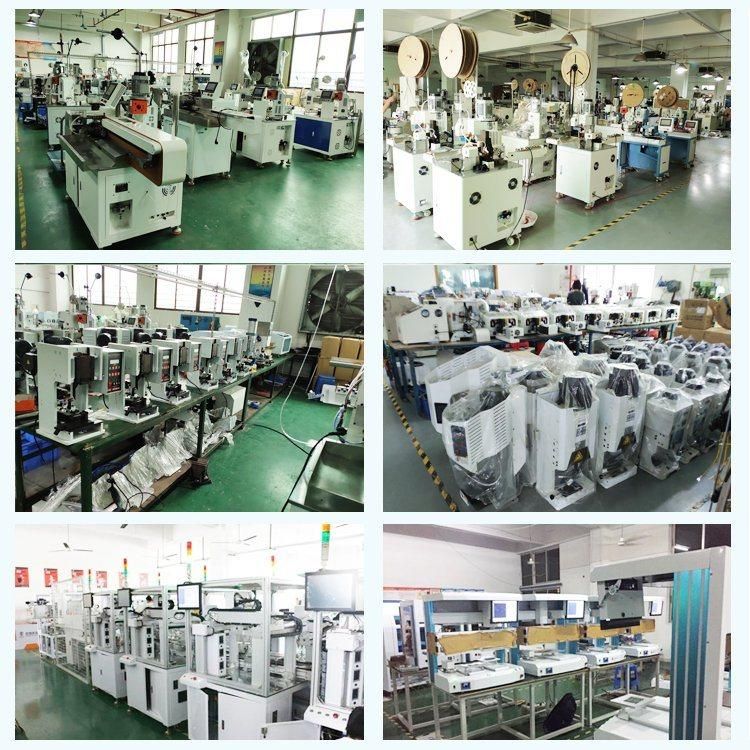

Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
