• Model NO.：JB-300S
• Certification：CCC, ISO, CE
• Warranty：12 Months
• Automatic Grade：Semiautomatic
• Type：Desktop Selective Soldering Machine
• Vision System：Vision System Correction Function
• Total Power：1.8kw
• Power Supply：Signal Phase220V 50Hz
• Function：PCBA Soldering
• Usage：LED, Power Supply, Driver, Charger
• Technology：SMT, Tht, DIP
• PCB Size：50X50-390X305mm
• PCB Loading：Manual
• Control System：Touch Screen + Handheld Programmer
• Motion Control：Mitsubishi Closed-Loop Servo Control
• Tin Bath Capacity：10kg
• Nozzle Number：1PC
• Temperature Control：Pid
• Temperature：Room Temp.-350 Degree
• Transport Package：Vacuum Packing and Wooden Packing
• Specification：L 735mm*W 800mm*H 730mm
• Trademark：jaguar
• Origin：Shenzhen
• HS Code：8515190000
• Production Capacity：100pieces,Month
• Package size per unit product：95.00cm * 100.00cm * 93.00cm
• Gross weight per unit product：500.000kg

Basic Info.

Model NO. JB-300S Certification CCC, ISO, CE Warranty 12 Months Automatic Grade Semiautomatic Type Desktop Selective Soldering Machine Vision System Vision System Correction Function Total Power 1.8kw Power Supply Signal Phase220V 50Hz Function PCBA Soldering Usage LED, Power Supply, Driver, Charger Technology SMT, Tht, DIP PCB Size 50X50-390X305mm PCB Loading Manual Control System Touch Screen + Handheld Programmer Motion Control Mitsubishi Closed-Loop Servo Control Tin Bath Capacity 10kg Nozzle Number 1PC Temperature Control Pid Temperature Room Temp.-350 Degree Transport Package Vacuum Packing and Wooden Packing Specification L 735mm*W 800mm*H 730mm Trademark jaguar Origin Shenzhen HS Code 8515190000 Production Capacity 100pieces/Month

Packaging & Delivery

Package size per unit product 95.00cm * 100.00cm * 93.00cm Gross weight per unit product 500.000kg

Product Description

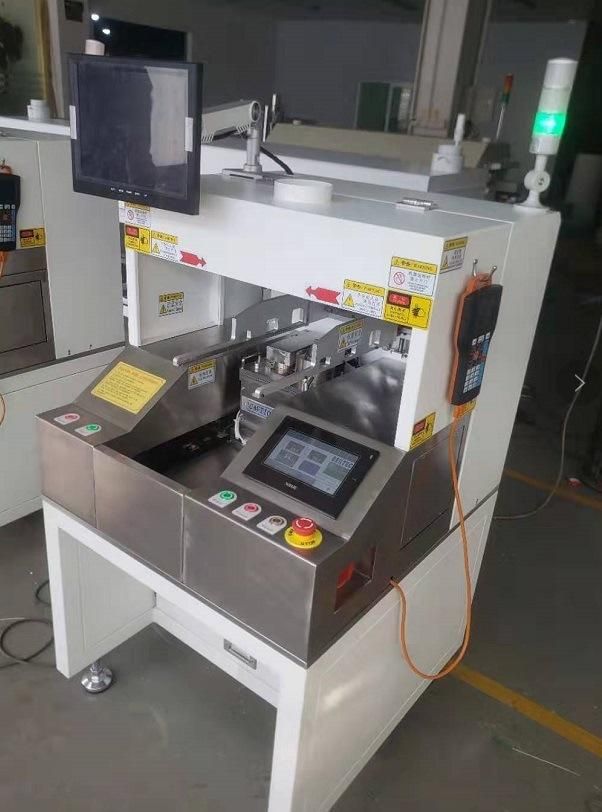

Desktop Modular Selective Wave Solder JB-300S

Introduction:
1.Programming

1. Same as sprayer, use programming camera, surveillance camera and handheld programmer to edit path, path start point, welding time, welding speed, moving speed, empty stroke speed can be set
2. Servo closed-loop control, path positioning accuracy is ±0.05;
3. Touch screen and PLC control, product count, various temperature parameters, peak height, etc. can be adjusted on the touch screen.

2.Welding mechanism

1. The same steel bottom plate is adopted, which is reliable, stable and phosphated on the surface.
2. The guide rail adopts silver guide rail, and the screw rod adopts TBI screw rod, which guarantees the quality.
3. The inner liner of the tin furnace is made of titanium alloy, and the external heating plate has uniform heat transfer.
4. Nitrogen online heating device, cut off air, reduce oxidation, and prevent PCB cold welding during welding.
5. The peaks are controlled by closed loop servo
6. Real-time display of welding process, monitor camera is connected with monitor to observe welding effect in real time

Specifications

Model	JB-300S
size	735Lmm x 800Kmm x730Gmm(without light)
Total Power	1.8KW
power	Signal phase220V 50HZ
Power inlet requirements:	1.5²Copper wire
Air supply	No need for compressed air
Nitrogen source requirements	1-2 cubic meters/hour, purity ≥99.998%
Nitrogen pressure requirements	1-3kg/cm²
Control System	Touch screen + handheld programmer
PCB size	min:50X50         max:390X305
PCB putting	manual
Motion axis	X, Y,Z
Motion control	Mitsubishi closed-loop servo control
positioning accuracy	+ / - 0.05 mm
Rack type	Steel floor
Tin bath capacity	10kg
Nozzle number	1pc
Tin temperature control	PID
temperature control	Touch screen+PLC
Melting time	40 Minutes (can be preheated regularly)
Max temperature	350 °C
Tin bath power	1.5KW
Nozzle	Tin mouth specifications: 4mm 6mm 8mm 10mm Wide nozzle specifications: specially made according to customer's welding process
Nozzle customization	yes
Tin mouth material	Imported high temperature steel
Standard tin mouth	Standard 4/furnace
Heating nitrogen	500W
Nitrogen PID control	0 - 350 C
Nitrogen consumption / tin nozzle	1.5---2m³/hour
Nitrogen purity	≥99.998%
Programming time	15min.
Equipped with programming camera	HD programming camera + lens + light source
Equipped with surveillance camera	Monitor welding quality in real time



our service:
1, our service tenet: fast, thoughtful and thorough
2, service goals: service quality to win the user satisfaction
3. the service efficiency: the warranty period or the warranty as equipment
failure, the supplier in the receipt of the notification, the maintenance personnel in one hour to respone.
4, service principle: product warranty period of 12 months, in the guarantee period the supplier will free maintenance and replacement of quality caused by  the damaged parts.

About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China, we focus on SMT and THT Soldering technology more than a dozen years.
We are certified national high-tech enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.

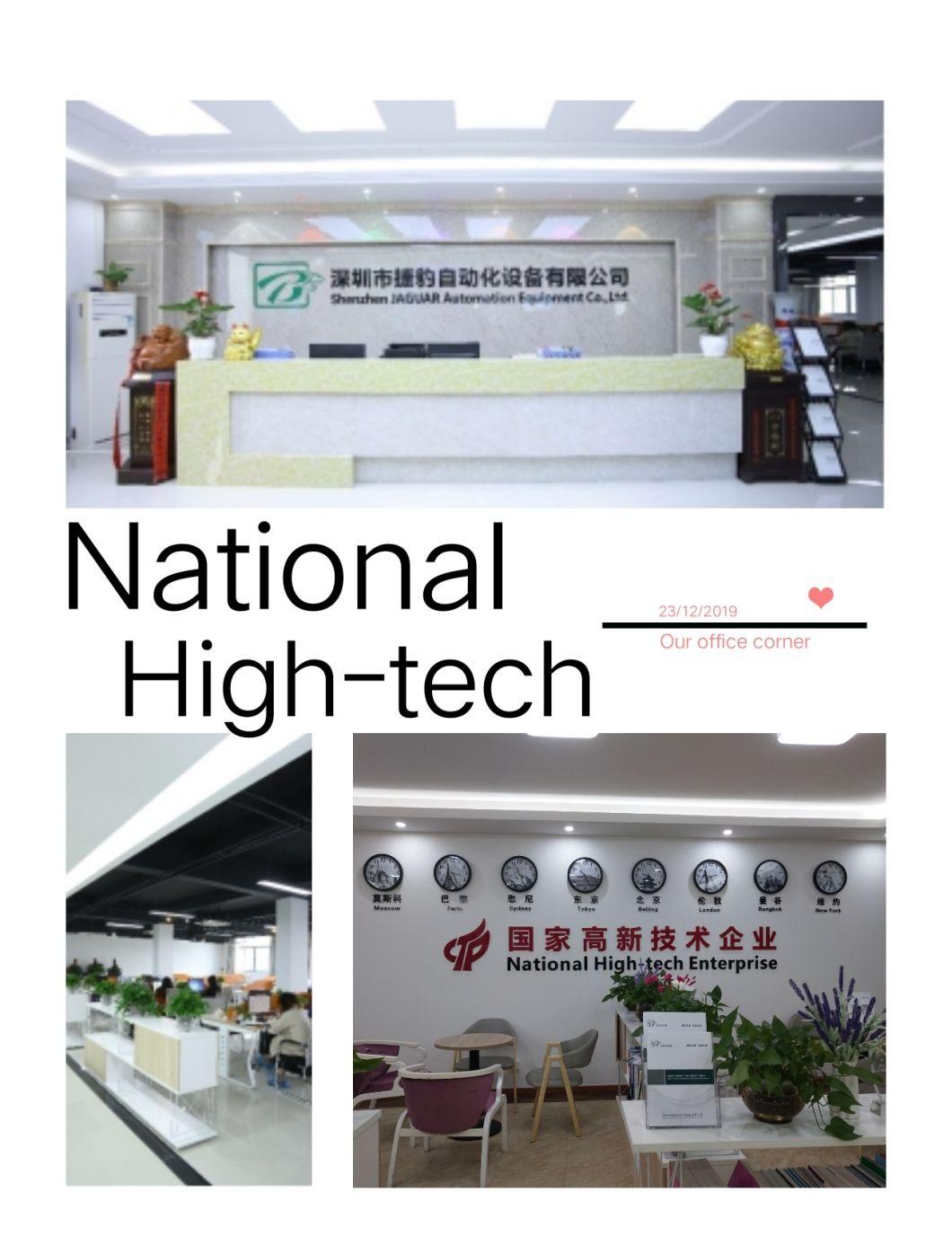

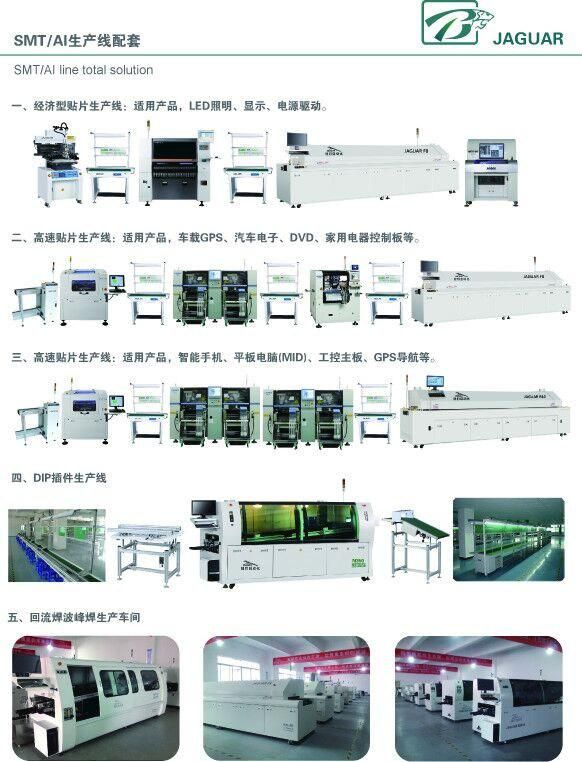

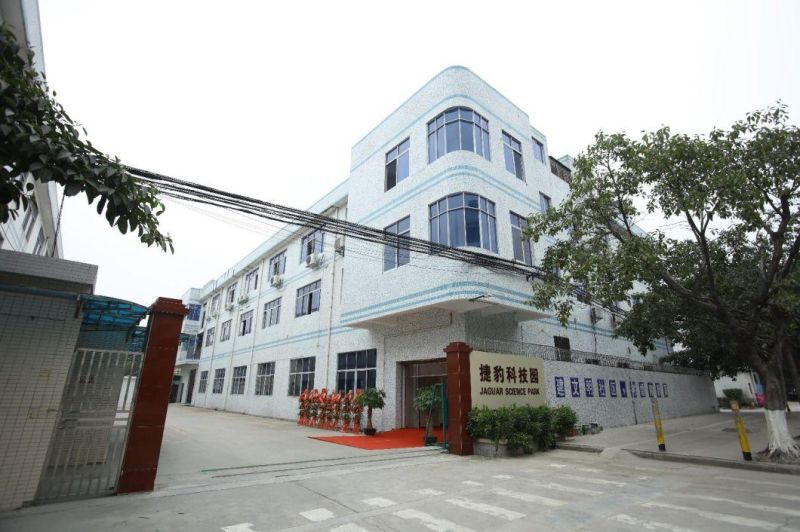

Our Factory
Shenzhen Jaguar Automation owns more than 12 years experience in automation equipment manufacturing,It's huge technical team owns more than 5-10 years of rich experience even in design and develop, or equipment manufacturing and process application technology.


Our production process, from raw material supply chain-warehouse management-mechanical assembly-electricity assembly-machine aging-macine function test-leave factory, the whole line  of production is according to ISO standard to operate, keep machine quality stable.

Please contact me if you need any machine!
