• Model NO.：WIND-8VW
• Specification：Middle Size
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-8VW Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

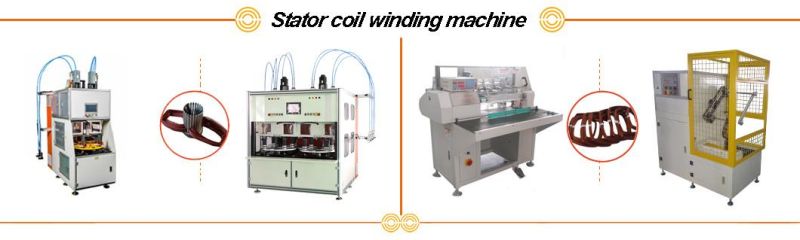

Motor Coil Winding Machine for Compressor Stator

This type of machine is suitable for 2 poles, 4 poles, 6 poles stator to do coil winding. It will directly wind coils into a winding form, easy for coil inserting process. After winding, coils should be unloaded manually.

(1) Specification

Wire diameter	0.2~1.0mm
Winding head	4
Station	8
Stack length	Max 70mm
Winding Speed	Max 3000r/min
Air pressure	Min 0.6Mpa
Power supply	380V  7KW
Weight	About 2300KG
Dimension	1900x1400x2200mm

(2) Feature
4 winding head 8 working station
Manual unloading coils after winding
Rotation and indexing controlled by servo system
No distinct vibration or noise during winding
Automatically stop if wire is run out
All winding parameter programmable on touch screen

(3) Application
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(4)Operation step
Thread wire into the machine
Connect the power and air source
Turn on the machine, and press "reset" button to reset the machine
Put the winding form on the indexing plate
Press "cut wire"
Press "start" button by two hands, machine will automatically wind the stator.
