BLDC Motor Straight Type Linear Stator Coil Winding Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：380V
  • Name：Linear Stator Coil Winding Machine
  • Max Winding Speed：500-3000rpm
  • Power：380V
  • Weight：400kg
  • Dimension：1000 X1300 X1500mm

Base Info

  • Model NO.：ND-SSW01
  • After-Sales Service：Overseas Service Center Available
  • Machine Color：Ral9010 or as Per Customer Requirement
  • Max Stato Rod：260mm
  • Max Stack Height：50mm
  • Automatic：Automatic
  • Transport Package：Wooden Case
  • Specification：ISO9001
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description

Prouduction name:Linear Stator coil winding machineSpindle No.:4 spindlesWinding speed:500-3000 R.P.MStator O.D.:60-260mmStator stack length:6-50mmWire dia.:0.5-1.3mmVoltage:380V 50/60HzDimension:1000*1300*1500mmWeight:≈400kg

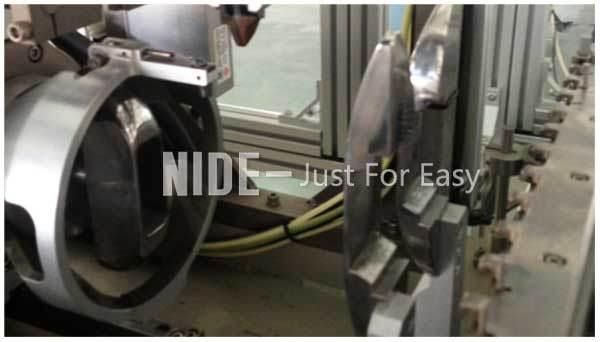

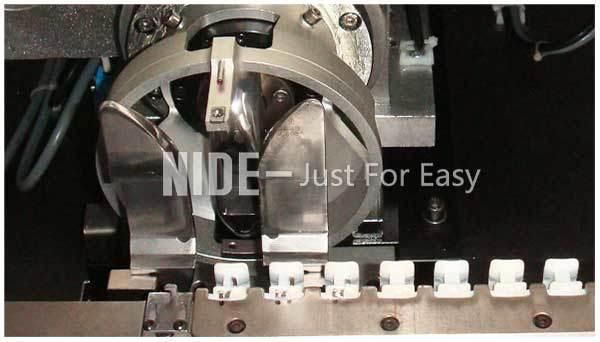

The automatic linear coil winding machine working show

BLDC Motor Straight Type Linear Stator Coil Winding MachineBLDC Motor Straight Type Linear Stator Coil Winding Machine

BLDC Motor Straight Type Linear Stator Coil Winding Machine
BLDC Motor Straight Type Linear Stator Coil Winding MachineBLDC Motor Straight Type Linear Stator Coil Winding MachineBLDC Motor Straight Type Linear Stator Coil Winding Machine
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

BLDC Motor Straight Type Linear Stator Coil Winding Machine
BLDC Motor Straight Type Linear Stator Coil Winding Machine
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
