90 Wire and Cable Jacket Sheath Extrusion Line/Power Wire Extruder Equipment

Dongguan Newtopp Electrical Machinery Co., Ltd.
  • Driven Type：Electric
  • Condition：New
  • Certification：CCC, UL, RoHS, ISO, CE
  • Warranty：12 Months
  • Screw：Single-Screw
  • Transport Package：Standard Shipping Packing

Base Info

  • Model NO.：XJ90
  • Specification：XJ90
  • Trademark：NEWTOPP
  • Origin：China
  • HS Code：8479400000
  • Production Capacity：10 Sets,Month

Description

Basic Info.

Model NO. XJ90 Specification XJ90 Trademark NEWTOPP Origin China HS Code 8479400000 Production Capacity 10 Sets/Month

Product Description

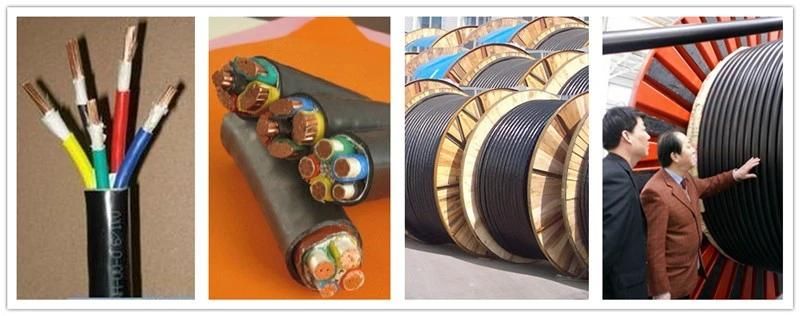

Application field:
Used for power wire,computer wire,data wire and high frequency wire outside jacket insulation extrusion.

90 Wire and Cable Jacket Sheath Extrusion Line/Power Wire Extruder Equipment



Products feature:
1.Host machine:Choose the import cross-head device from Europe or the domestic high-quality double-layer cross-head device, realize the inner and outer layer of precision.
2.High output:Optimizing screw design, screw durable,non cohesive gel,non take off a chrome,color change quickly,high wire speed,high output.
3.Temperature control precise:adopted SCR power control machine with imported high quality temperature control table,the machine temperature controlled within+/-1 degree C.
4.High quality:Extrusion concentricity over 90%,OD tolerance:+/-0.003mm
5.Electrical controller: Imported frequency converter +PLC touch screen control.


90 Wire and Cable Jacket Sheath Extrusion Line/Power Wire Extruder Equipment

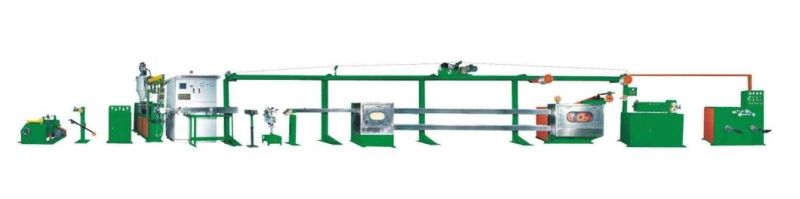

Machine parts:
1.pay-off rack (active or passive can choice)
2.straightener platform
3.buffer rack
4.Sealing type dusting machine
5.temperature control electrical cabinet
6. main extruder
7. front moving water tank
8.Power ink printer
9.Single cooling water tank
10.Horizontal accumulate stand
11.Dual wheel capstan
12.Dual-axis take-up device
13.Outside diameter measuring and controlling instrument
14.Power frequency spark machine

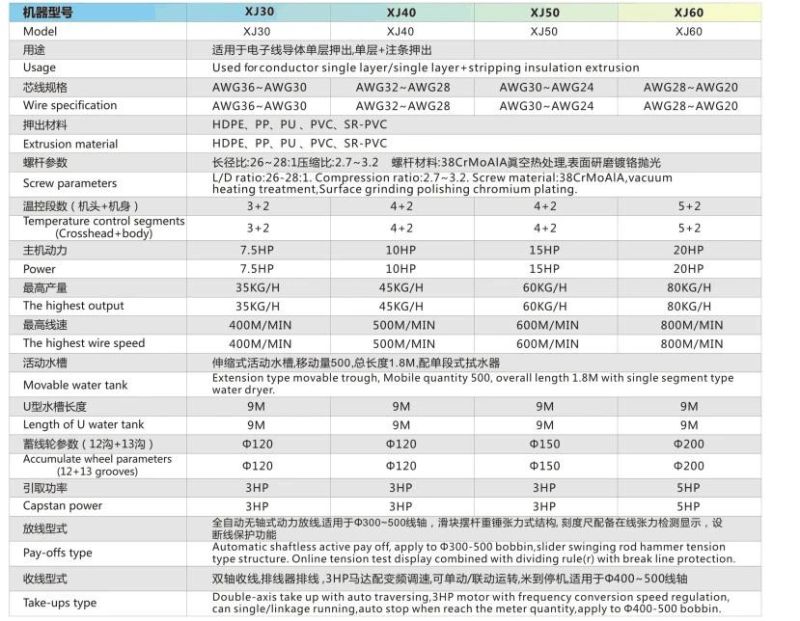

Technical parameters
90 Wire and Cable Jacket Sheath Extrusion Line/Power Wire Extruder Equipment


Our Service

Pre-Sales Service                                      After-Sales Service

* Inquiry and consulting support.              * Training how to install the machine,  and how to use the machine.
* Customized design support.                   * Engineers available to service machinery overseas.
* View our Factory.

About us

90 Wire and Cable Jacket Sheath Extrusion Line/Power Wire Extruder Equipment
Newtopp electrical machinery Co., Ltd. is anational high&new technology enterprise. It located in Humen Town, Dongguan city, and through ISO9001 quality certification and IS014001 environmental management system certification.
Our company is professional in design and manufacture high-end wire and cable equipment, mainly products included: the copper bunching machine, teflon extrusion machine, insulation extrusion machine, chemical foaming extrusion machine, physical foaming extrusion machine, jacket sheath extrusion machine, planetary type cage twisting/stranding machine, Numerical control type double layers / multi layer taping machine, Cantilever type single twisting/stranding machine, lan cable back-twist pair twisting/stranding machine etc.

Trade exhibition
90 Wire and Cable Jacket Sheath Extrusion Line/Power Wire Extruder Equipment

Certification and Patent

90 Wire and Cable Jacket Sheath Extrusion Line/Power Wire Extruder Equipment
